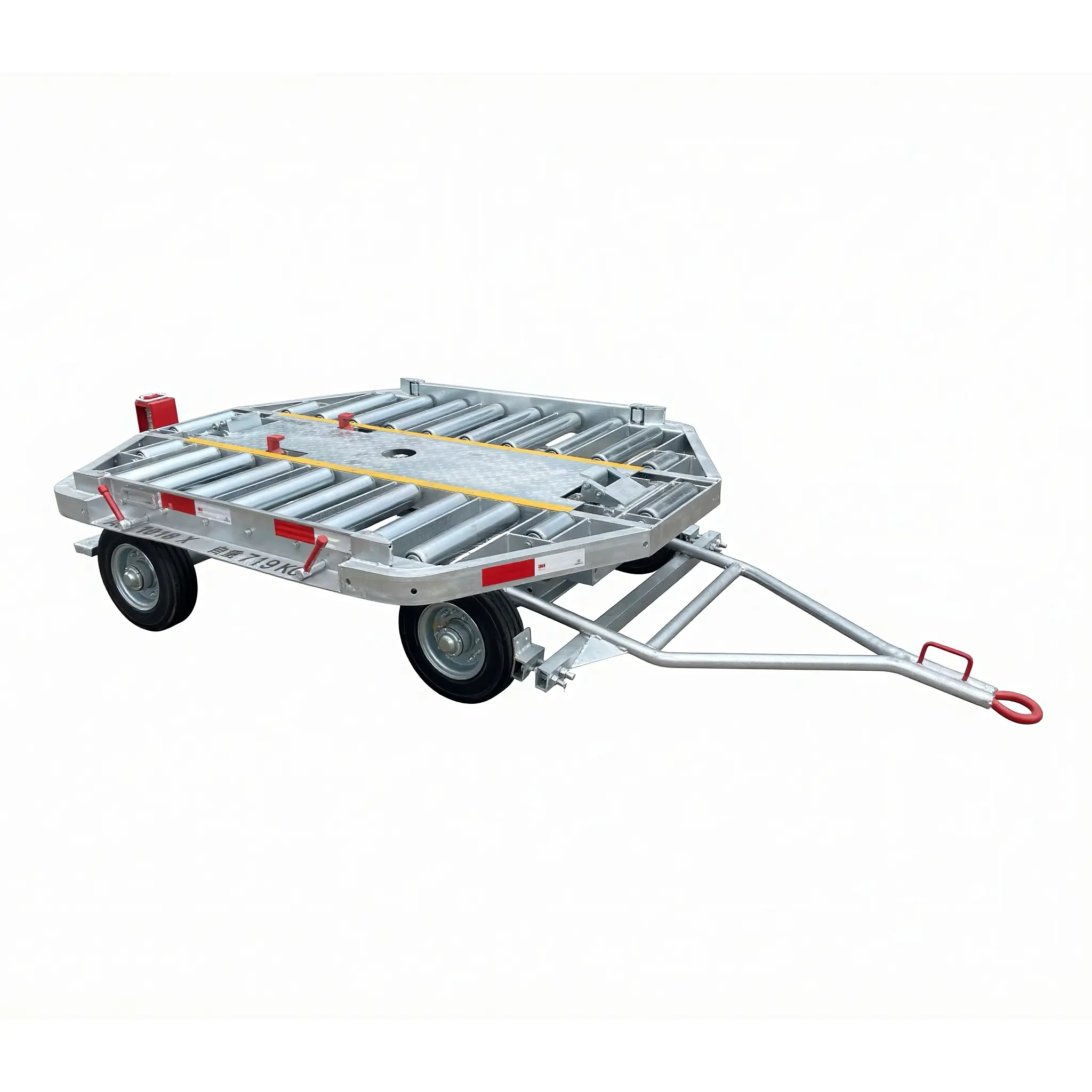

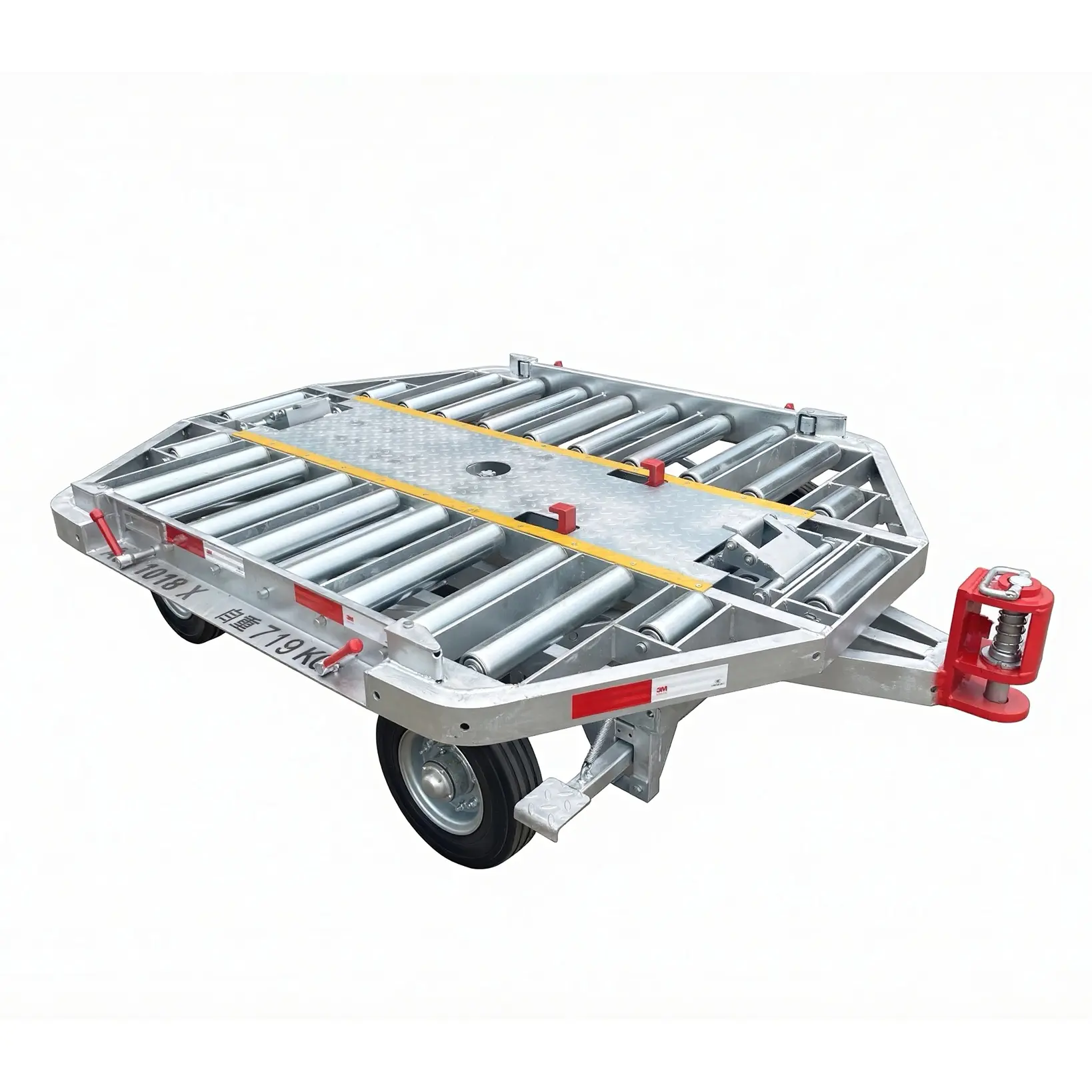

Wholesale New LD3 Container Dolly Suppliers, Factory

The main frame of the trailer is welded by standard 8# channel steel. The welding is full welded and durable. The rotary platform of the trailer can be rotated at 360 degrees, and the 90 degree position is self stopping, and the operation is convenient.

The tow bar has multiple vehicle connections and droop after automatic braking, lifting the three functions of tow bar can also brake.

Send Inquiry

Product Description

Chassis Introduction

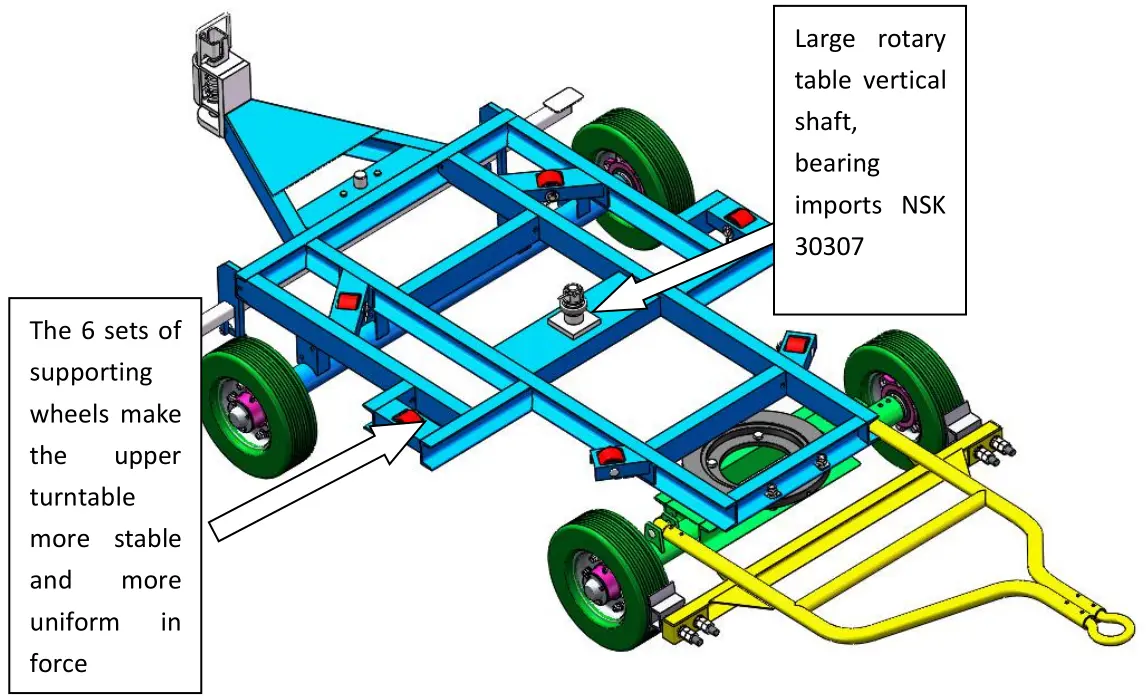

The chassis is welded by standard 8# channel steel and full welding is used.

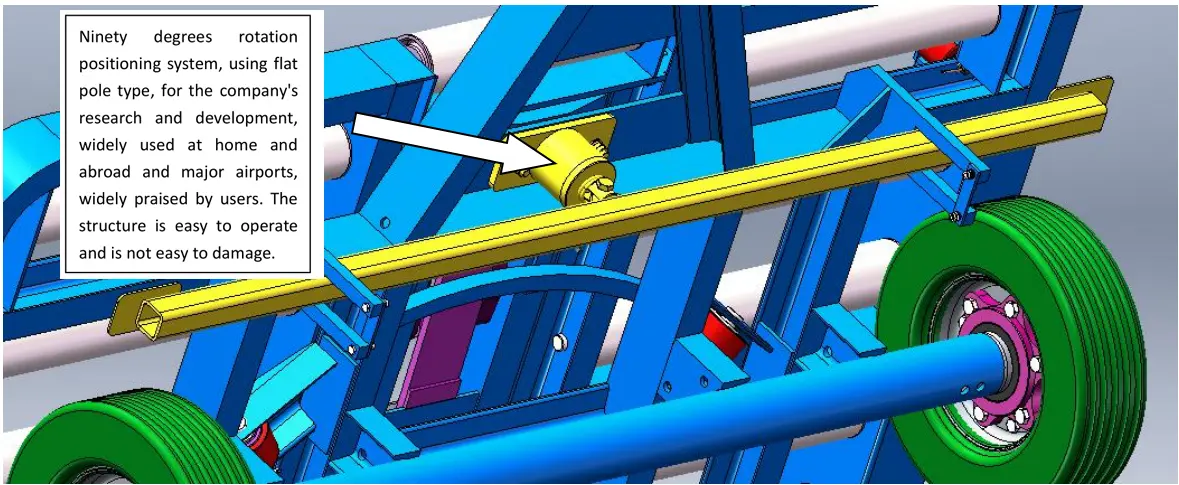

The frame is equipped with a special turntable structure. It is composed of six guide wheels, rotating rings, central axes, central bearing blocks and bearings.

Frequently Asked Questions

Q: What is the main material used for the chassis? A: The chassis is constructed using standard 8# channel steel for maximum durability.

Q: What kind of welding technique is applied to the frame? A: Full welding is used throughout the structure to ensure high strength and stability.

Q: What components are included in the turntable structure? A: It consists of six guide wheels, rotating rings, central axes, central bearing blocks, and high-quality bearings.

Q: Is the turntable structure specialized for specific uses? A: Yes, the frame is equipped with a special turntable design to facilitate smooth operation and rotation.

Q: How many guide wheels does the chassis system use? A: The system is designed with six precision guide wheels for balanced movement.

Q: Does the chassis design ensure long-term reliability? A: Yes, the combination of industrial-grade channel steel and a robust bearing system ensures a long service life.
