China 7T Pallet dolly Manufacturer, Factory

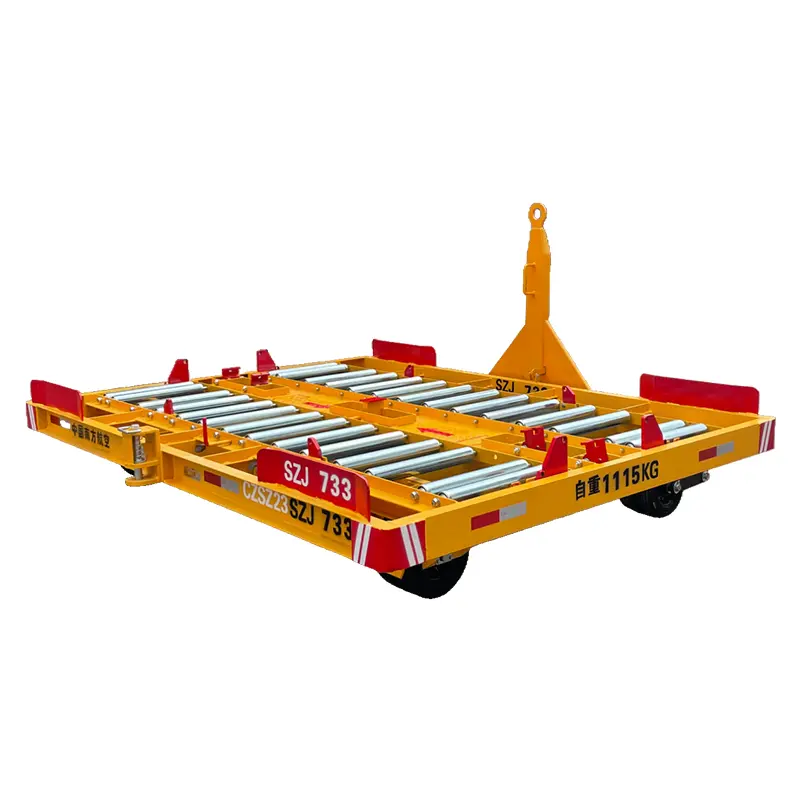

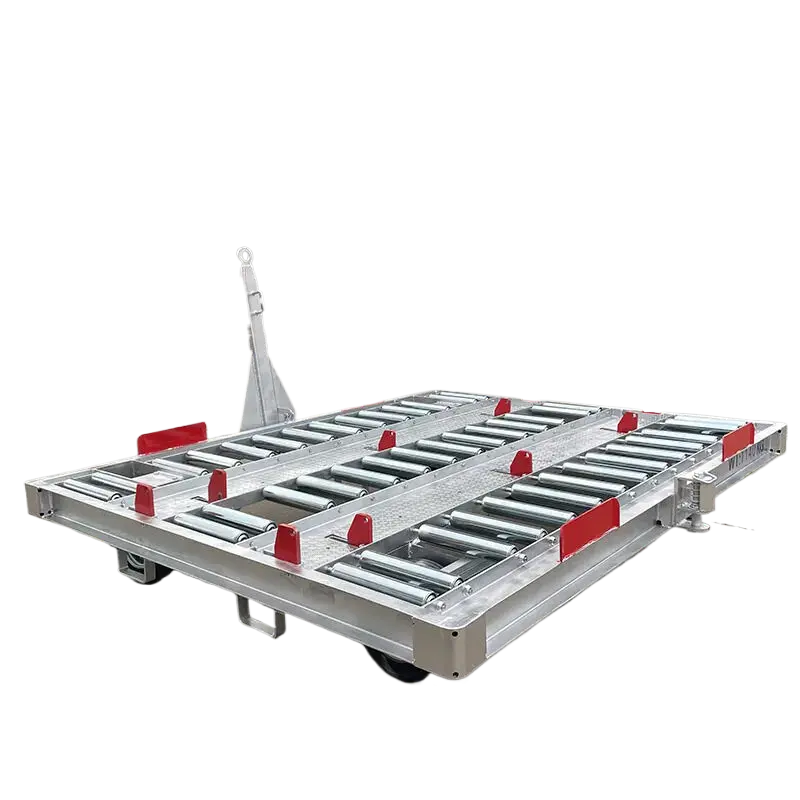

The Pallet Dolly is equipped with fixed guide plates on both sides and three sets of movable baffles at the ends and middle, with the end baffles including fall prevention insurance. This design makes it suitable for various pallets (P6P, P1P, PQA) and containers (LD1, LD2). Additionally, it features right and left fork parking spaces to facilitate easy towing by forklift trucks. This versatile and robust solution is designed for efficient and safe transportation of various pallets and containers, meeting the demanding needs of modern logistics and airport operations.

Technical parameter	Size（LWH mm）：	4662×3400×625
	Platform（LWH mm）：	3400×2660×508-518
	Weight	≥1050Kg
	Loading weight	7000Kg
	Turning Angle	≥25
	Mix turning radius	≤4500mm
	Max speed	25km/h
	Wheel base	1850mm

Send Inquiry

Product Description

CHARACTER

CHIDGE

Solid Rubber Tyre: Designed with high-quality solid rubber tyres to ensure a significantly longer service life.

Versatile Loading: Equipped with fixed limited guide plates and movable baffles. Compatible with P6P, P1P, PQA pallets, or LD1.2, LD2.2 containers.

Enhanced Guiding: Four fixed baffles in the front and back reinforce guiding to prevent jamming during loading.

Self-Locking Device: The tail features a self-locking hook to prevent decoupling, ensuring smooth train connection.

Efficient Roller System: Features two rows of 28 galvanized roller drives with a middle decorative walkway for easy operation.

Dual-Function Mop: The mop serves dual purposes for multi-vehicle connection and braking.

Forklift Friendly: Includes specifically designed right and left fork parking spaces for easy towing card use.

Frequently Asked Questions

What types of pallets and containers can this trailer handle?

The trailer is designed to accommodate P6P, P1P, and PQA pallets, as well as LD1.2 and LD2.2 containers.

How does the trailer prevent cargo jamming?

It features four fixed baffles located at the front and back which reinforce the guiding function, preventing goods from being jammed even if the loading direction is slightly improper.

What are the benefits of the tyre design?

The trailer uses solid rubber tyres, which provide a much longer life span compared to standard pneumatic tyres.

Is the trailer safe for multi-vehicle connection?

Yes, the tail is equipped with a self-locking hook device to prevent decoupling, and the mop includes a brake function for added safety during transport.

What facilitates the ease of manual operation on the trailer?

There is a decorative walkway located in the middle of the two rows of 28 galvanized rollers, allowing operators to move safely and easily.
