China Pallet Dolly Manufacturer, Suppliers

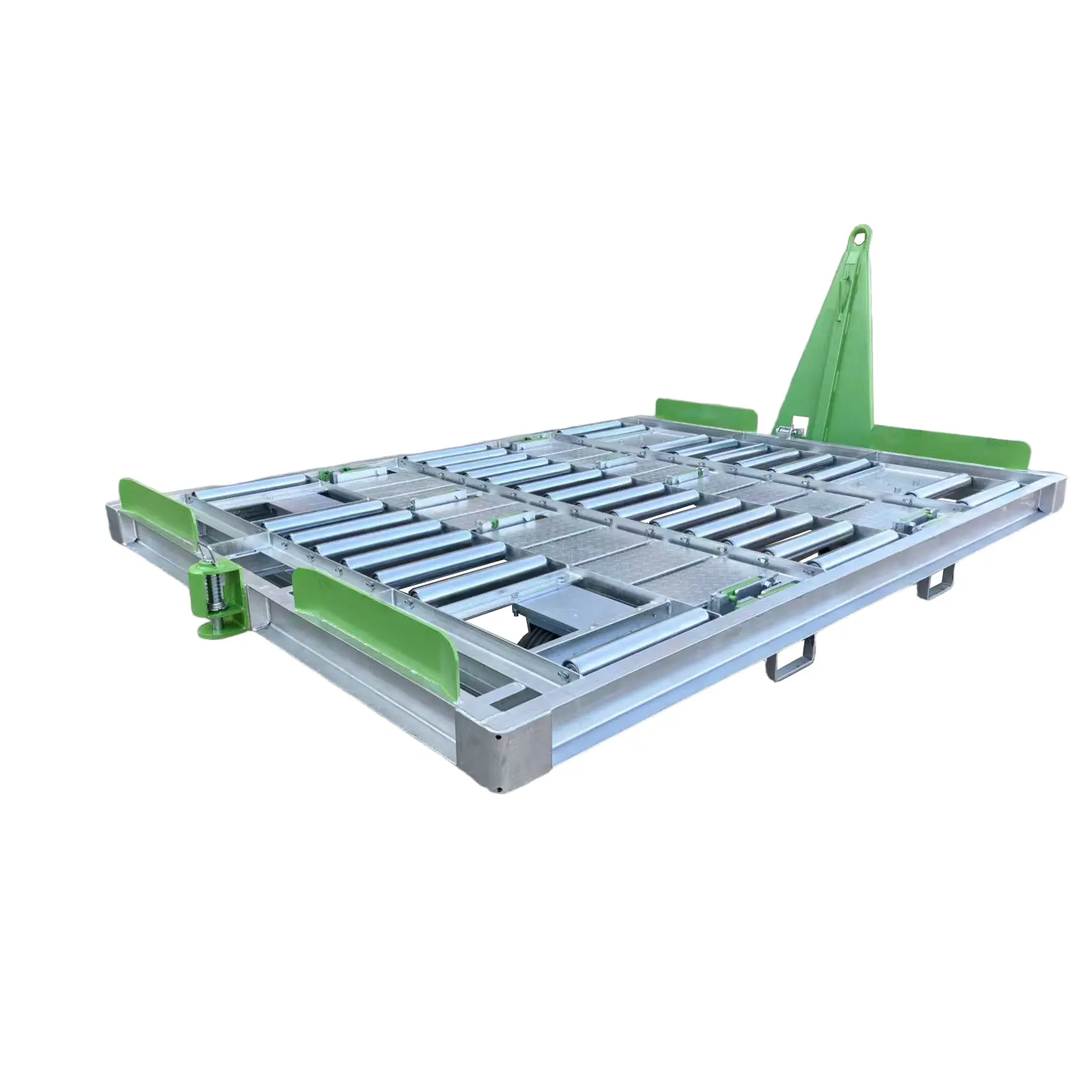

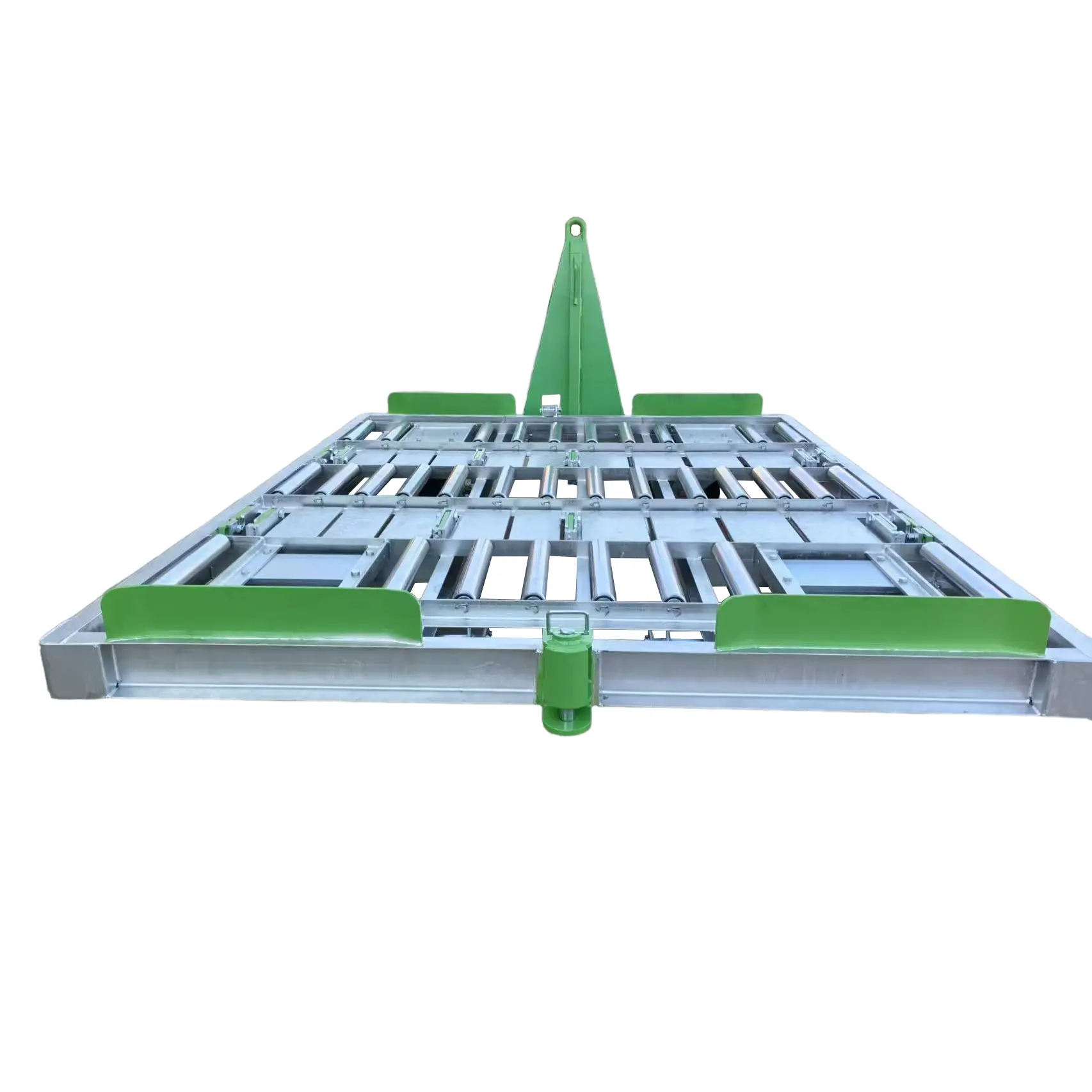

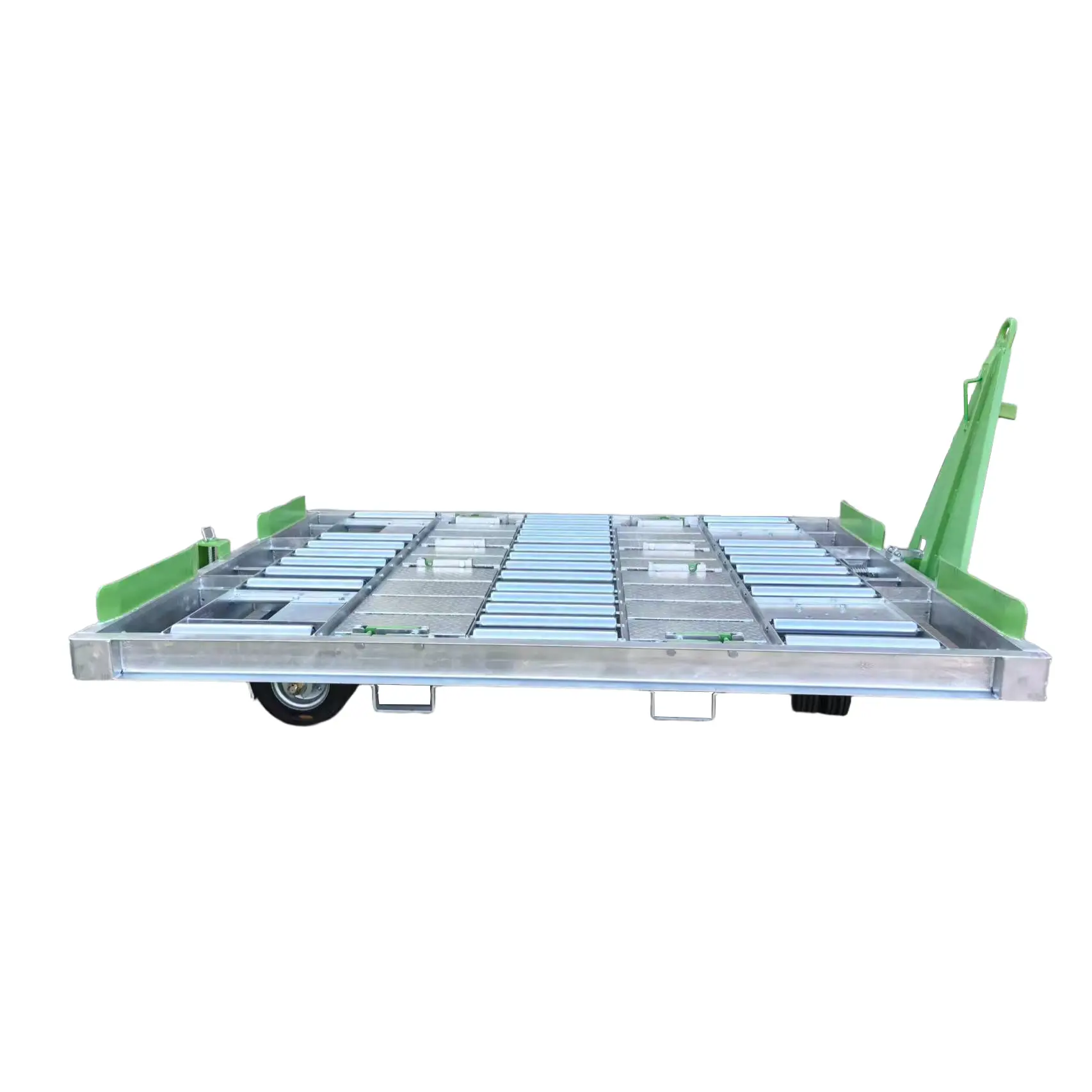

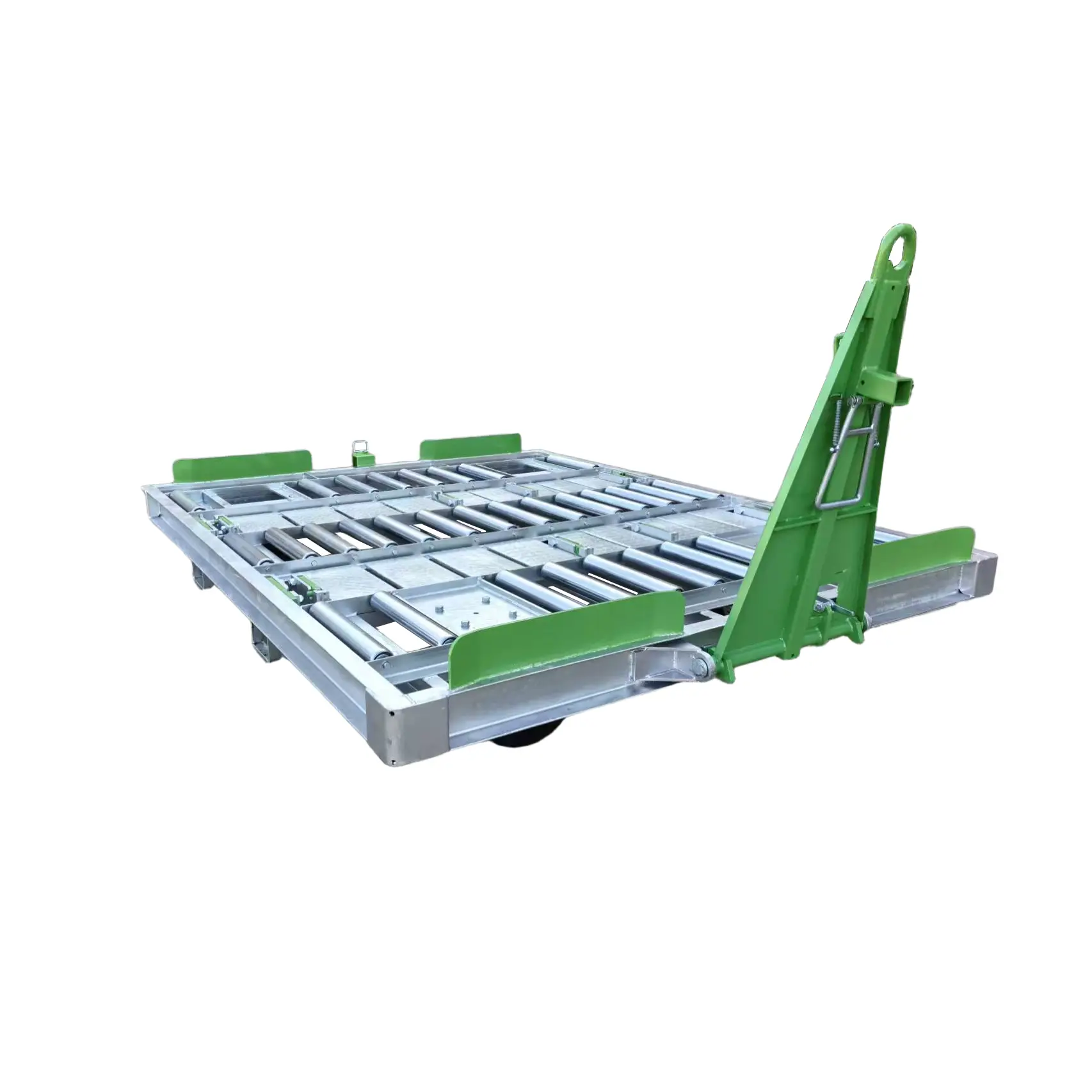

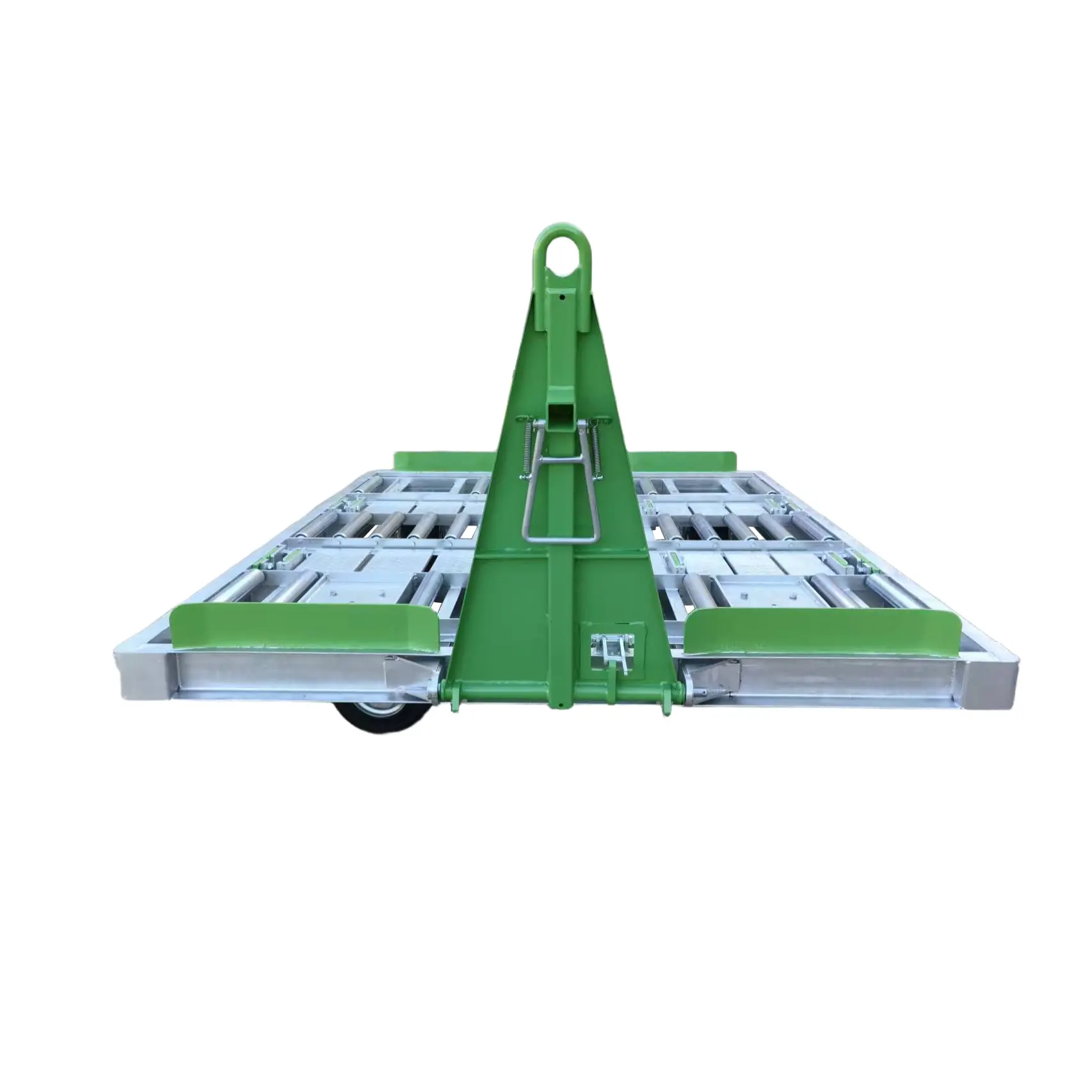

The Pallet Dolly is equipped with fixed guide plates on both sides and three sets of movable baffles at the ends and middle, with the end baffles including fall prevention insurance. This design makes it suitable for various pallets (P6P, P1P, PQA) and containers (LD1, LD2). Additionally, it features right and left fork parking spaces to facilitate easy towing by forklift trucks. This versatile and robust solution is designed for efficient and safe transportation of various pallets and containers, meeting the demanding needs of modern logistics and airport operations.

Technical parameter	Size（LWH mm）：	4662×3400×625
	Platform（LWH mm）：	3400×2660×508-518
	Weight	≥1050Kg
	Loading weight	7000Kg
	Turning Angle	≥25
	Mix turning radius	≤4500mm
	Max speed	25km/h
	Wheel base	1850mm

Send Inquiry

Product Description

CHARACTER CHIDGE

Solid rubber tyre for longer life.

Loading flexibility: Accommodates pallet and container sizes with fixed limited guide plates, movable baffles with fall insurance for P6P, P1P, PQA pallets, or LD1.2, LD2.2 containers.

Reinforced guiding function: Four fixed baffles prevent jamming during loading if direction is slightly improper.

Safety locking: Tail equipped with self-locking hook device to prevent decoupling and ensure smooth train connection.

Galvanized roller system: Two rows of 28 drives with a central decorative walkway for easy operational access.

Dual-function mop: Supports both multi-vehicle connection and braking system.

Forklift compatible: Designed with left and right fork parking spaces for efficient towing card use.

Frequently Asked Questions

What types of cargo units can this trailer handle?

The trailer is highly versatile, capable of loading P6P, P1P, and PQA pallets, as well as LD1.2 and LD2.2 containers, thanks to its movable baffles and adjustable guide plates.

How does the trailer ensure safety during transit?

It features a tail self-locking hook device to prevent accidental decoupling and a dual-function mop that acts as both a connector and a brake.

What makes the loading process smooth and efficient?

The inclusion of two rows of 28 galvanized roller drives and reinforced fixed baffles ensures that goods are guided correctly and move easily without jamming.

Is the trailer compatible with standard forklifts?

Yes, the design specifically includes designated right and left fork parking spaces to facilitate the quick use of forklift truck towing cards.

What is the benefit of the solid rubber tires?

Solid rubber tires are chosen for their extreme durability and resistance to punctures, ensuring a significantly longer service life in heavy-duty environments.

How are the baffles designed for cargo security?

The trailer includes movable baffles at both ends and the middle, equipped with fall insurance to keep containers and pallets securely in place during movement.
