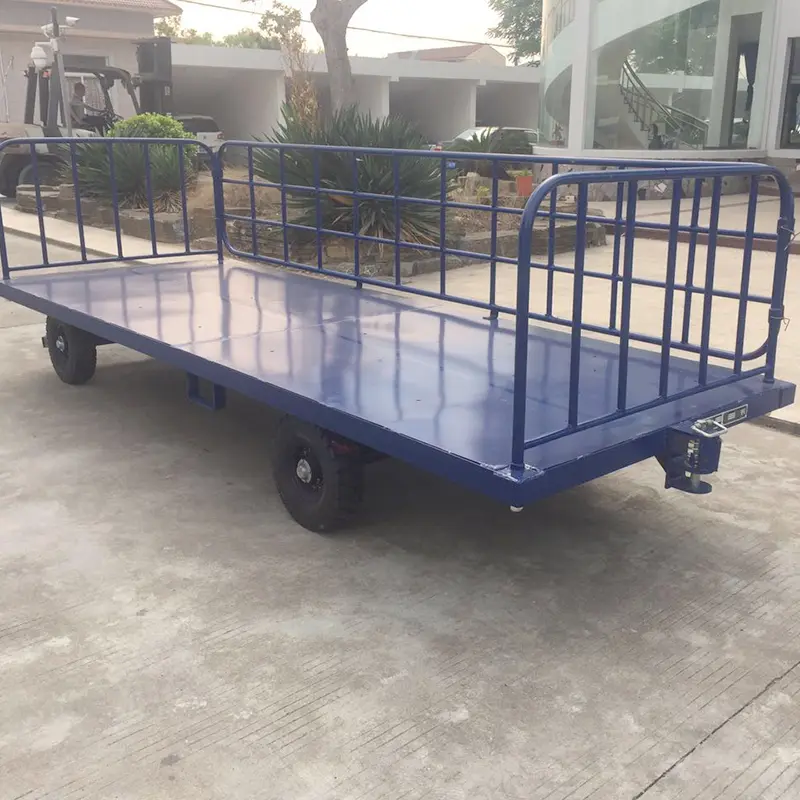

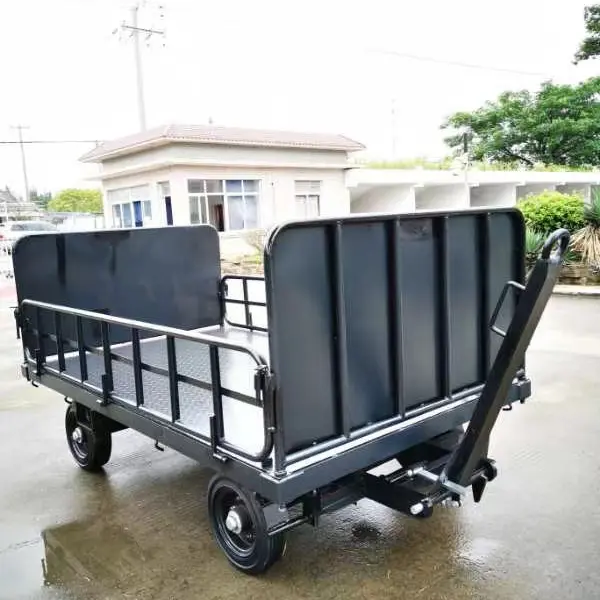

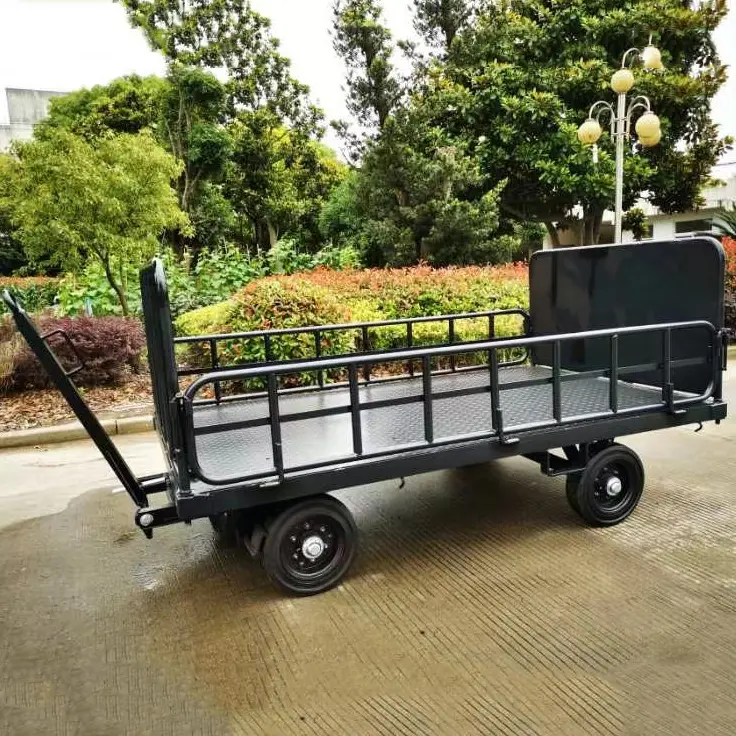

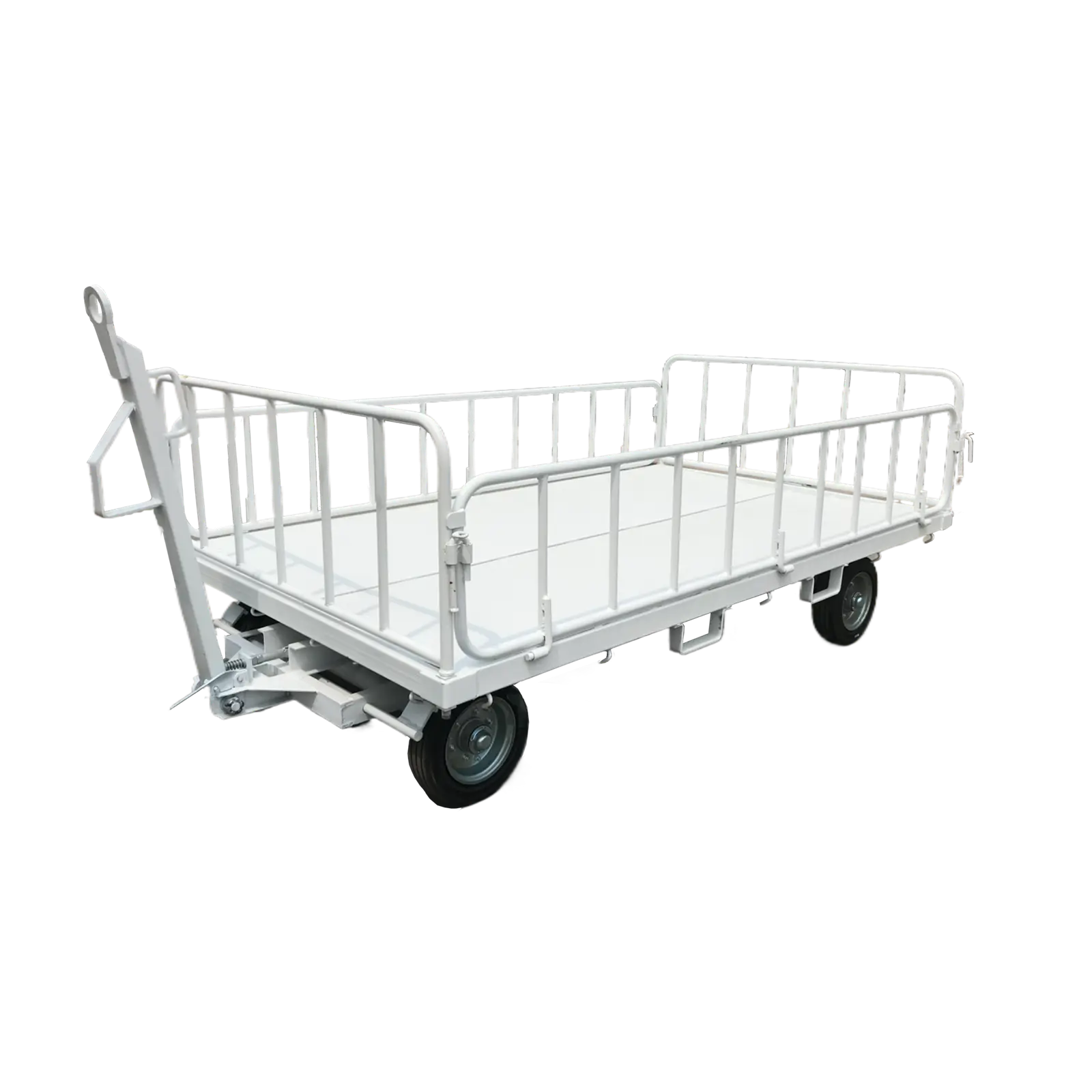

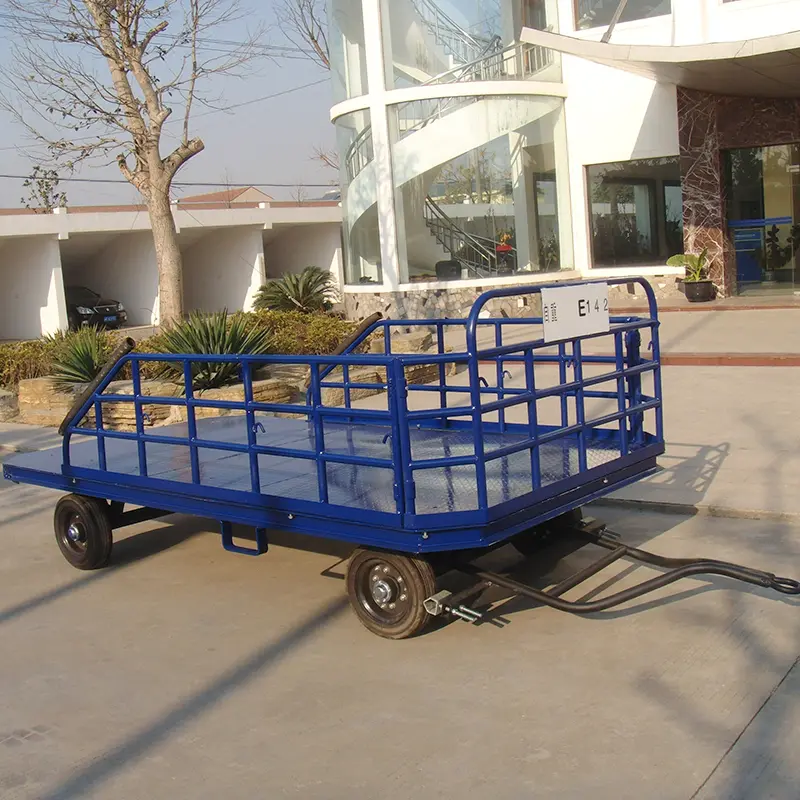

China Baggage Cart Supplier, Factory

The baggage cart made for use in airport areas with hard asphalt or concrete surface, to transport passenger luggage, oversized bags, cardboard boxes or suitcases from passenger terminals to aircraff plattorms and vice versa.

Send Inquiry

Product Description

Product Specifications

Product: Four rails baggage cart
Parameter	Material
Size: 4247 × 1500 × 1360mm	Body frame: 8# national standard channel steel and 3 mm thick pattern steel plate
Platform size: 3000 × 1500 × 560mm	Tire: 16*5-9 solid rubber tire
Platform height: 560mm	Drawbar: Φ42 × 5mm seamless steel pipe
Speed: 25km/h	Fence: Φ32 × 2.5mm seamless steel pipe
Loading weight: 3000kg	Front and rear axles: Φ76 × 5mm seamless steel pipe
Weight: 550kg	Hook: 20mm steel plate; Pin Φ35mm Round steel

Frequently Asked Questions

What is the maximum load capacity of the Four Rails Baggage Cart?

The baggage cart is designed for heavy-duty use with a maximum loading weight capacity of 3000kg.

What materials are used for the main body construction?

The frame is constructed using 8# national standard channel steel combined with a 3mm thick pattern steel plate for enhanced durability.

What type of tires are fitted on this baggage cart?

It is equipped with 16*5-9 solid rubber tires, which provide excellent stability and require low maintenance for airport or industrial environments.

What is the recommended maximum operating speed?

For safe operation and longevity of the components, the maximum recommended speed is 25km/h.

Are the fences and axles made of high-strength materials?

Yes, both the fences and the front/rear axles are manufactured using high-quality seamless steel pipes (Φ32mm and Φ76mm respectively) to ensure structural integrity.

What are the dimensions of the loading platform?

The platform dimensions are 3000mm in length and 1500mm in width, with a platform height of 560mm from the ground.
