Custom 7T castle pallet dolly Suppliers, Factories

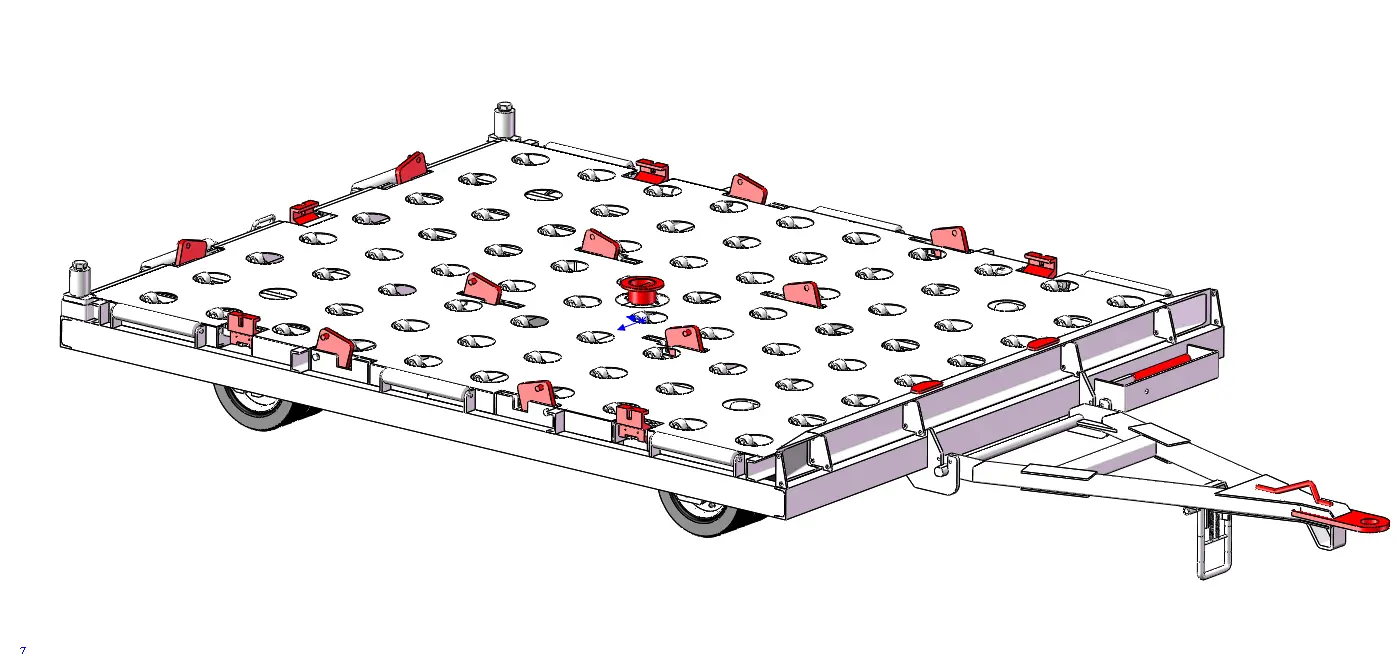

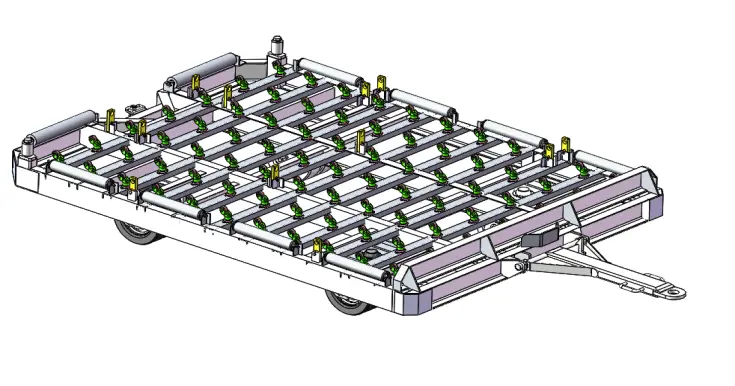

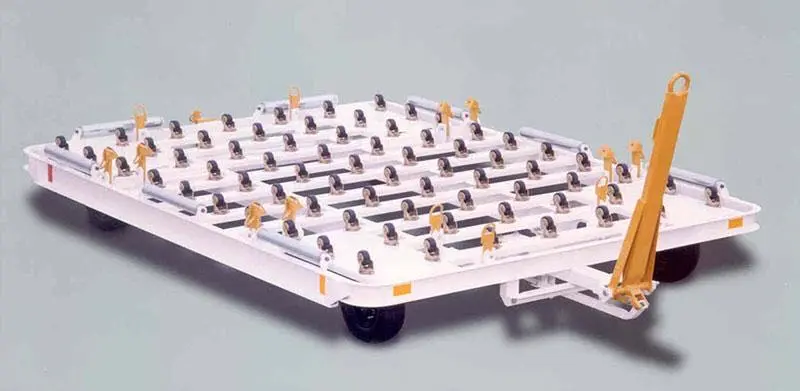

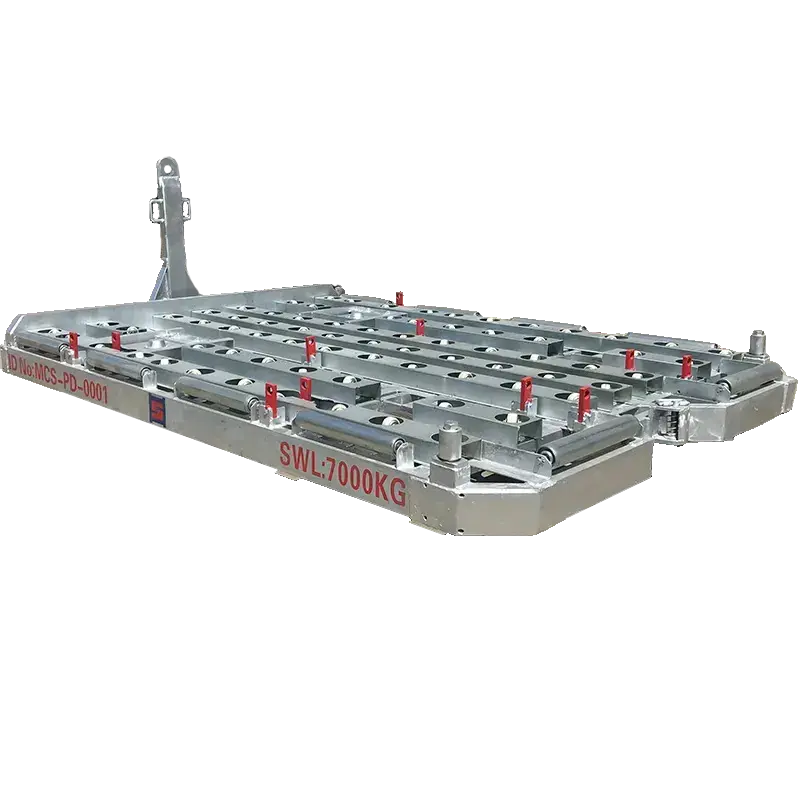

7T castle pallet dolly

Loading: according to the specification and size of the container board, the trailer is equipped with fixed limit guide plates on both sides and 10 sets of movable baffles at both ends and in the middle. The baffles can be loaded with P1P, P2P, P6P, FQA container boards, LD7, LD9 and AMK containers.

Send Inquiry

Product Description

Product Parameters

Loading Type	Side loading
Compatibility	Suits for PMC, P1P, AKE, LD2, DQF containers.
Outside Size	4070 × 2640 × 616 mm
Platform Size	3400 × 2610 × 508-518 mm
Curb Weight	≤ 1200 Kg
Loading Capacity	7000 Kg
Min Turning Radius	≤ 4500 mm
Max Speed	30 km/h

Material & Construction

Component	Material Specification
Body Frame	Standard 16# channel steel (Masteel production)
Tires	Front & Rear: 400-8 super wear-resistant solid rubber tires
Towbar	150 x 75 x 6 rectangular tube
Rollers	Φ76 × 3.25 mm seamless steel pipe (42 galvanizing rollers)
Plate	3mm pattern steel plate
Hook	20mm steel plate with Φ38mm round steel bolt
Brake Pads	10mm steel plate

Key Characters

🔵

The tires are super wear-resistant solid core tires ensuring an exceptionally long service life.

🔵

Equipped with fixed limit guide plates and 10 sets of movable baffles for P1P, P2P, P6P, FQA, LD7, LD9, and AMK containers.

🔵

Enhanced guide function on four fixed baffles to prevent jams during loading due to minor directional misalignment.

🔵

Tail is equipped with a self-locking hook device to prevent uncoupling, ensuring smooth train connection.

🔵

Features two rows of 42 galvanizing rollers for transmission and a patterned middle corridor for safe operation.

🔵

Multi-functional towbar (mop) provides both vehicle connection and integrated braking functions.

🔵

Specific left and right fork parking spaces designed for easy trailer movement by forklift trucks.

Frequently Asked Questions

1. What types of containers can this dolly handle?

This dolly is highly versatile and compatible with PMC, P1P, AKE, LD2, DQF, P2P, P6P, FQA, LD7, LD9, and AMK containers.

2. What is the maximum loading capacity?

The dolly is designed for heavy-duty airport operations with a maximum loading weight of 7,000 kg.

3. Does the dolly come with a braking system?

Yes, the towbar (mop) features dual functions, acting as both a connection hook and a braking mechanism for safety.

4. How durable are the tires for long-term use?

We use super wear-resistant 400-8 solid core rubber tires specifically designed for long service life in rigorous environments.

5. Can this trailer be moved by a forklift?

Yes, the design includes dedicated fork parking spaces on both the left and right sides to facilitate easy movement by forklift trucks.

6. What safety features prevent uncoupling during transport?

The tail of each dolly is equipped with a self-locking hook device, which prevents the rear car from accidentally uncoupling while the train is in motion.
