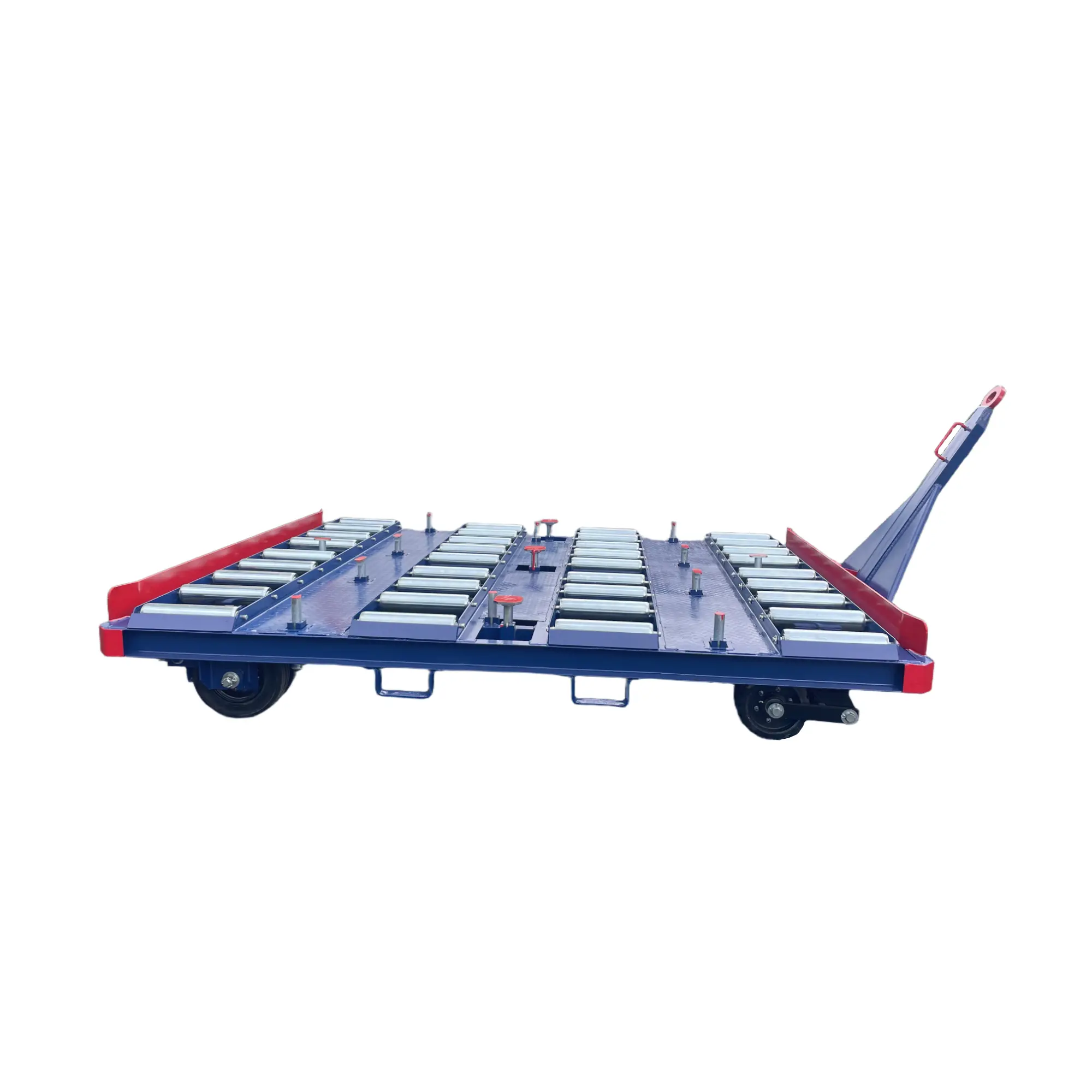

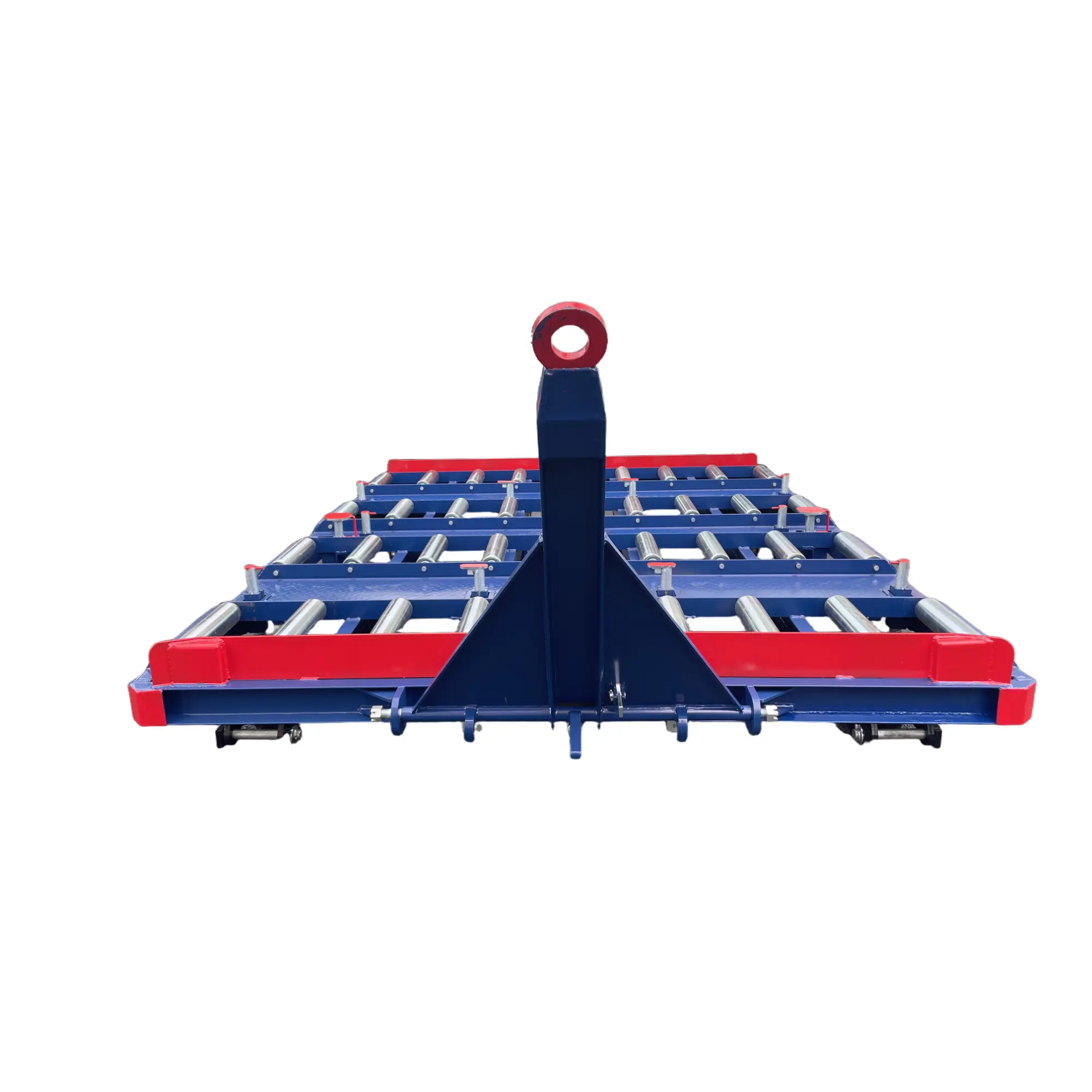

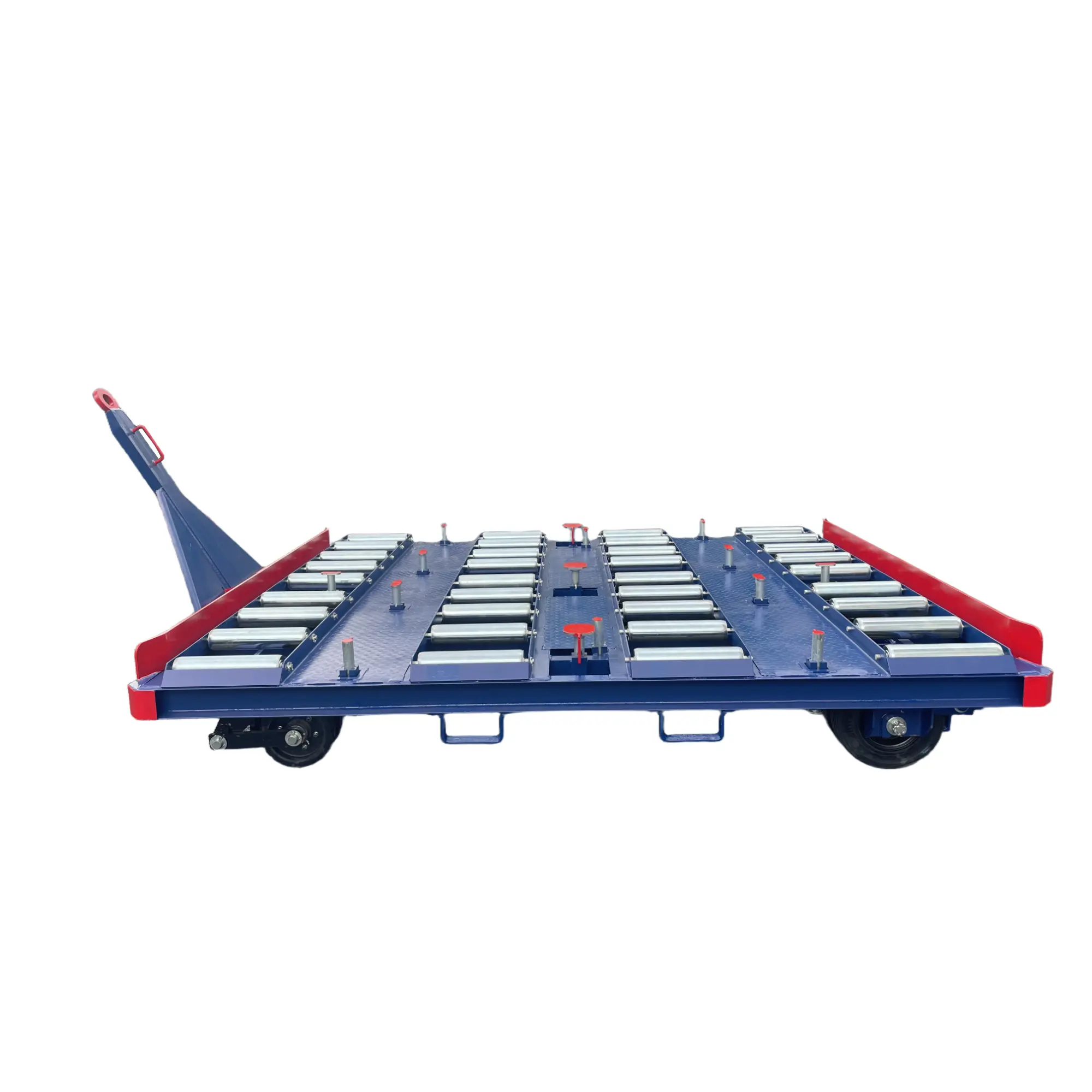

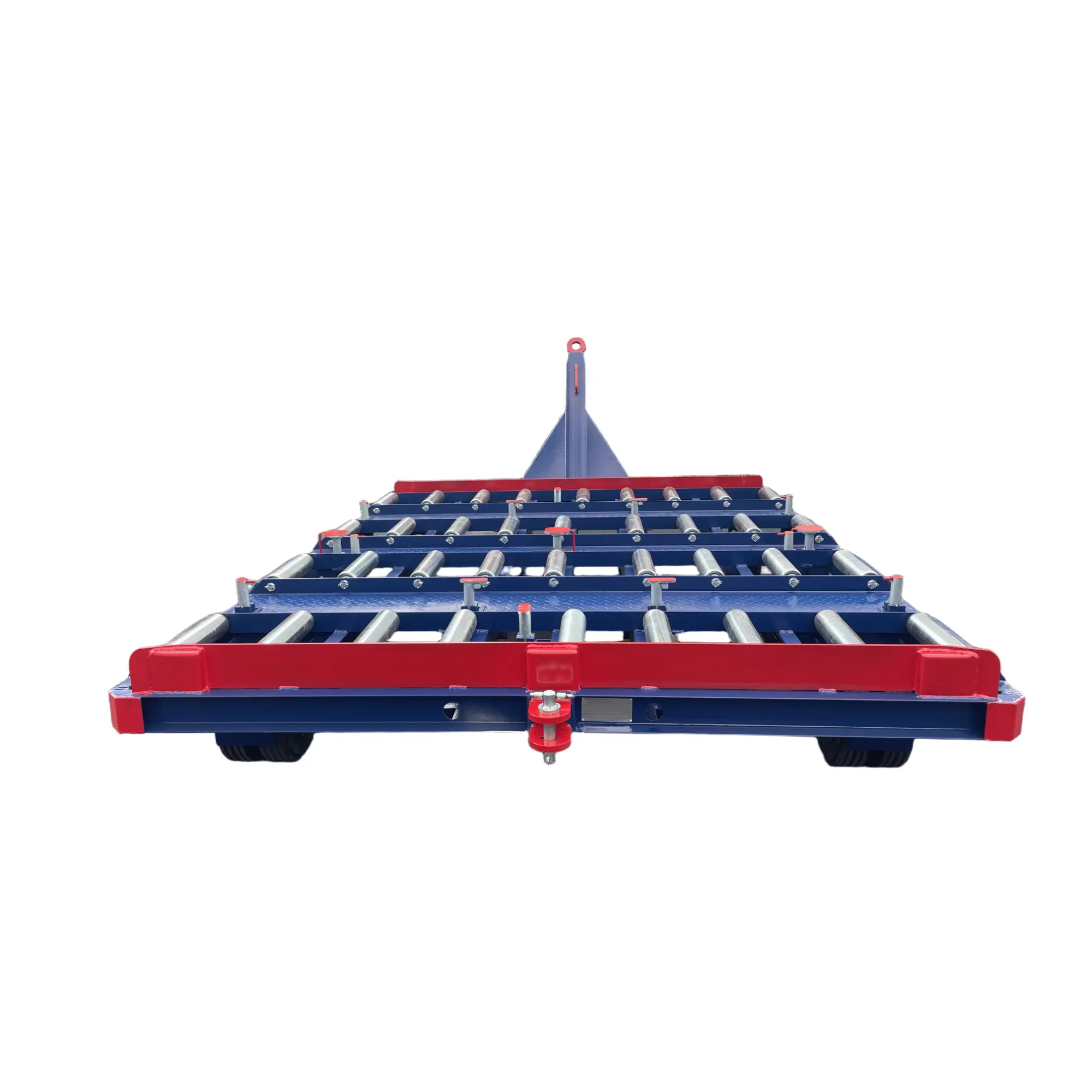

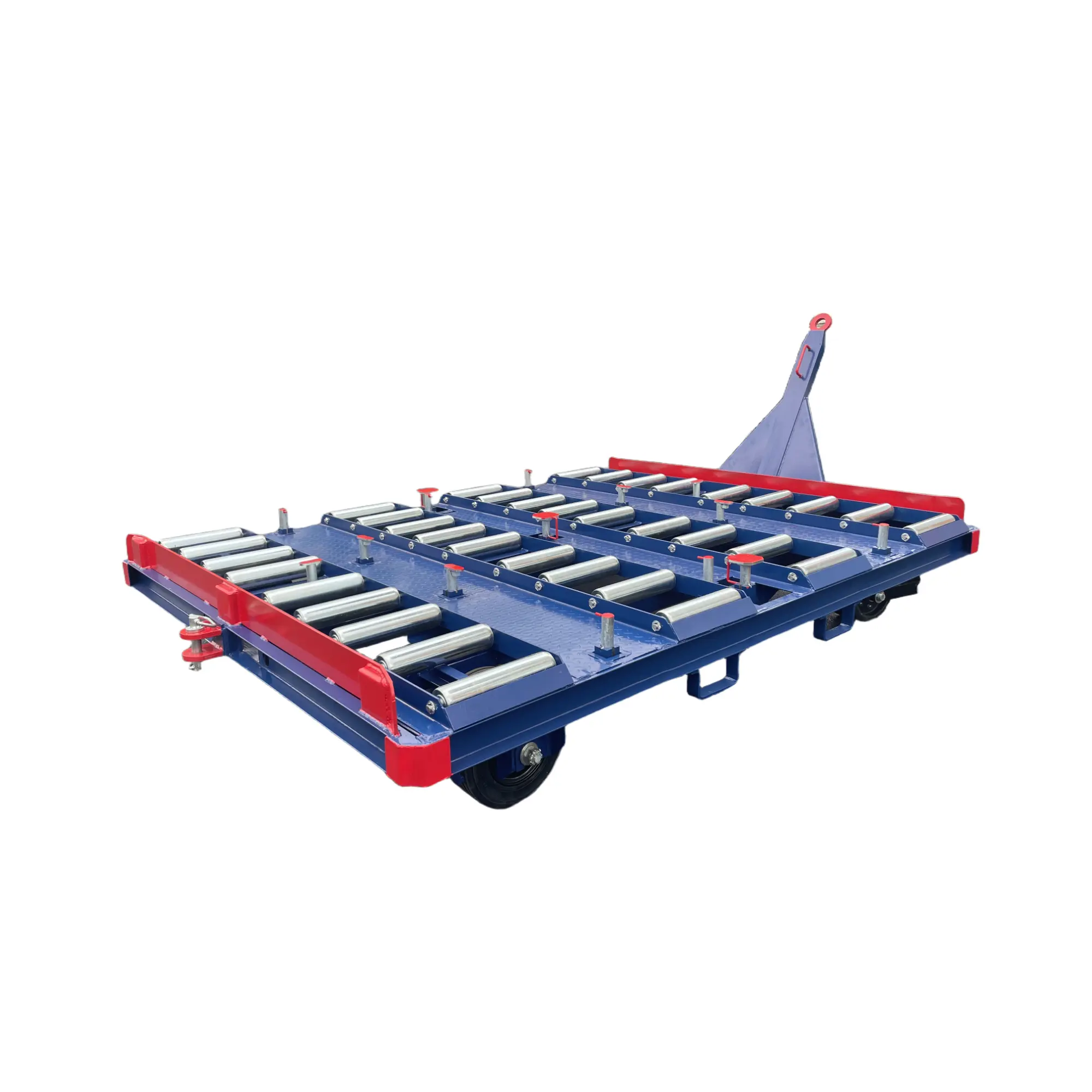

China 10FT Pallet Dolly Manufacturer, Factories

1 / 5

China 10FT Pallet Dolly Manufacturer, Factories

Loading Method	Side loading on both sides	Self Weight	≥1100KG
Application	Mainly used for loading the following containers/pallets: l LD 1&3: 60.4 inch x 61.5 inch l LD 2 :60.4 inch x 47 inch l ULD: 88 inch x 125 inch l ULD: 96 inch x 125 inch l ULD: 60.4 inch x 125 inch
Features	Ø The deck adopts a roller transmission system, which is lightweight and flexible. The roller surfaces are galvanized for wear and corrosion resistance. Ø Limiting Device: Fixed limiting devices are installed at the front and rear according to applicable container sizes; the sides and middle are designed with manual limiting mechanisms. The design prevents loosening or jamming caused by bumps during vehicle operation, avoiding any impact on ground support operations. Ø Rear Pin: The tail is equipped with a self-locking hook device with excellent anti-seismic function, preventing safety hazards such as the rear cart uncoupling due to rear pin failure. Ø Equipped with four rows of rollers (Φ89x4), totaling 36 galvanized transmission rollers. The bearings are anti-corrosion treated, and there is a checkered walkway in the middle to facilitate operation. Ø The drawbar features reliable braking performance in both the raised and lowered positions. Ø Brake Rod: Designed with a dual brake rod system that is robust and impact-resistant, with easily adjustable brake clearance. Ø Designed with forklift pockets on both the left and right sides to facilitate moving the dolly/cart with a forklift.
Technical Parameters	Overall Dimensions: 4850mm × 2680mm × 529.5mm
	Working Platform Dimensions: 3340mm × 2680mm × 529.5mm
	Max. Payload≥7000kg
	Travel Speed：30km/h
	Min. Turning Radius：≤4500mm
	Front Wheels: Two sets of dual swivel casters, tire model: 300*80 iron core rubber wheels. Rear Wheels: Two sets of dual fixed wheels, tire model: 400-8 rubber wheels.

Send Inquiry

Product Description

Related Products

LD3 container dolly

LD6 container dolly

Baggage Cart

18T 20FT Pallet Dolly

7T Pallet dolly

New LD3 Container Dolly

Frequently Asked Questions

Q: What is the primary function of an LD3 container dolly?

An LD3 container dolly is specifically engineered to transport LD3 aviation containers safely and efficiently across airport aprons and cargo areas, ensuring secure locking and smooth handling during ground support operations.

Q: How does the 18T 20FT Pallet Dolly handle heavy air cargo?

Designed for high-capacity logistics, the 18-ton 20-foot pallet dolly features a robust structural chassis, heavy-duty rollers, and multi-directional container locks to facilitate the safe transfer of large-format air cargo pallets.

Q: What safety mechanisms are included in these airport dollies?

These ground support equipment (GSE) units are built with reliable parking brake systems (activated by the towbar), heavy-duty limit stops, safety locks, and high-visibility reflectors to comply with international airport safety regulations.

Q: What is the difference between an LD3 dolly and an LD6 dolly?

The differences primarily lie in their dimensions and weight load specifications. The LD6 dolly is structured to accommodate the larger footprint and heavier capacity demands of standard LD6 unit load devices (ULDs) compared to the LD3.

Q: Can the baggage carts and dollies withstand outdoor weathering?

Yes, all units undergo premium surface treatments such as hot-dip galvanization or high-durability industrial coatings to ensure long-term resistance to rust, oxidation, and severe weather conditions on the tarmac.
