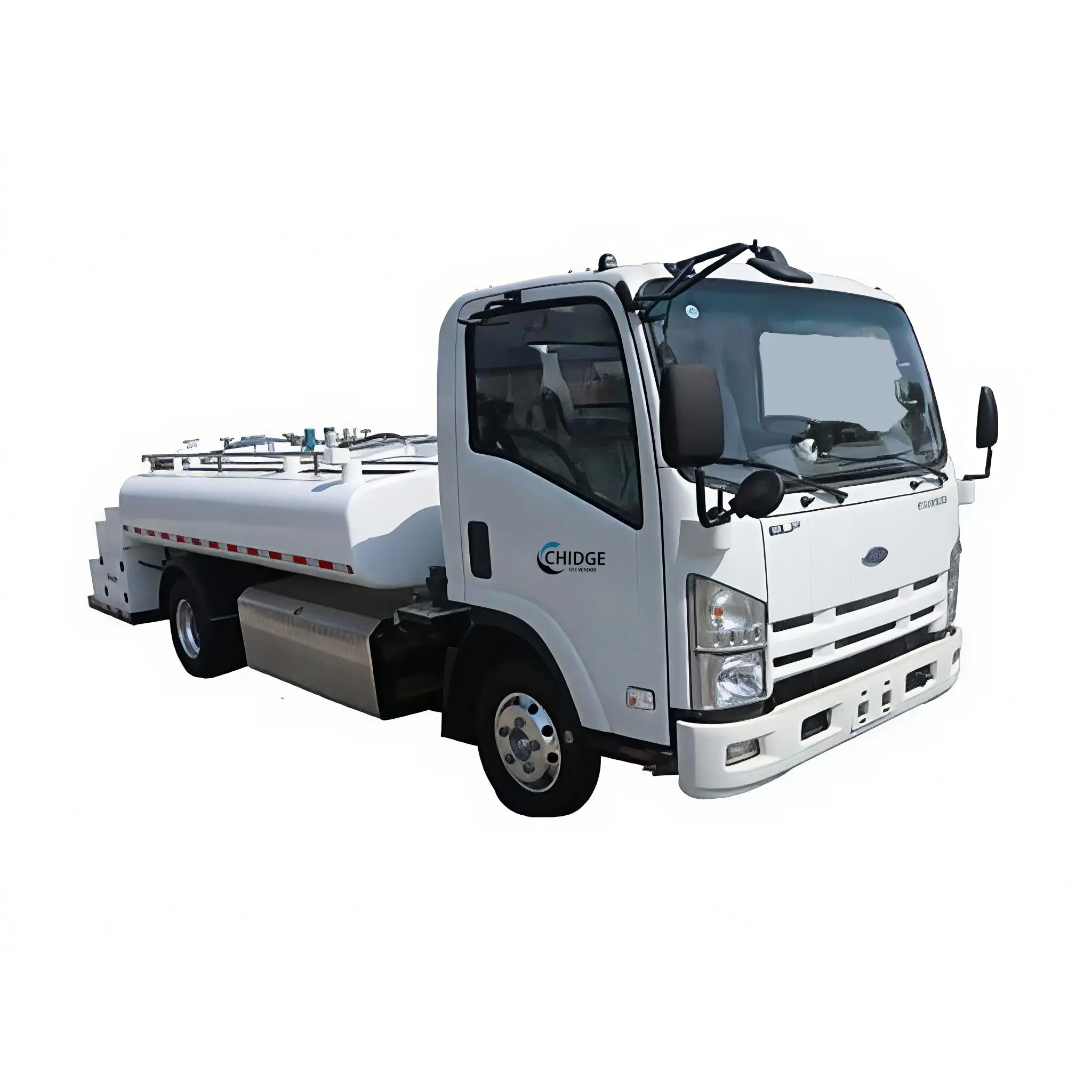

CD5060DQS Electric Aircraft Potable Water Truck

The CD5060DQS electric aircraft potable water servicing vehicle is a specialized ground support equipment designed and manufactured by Shanghai Chidge Industries Co., Ltd. for delivering drinking water to aircraft at airports. Built on the proven all-electric chassis from Qingling, the vehicle features advanced and reliable technical performance, a well-engineered structure, safe and user-friendly operation, comprehensive functionality, an attractive appearance, and easy maintenance. It fully meets the operational requirements of all domestic and international aircraft types, including the A300, A320 family, A330, A340, A380, B727, B737, B747, B757, B767, and B777.

Send Inquiry

Product Description

Main Structure and Configuration

The portable water truck is composed of a chassis, water tank, water supply system, hydraulic system, and electrical system, designed for efficient airport ground operations.

Chassis Specifications

Utilizes the QL10503HARY car chassis powered by a 4JB1CN diesel engine (National Emission Standard V). The driver's cabin is fully equipped with air conditioning and hydraulic power steering for operator comfort.

Clean Water Tank Features

Processed by molding technology and argon arc welding; elliptical shape with smooth internal welding.

Equipped with electric heating and full insulation for the box body.

Large curved structure on front, rear, and side panels to prevent foreign object accumulation.

Inclined drainage channel at the bottom for optimized leading drainage.

Internal stainless steel anti-vibration plates and 6 floating supports to reduce vibration during transit.

Dual 100mm water inlet ports with filter screens and secure locking devices.

Top ventilation port with filter to prevent vacuum during pump operation.

Inspection hole for easy cleaning, disinfection, and maintenance.

Connecting rod floating ball level gauge installed for anti-freezing monitoring.

Sedimentation tank design with a stainless steel drainage ball valve for impurity discharge.

Welding spot removal, passivation treatment, and automotive-grade exterior paint for rust prevention.

Water Supply System

Water Pump: Stainless steel centrifugal pump driven by an oil motor. Features heating, insulation, mechanical seals, and a low-point drain plug.

Pipeline & Fittings: Includes stainless steel valves, pipes, and a safety pressure regulating valve. A pressure gauge is visible from the cab.

Hose & Joints: Food-grade rubber cloth clip tube (25mm diameter). Filling joint complies with ISO450 standards.

Hydraulic & Electrical Systems

Hydraulic System: Consists of a power take-off (PTO), gear oil pump, hydraulic motor, and solenoid valve. The oil tank is positioned for easy filter replacement.

Electrical System: Powered by 12V DC. Includes an electrical control cabinet, battery, alarm lights, lighting fixtures, and safety switches.

Frequently Asked Questions (FAQ)

1. What type of engine powers this water truck?

The truck is powered by a 4JB1CN diesel engine that meets National Emission Standard V, ensuring reliable and environmentally friendly performance.

2. How is the water quality maintained in the tank?

The interior of the stainless steel tank undergoes passivation treatment to prevent rust. It also includes filters on the inlet and ventilation ports, and a sedimentation tank with a drainage valve to clear impurities.

3. Can the water truck operate in extremely cold climates?

Yes, the water tank and the water pump are equipped with electric heating and insulation measures to ensure functionality in low-temperature environments.

4. Is the water supply system safe for aircraft connection?

Absolutely. The system includes a stainless steel safety pressure regulating valve and an ISO450 compliant joint to ensure the aircraft's water tank is protected from damage during filling.

5. How does the driver monitor the system during operation?

The cab is equipped with a clean water pipeline pressure gauge and a level gauge inside the tank, allowing the operator to monitor water levels and pressure easily while working.

6. What measures are taken to reduce vehicle vibration?

The tank is fixed to the car beam using six floating supports and contains internal anti-vibration plates to minimize liquid sloshing and vibration during driving.
