1. Product Overview

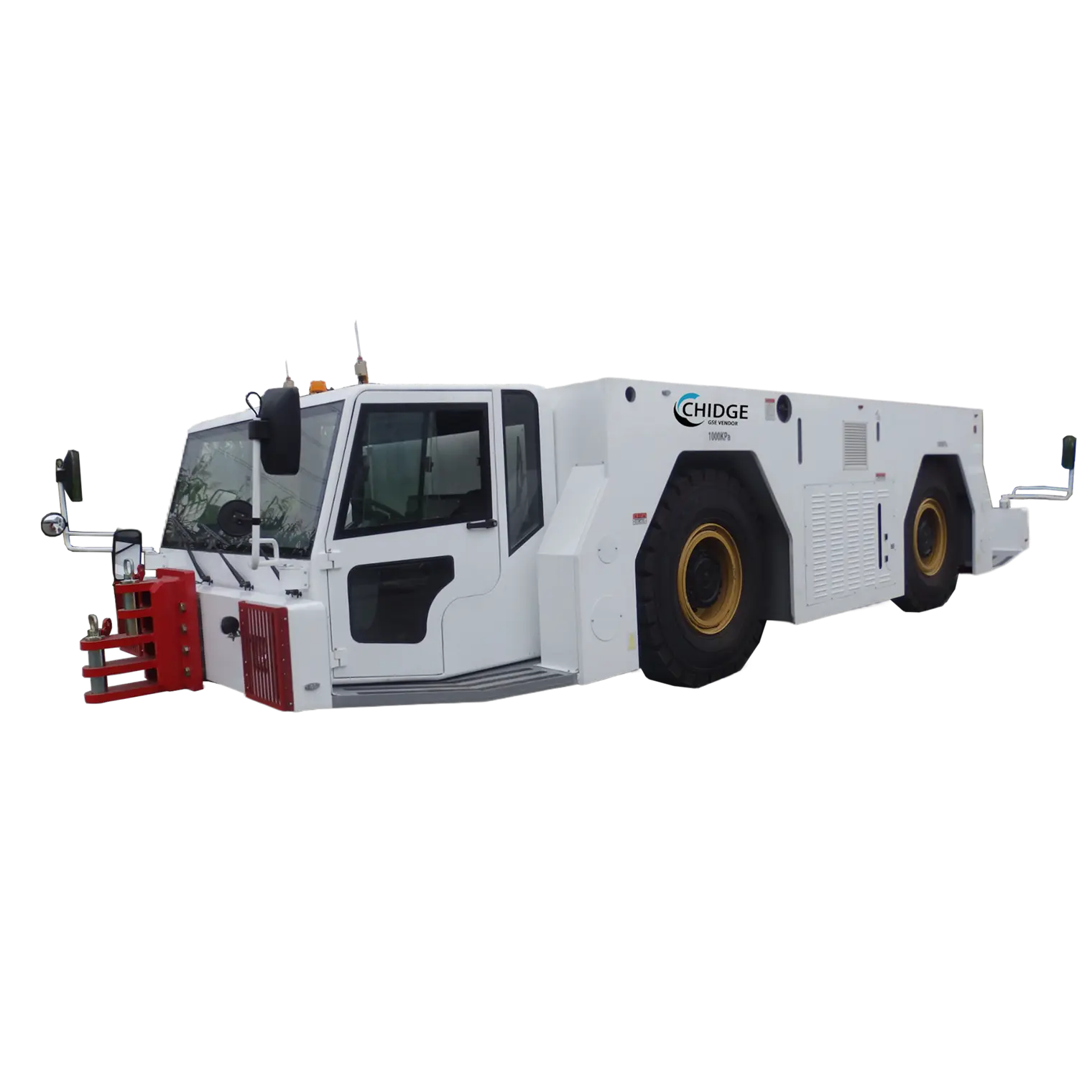

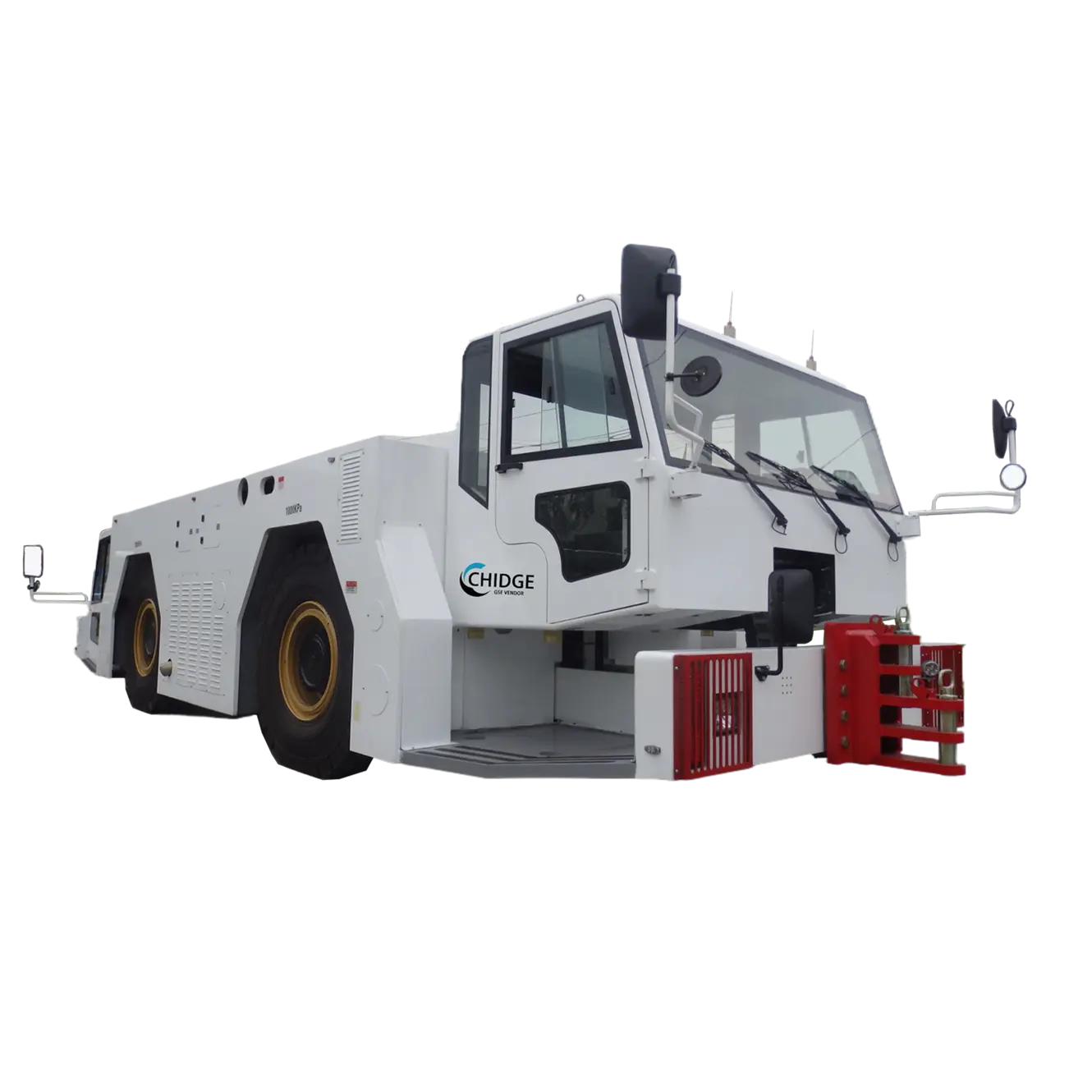

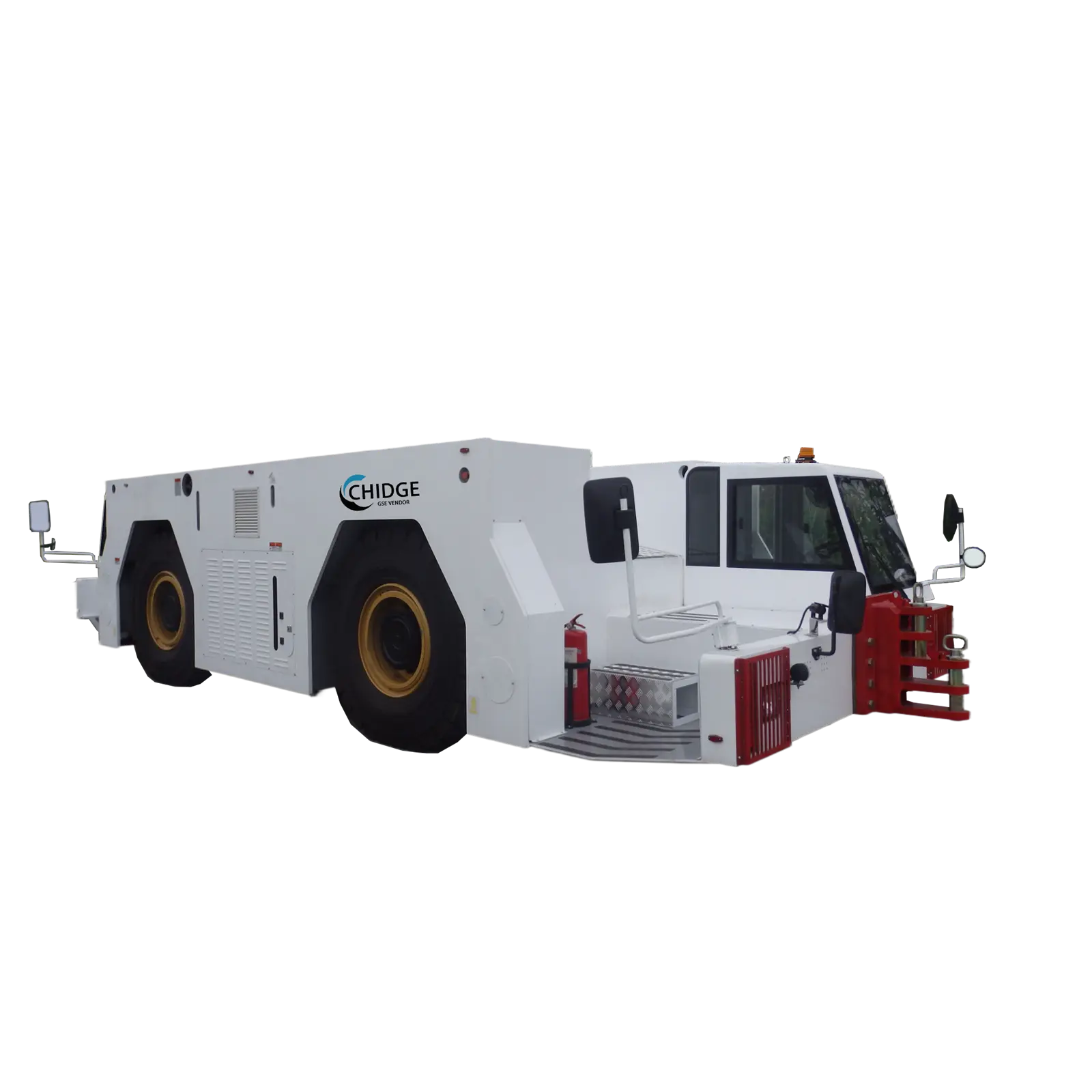

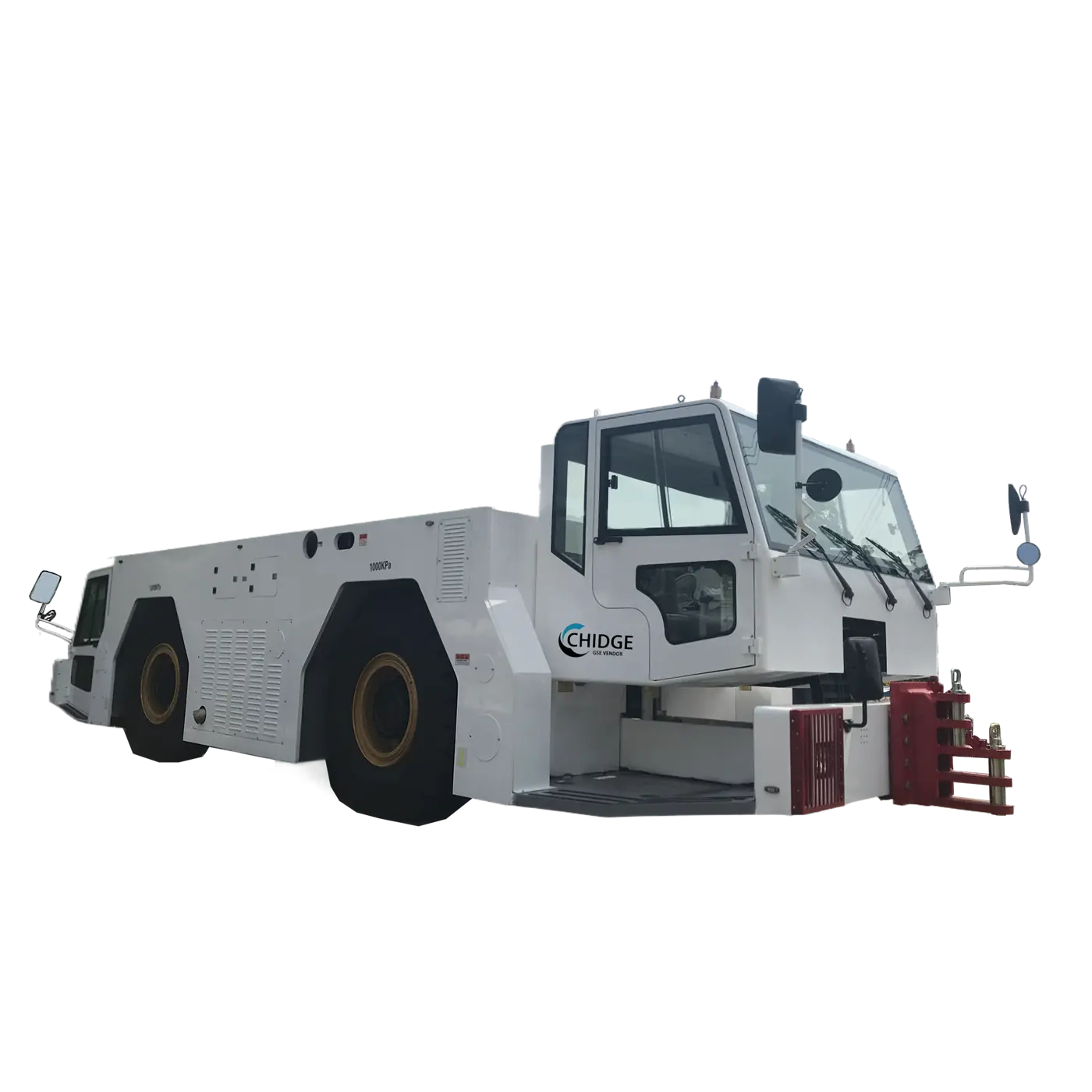

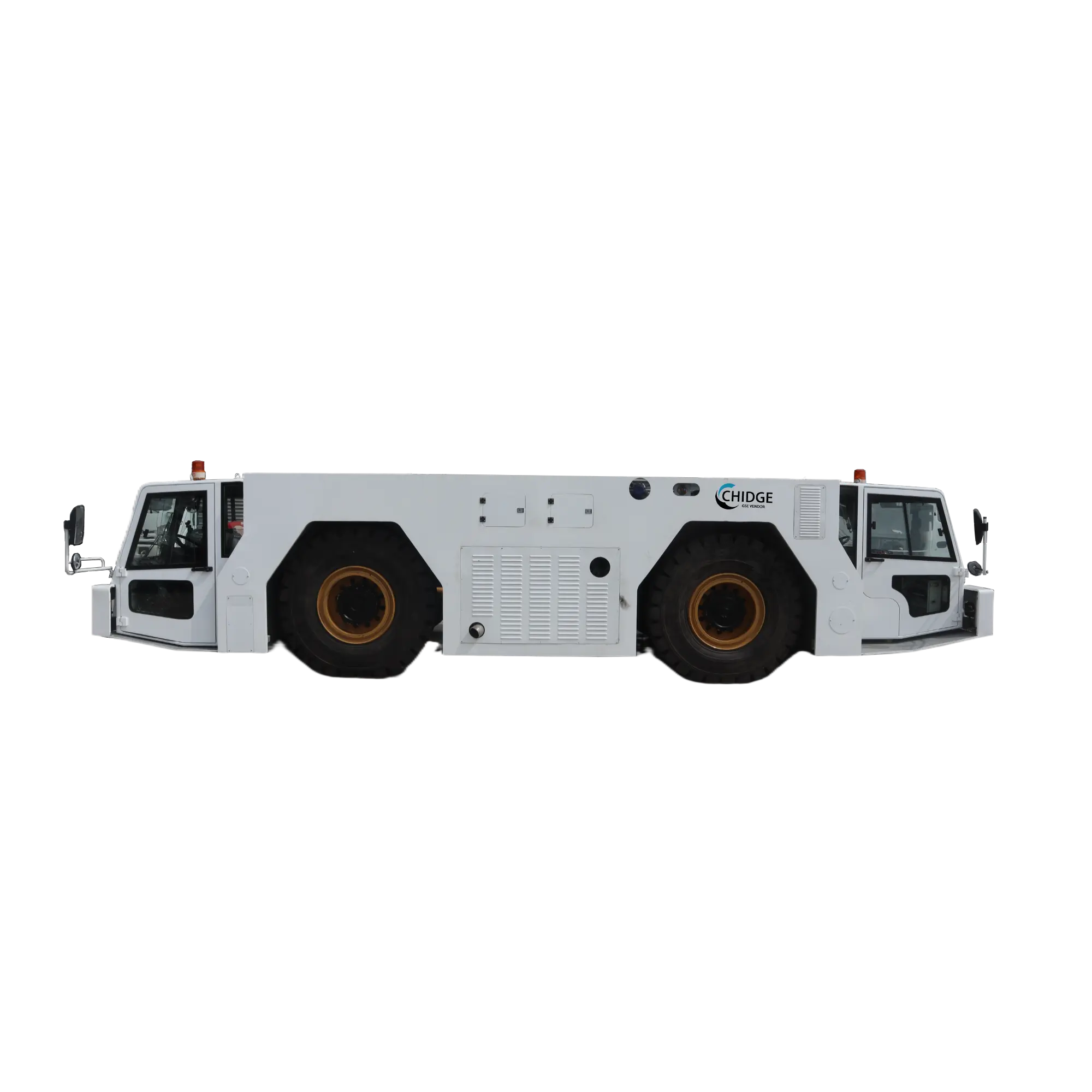

The CDT700 Aircraft Towing Tractor, manufactured by Shanghai Chidge Industries Co., Ltd., is a large aircraft towing vehicle designed to push or pull heavy wide-body passenger aircraft and cargo planes weighing up to 700 tons, including models such as the A330, A340, A350, A380, B747, B777, and B787.

2. Product Standards

The CDT700 Towing Tractor is designed, manufactured, and inspected according to the following standards:

• AHM910: Basic Requirements for Aircraft Ramp Support Equipment
• AHM913: Basic Safety Requirements for Aircraft Ramp Support Equipment
• AHM915: Standard Controls
• AHM916: Basic Requirements for Inclined Operation Equipment Traction Surface
• CDT 011-2020: CDT Series Aircraft Towing Truck Corporate Standard

3. Operating Conditions

The product meets technical performance requirements under the following conditions:

• Altitude: Up to 3500 meters
• Ambient Temperature: -41°C to 60°C
• Relative Humidity: 20% to 85%

4. Technical Data

• Weight: 60,000 - 70,000 kg
• Maximum Speed: 30 km/h
• Ground Clearance: 210 mm
• Wheelbase: 2400 mm
• Axle Distance: 3500 mm
• Cabin Lift Height: 700 mm
• Turning Radius:

• Two-wheel steering: 10,300 mm

• Four-wheel steering: 5200 mm

• Dimensions (without tow hook): 9080 × 2950 × 1870 mm
• Maximum Traction Force: 460 - 495 kN
• Permissible Towing Capacity: 600 - 700,000 kg
