Wholesale CDT450 aircraft towing tractor Manufacturers, Supplier

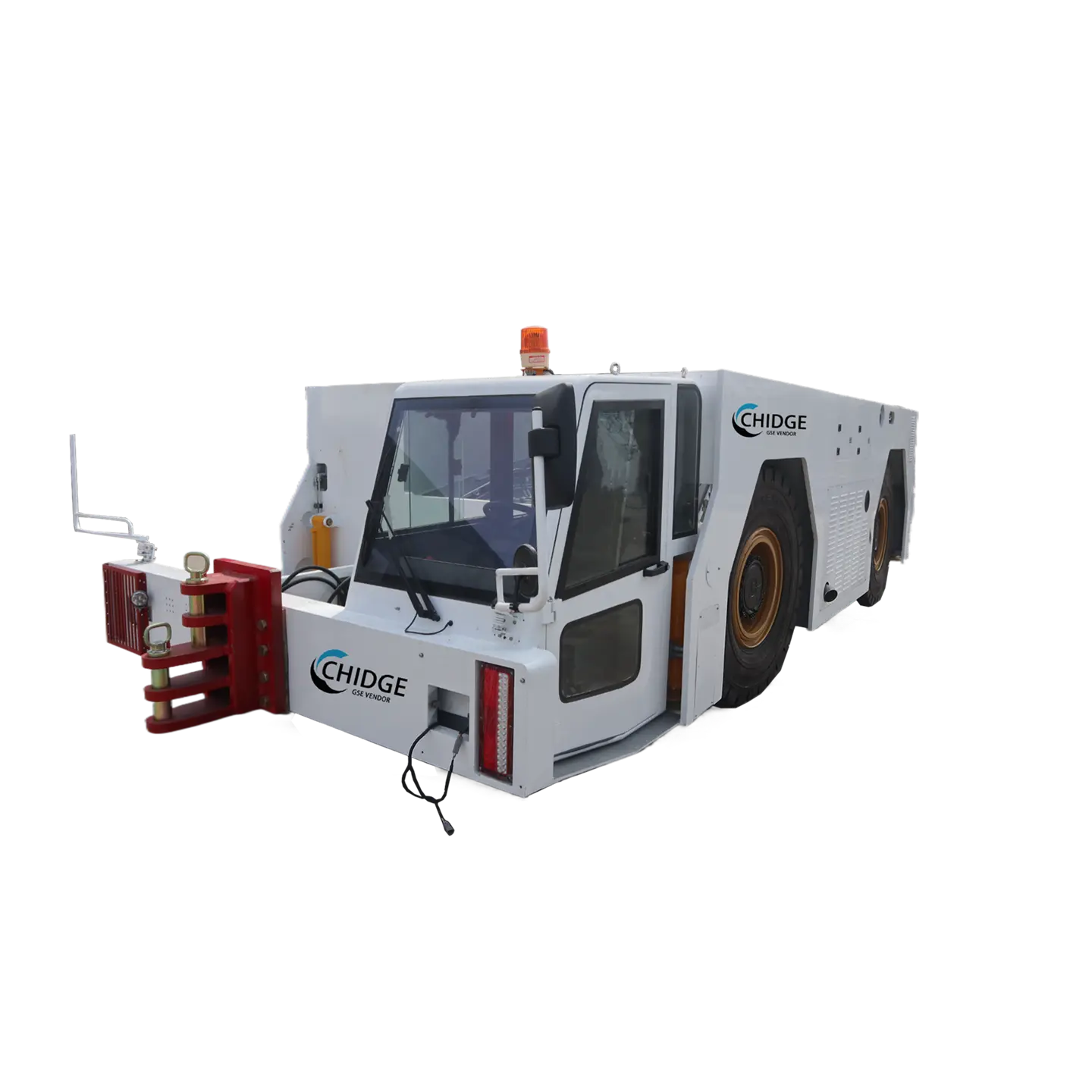

The CD-T450 aircraft tow tractor is a light aircraft tractor designed and developed by Shanghai Chidge Industry Co., Ltd. The superior performance of the tow tractor includes :

➢ Four wheel drive.

➢ Four wheel hydraulic steering.

➢ Four wheel hydraulic braking.

➢ Three Steering selection of modes: (front wheel steering, four wheel coordinated steering, and Crab wheel steering).

The maximum traction force is 350kN, which can push or drag . A318-100, A319-100, A320-200, A320-214, B727-100, B737-300, B737-400, B737-500, B737-600, B737-700, B737-800, MD-81, MD-87, MD-82, MD-88, MD-83, MD-90, Fokker-50, Fokker-100,DC9-10, DC9-30, DC9-40, DC9-50, A24, A26, A28, EMB145, EMB190,MA60,A321-100, A300-600, A310-300, B727-200, B737-900, DC8-32, A330-200, A330-300, A340-200, A340-300, B757-200, B757-300, B767-200, B767-200ER, B767-300, B767-400, B777-200, B787-3, B787-8, B787-9, MD-11, DC10-10, DC10-30, DC10-40, A22, A340-500, A340-600, B747-100, B747-200, B747-300, B747-400, B747-400ER, B747-400D, B747-8, B777-200ER, B777-300, A124, Light aircraft with a maximum take off weight of 450 tons or less.

Send Inquiry

Product Description

Main Technical Parameters

⚙️

Max. Traction Value

350KN

🚛

Max. Towing Capacity

450T

⚖️

Gross Weight

45T

Overall Dimension (LxWxH)	8450mm (without towing assembly) / 9230mm (with towing assembly) x 2950mm x 2000mm
Wheelbase	3300mm
Ground Clearance	210mm
Turning Radius	9000mm (two wheels) / 4750mm (four wheels)
Max. Vehicle Speed	25 Km/h
Drive Method	Hydraulically mechanical transmission, double axle four-wheel driving.
Braking System	Hydraulically, two-way, accumulator pressure maintaining.

Frequently Asked Questions

Q1: What is the maximum towing capacity of this vehicle?

The vehicle is designed for heavy-duty operations with a maximum towing capacity of 450T and a traction value of 350KN.

Q2: How maneuverable is the vehicle in tight spaces?

The vehicle offers excellent maneuverability with a turning radius of 9000mm for two-wheel steering and a significantly reduced 4750mm when using four-wheel steering.

Q3: What are the drive and transmission specifications?

It utilizes a hydraulically mechanical transmission system combined with double axle four-wheel driving for optimal power distribution.

Q4: What type of braking system is installed?

The vehicle features a two-way hydraulic braking system with accumulator pressure maintaining for enhanced safety and reliability.

Q5: What is the maximum speed and ground clearance?

The vehicle can reach a maximum speed of 25 Km/h and has a ground clearance of 210mm, suitable for various industrial environments.

Q6: What is the total length of the vehicle with and without towing assembly?

The length is 8450mm without the towing assembly and extends to 9230mm when the towing assembly is attached.
