Ground Power Unit, CD Series

Model: CD-GPU140-PT

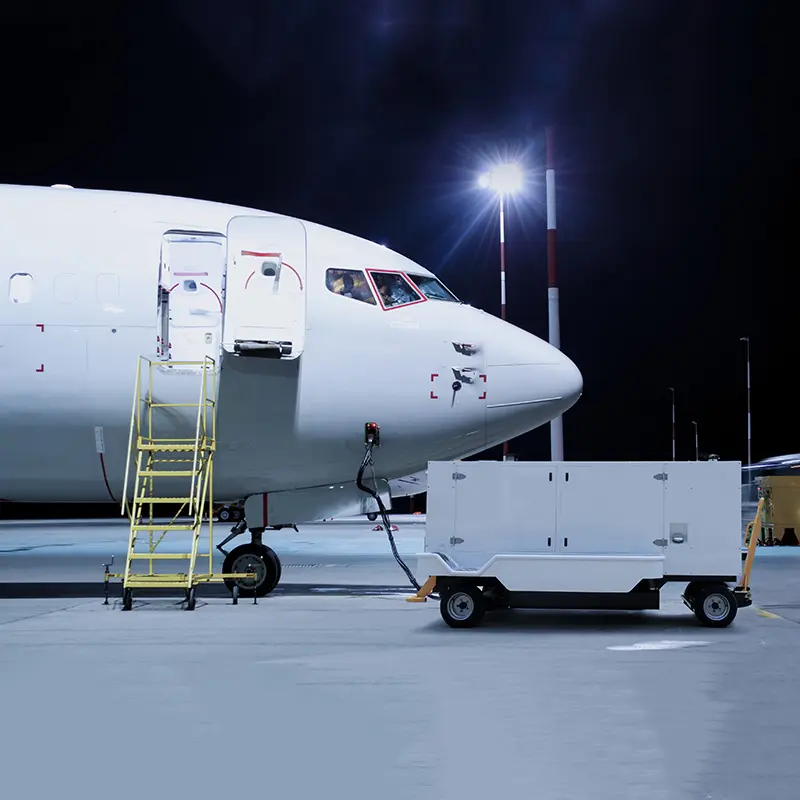

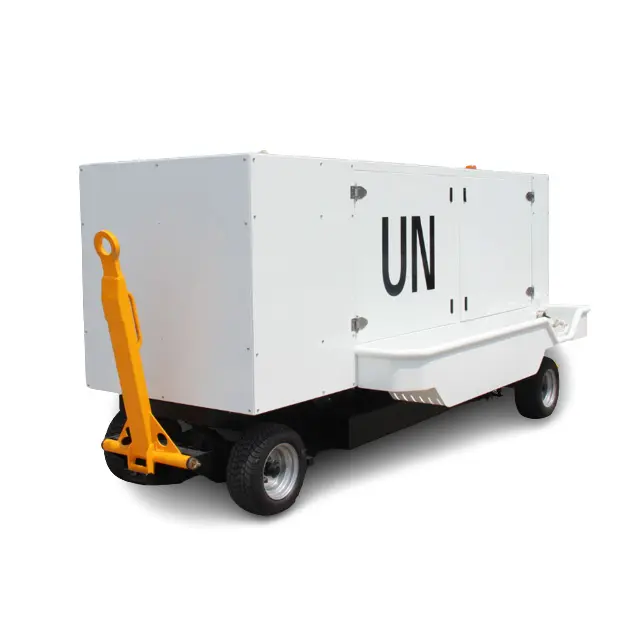

The CD Series 400 Hz GPU (Ground Power Unit) features a brushless revolving field generator, rubber torsion axle-mounted of rugged galvanized steel construction with fifth wheel steering and powder-coated sheet metal panels chassis (or mounted on truck chassis). The unit can be used for both military and civilian aircrafts with the latest emission standards.

Send Inquiry

Product Description

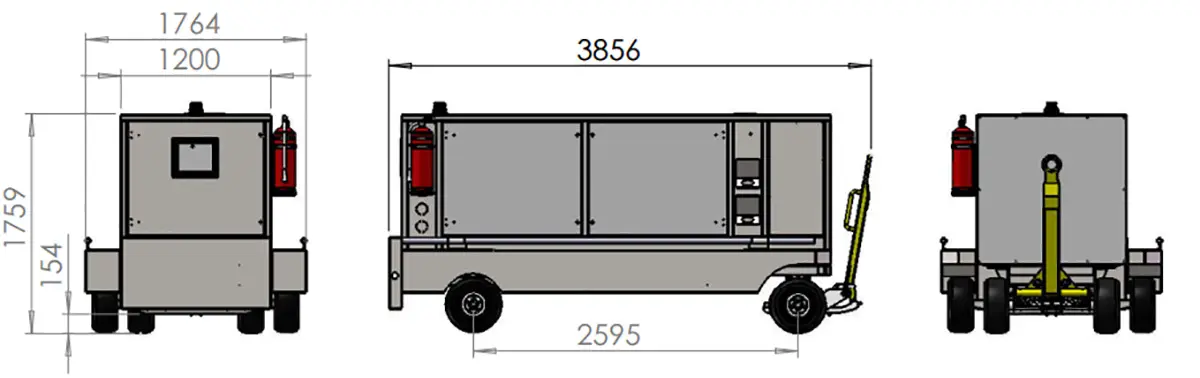

OUTLINE DRAWING

Frequently Asked Questions

1. What specific information is provided in the GPU outline drawing?

The outline drawing includes critical physical dimensions, weight specifications, mounting point locations, and external interface positions required for site planning and installation.

2. Are the dimensions shown in the drawing compatible with standard airport layouts?

Yes, our GPU units are designed according to international aviation ground support standards to ensure they fit seamlessly within standard terminal and apron environments.

3. Can I obtain high-resolution versions of these technical specifications?

The technical drawings provided are high-precision engineering outlines. If additional CAD files or 3D models are required for facility design, they can be requested through technical support.

4. Does the drawing indicate clearance requirements for maintenance?

Typically, outline drawings show the static dimensions. We recommend maintaining a clear space around the ventilation and access panels as specified in the operation manual.

5. Are these specifications subject to change for different power ratings?

While the basic frame often remains consistent, specific dimensions may vary slightly between different power capacities (e.g., 90kVA vs 140kVA). Always refer to the specific model's drawing.

6. What units of measurement are used in these outline drawings?

Our technical drawings primarily use the Metric system (millimeters) for high precision, though Imperial equivalents may be provided for global compatibility.
