Model No.: CD-BL80

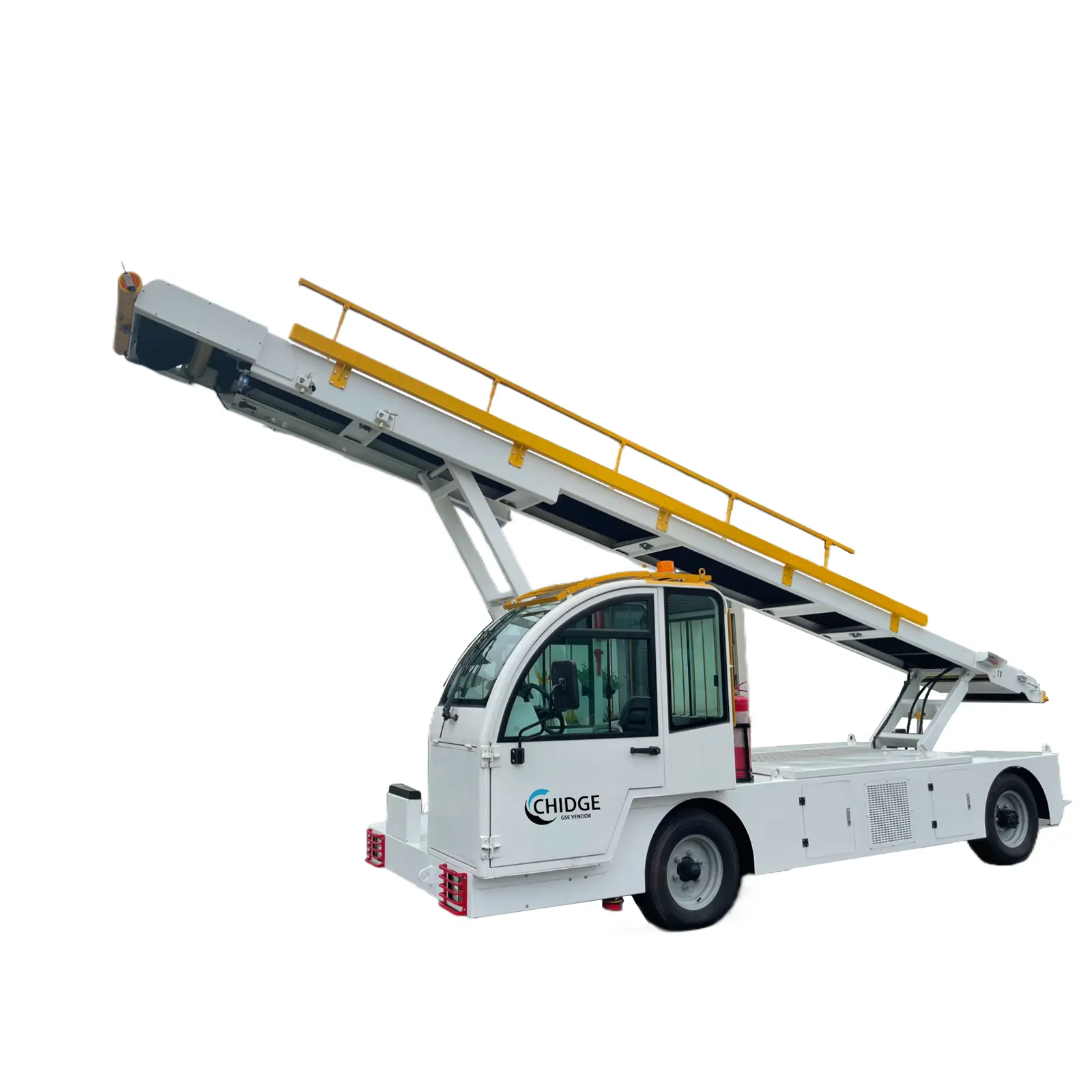

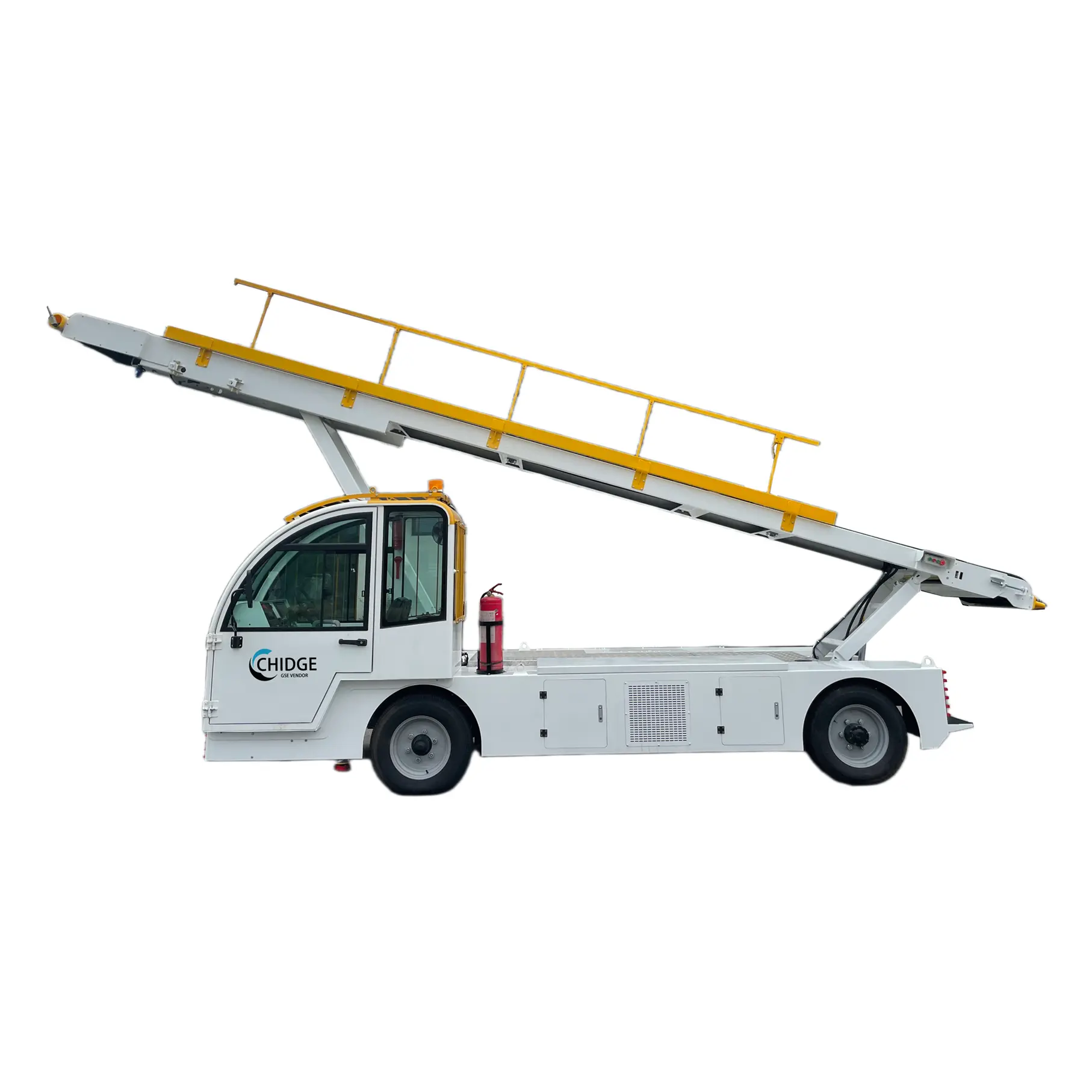

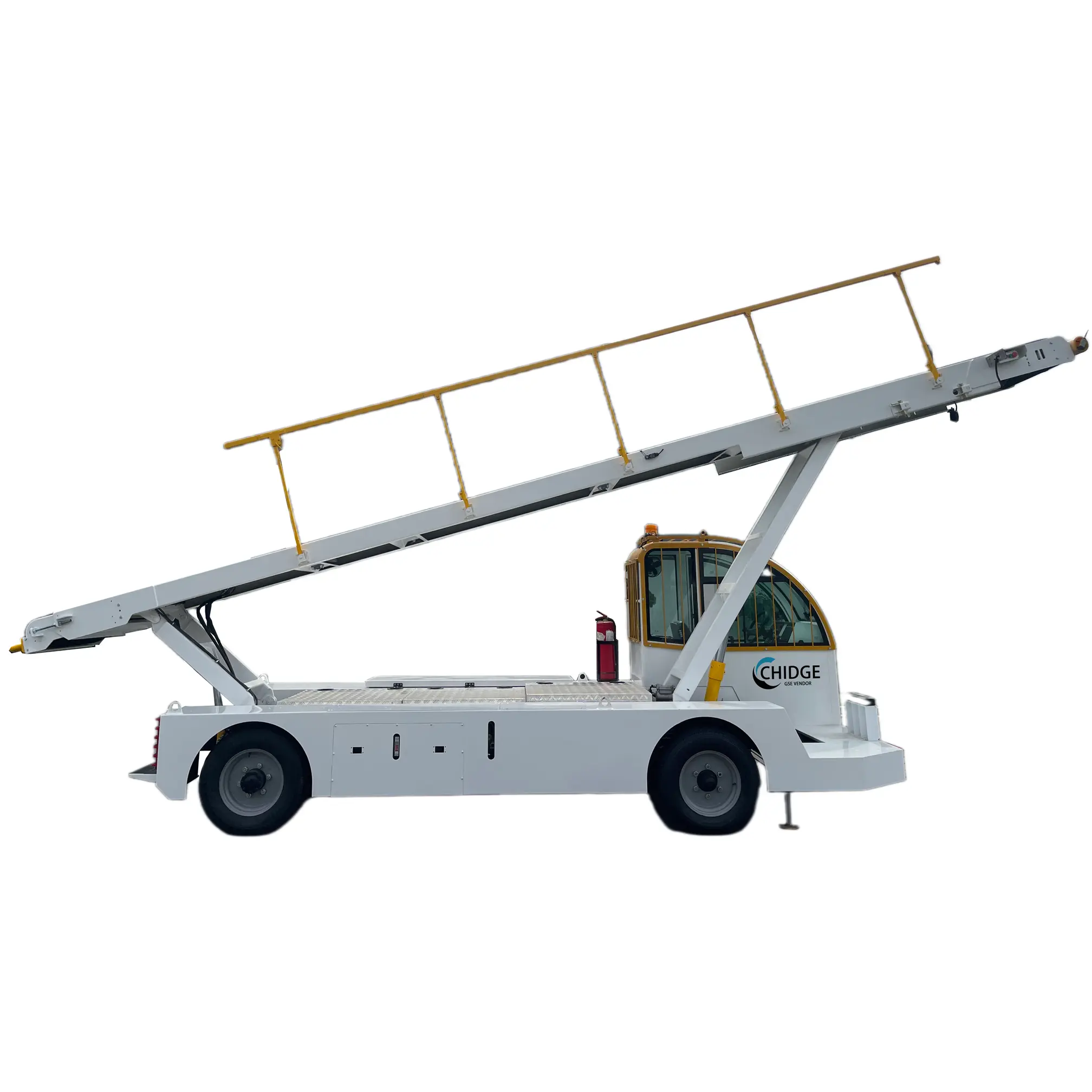

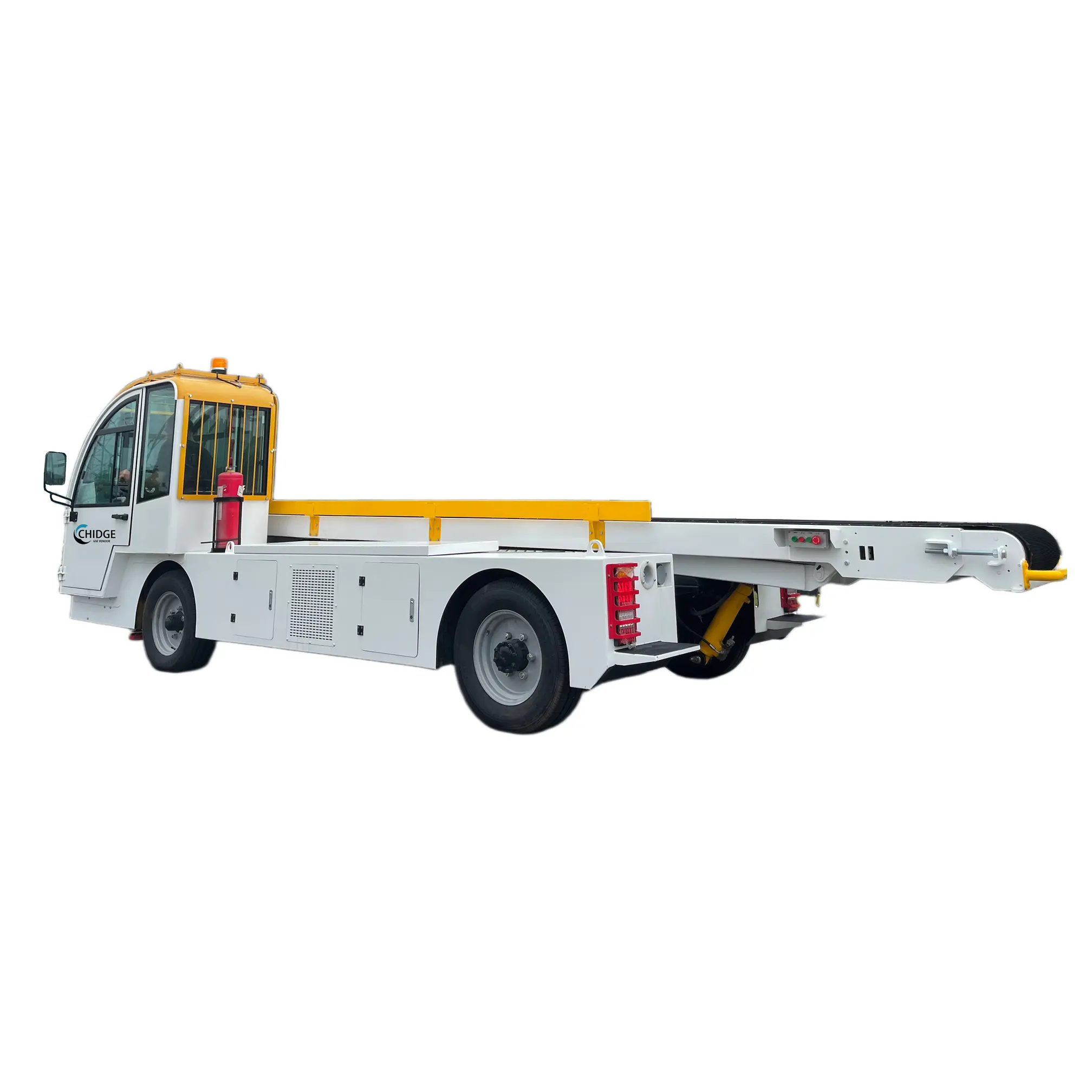

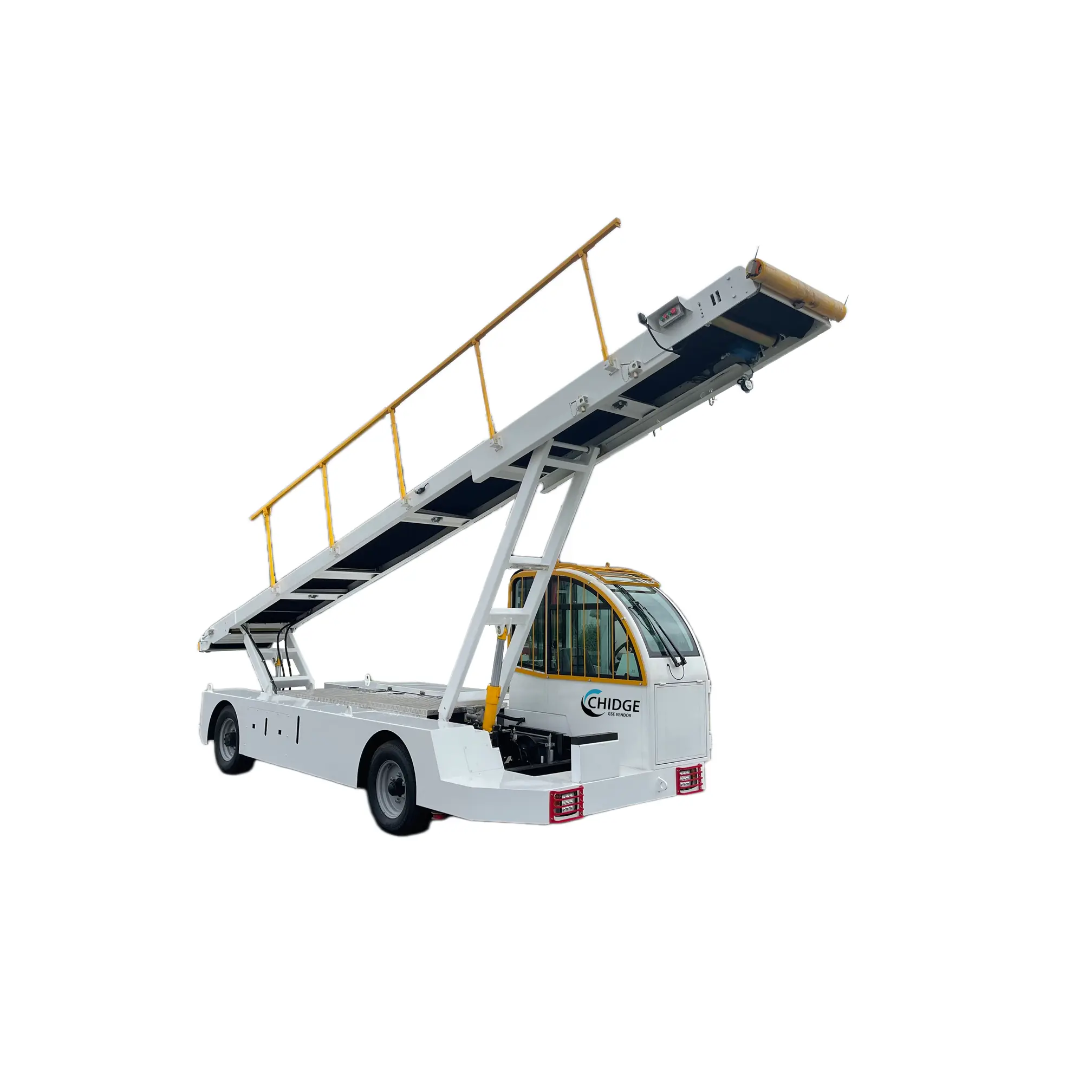

The Model CD-BL80 Self-propelled Conveyor Belt Loader is the most up-to-date design from us. The model is the universal type that is suitable for the aircraft cargo and luggage service in the airports. The configuration adopts the mature vehicle parts from technology of both China and western countries. The belt loader is reliable in performance and easily for operation and maintenance.

Product Description

Main Structure and Configuration
1
Power and Transmission System
Engine Model: QSF2.8t3Na49 (CUMMINS DIESEL ENGINE)
Type: Four cylinders, Four strokes, Water coolant, Straight line, EU Stage IIIA emission standard
Displacement: 2.8L | Max Output: 49hp (36kw) / 2500 rpm
Max torque: 186Nm / 1100-1500rpm
Equipped with USA original Horton fan, large capacity aluminum fin radiator, and large capacity air filter.
2
Automatic Transmission
Model: OKAMURA Y43280D (Japanese Origin)
Type: Hydraulic automatic, single stage torque converter, 2 Phase, 3 components comprehensive type. Stable performance with Front one gear and Rear one gear.
Tractor Axles, Tires & Brake System
Axles
Front Axle: Steering axle with hydraulic disc brake, single-side double-clamp twin cylinder (3-ton payload). Option for steel plate spring absorber.
Rear Axle: Driving axle with drum type walking brake and parking brake (3-ton payload).
Wheels & Brakes
Tires: Radial type, Steel Wiring Tire, 7.00R15 (Tubeless available).
Brake System: 8 + 9 Inch Vacuum Power assisted system.

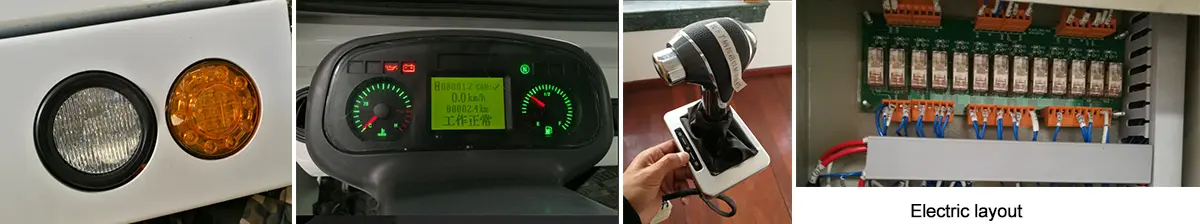

Electric System
12V DC system, negative grounded. 80Ah Maintenance Free Battery, LED Lighting, CAN Wiring, Weidmuller Relays (Germany original).
Hydraulic System
90L Hydraulic Tank with Chinese best branded pump.
Italian branded HV hand pump and EATON valve sets.
Emergency retrievable stabilizer and emergency lifting/lowering functions.
Hard type piping design for long-term durability.

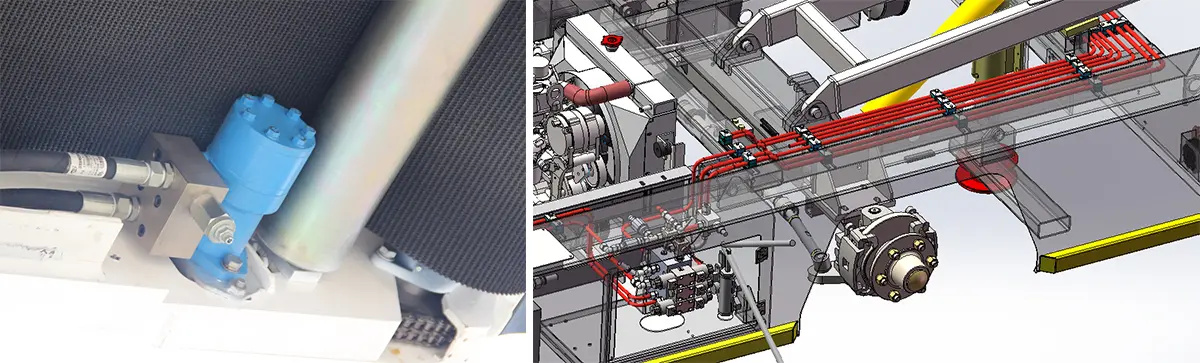

Hydraulic components
Hydraulic components and layout diagram
Conveyor Frame Part

The 800mm wide frame consists of heavy loaded rollers and a driving system:

  • Drive Roller: 210mm diameter PU rubber packed for maximum friction.
  • Belt: 700mm width, 8mm thickness three-layer Taiwan NANG brand.
  • Capacity: Max conveying power for up to 1200KG cargo.
  • Safety: Stainless guiding baffles and foldable handrails (850mm-1000mm).

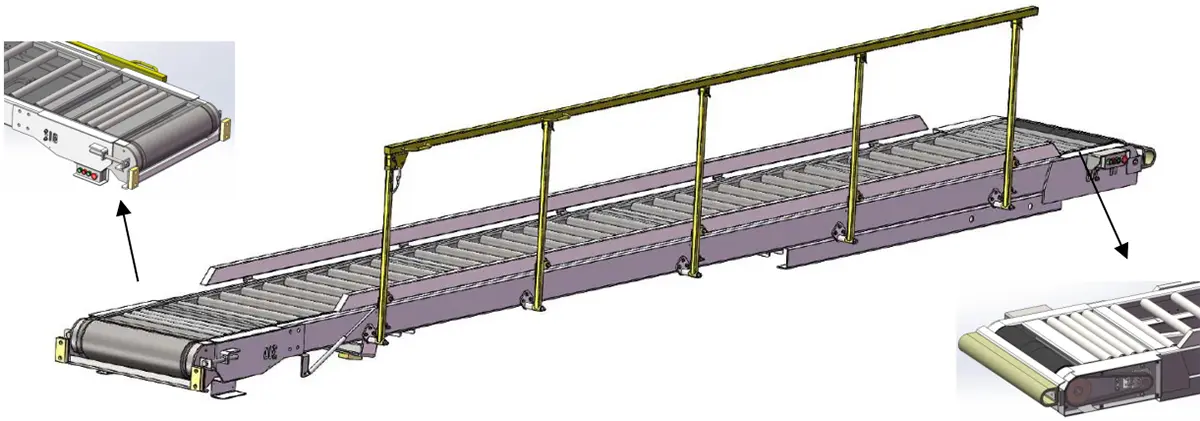

Conveyor frame illustration
Conveyor frame illustration diagram
Optional Configurations
• Water proof Canopy
• Cool/Heat Air Conditioner
• Reversing Visual System
• Front Stabilizer
• Driver's cab Heater
• Lamp Covers
• Rubber bumpers
• Custom Painting Color
Shipping Documents
• Operation Manual (CT-BL80)
• Spare Parts Book
• Engine & Transmission Manuals
• Quality Certificate
Frequently Asked Questions
What is the engine specification for this belt loader?
It uses a Cummins QSF2.8t3Na49 diesel engine, featuring four cylinders and water cooling, compliant with EU Stage IIIA emission standards.
What is the maximum load capacity of the conveyor?
The conveyor system is designed to handle a maximum load of 1200KG for cargo or luggage transportation.
Is the transmission automatic or manual?
The vehicle is equipped with a high-quality Japanese OKAMURA hydraulic automatic transmission for stable and simple operation.
What are the dimensions of the conveyor belt?
The belt is 700mm wide and 8mm thick, made of a three-layer high-quality material from the Taiwan NANG brand.
Does the hydraulic system have emergency features?
Yes, the system includes an emergency retrievable stabilizer and emergency lifting/lowering functions for both the front and rear frames.
Can the vehicle operate in different weather conditions?
Yes, options such as a waterproof canopy, air conditioning, and heaters in the driver's cab are available to suit various climates.
