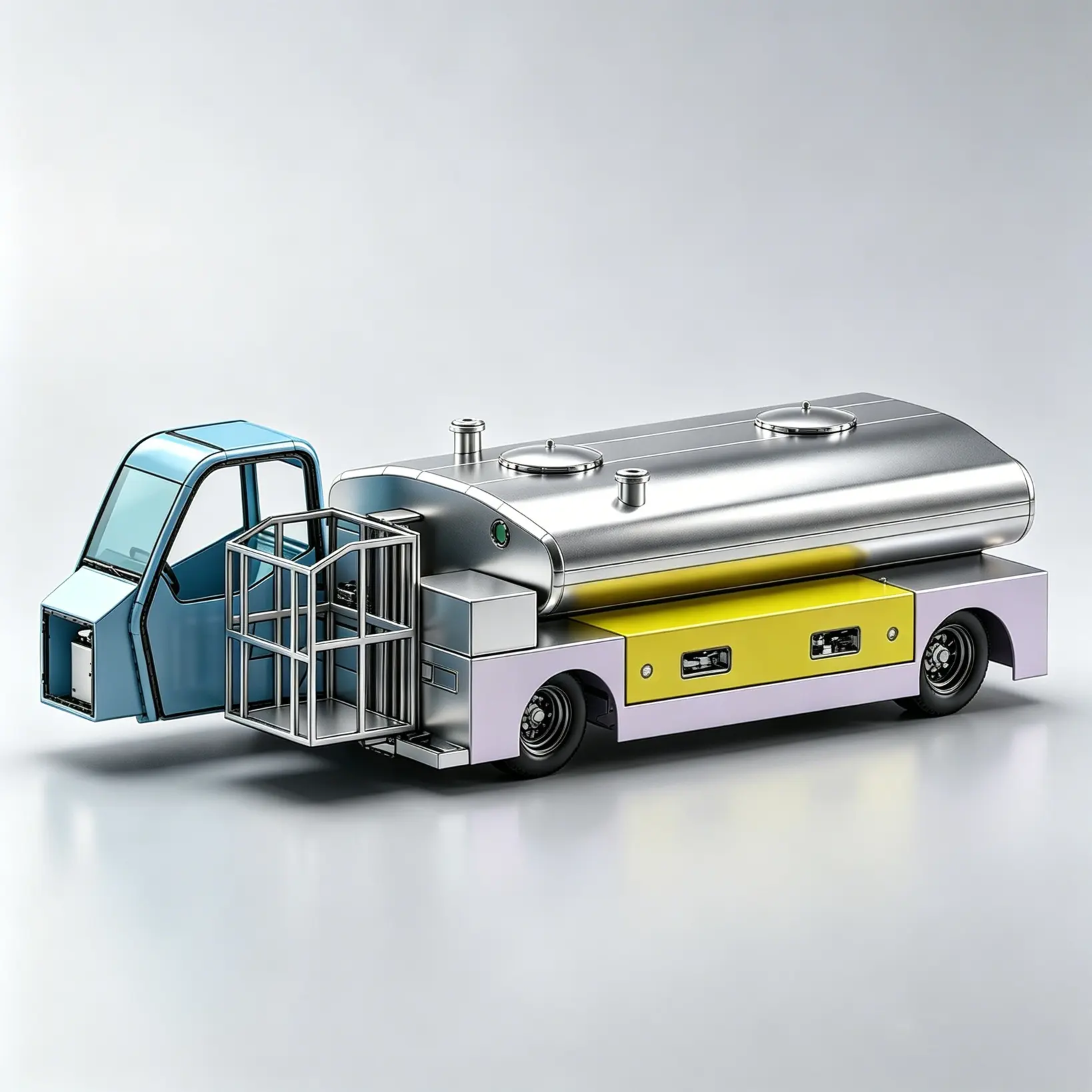

CD5060DQSZ Electric Aircraft Potable Water Truck

The Model CD5060DQSZ Electric Potable Water Servicer is a specialized ground support equipment (GSE) designed and manufactured by Shanghai Chidge Industries Co., Ltd. for delivering drinking water to aircraft. Built on a proprietary, fully electric chassis, this unit boasts advanced engineering, reliable performance, and a user-friendly design. It combines a rational structure with safe operation and easy maintenance. The 5060DQSZ is fully compatible with all major domestic and international aircraft models, including the Airbus A320, A330, A340, A350, A380, and Boeing 737, 747, 757, 767, 777, and 787 families.

Send Inquiry

Product Description

Main Structure and Configuration

CD5050GQS portable water truck is composed of a chassis, water tank, water supply system, hydraulic system, and electrical system.

Chassis

1 Model: Qingling QL10503HARY car chassis.

2 Engine: 4JB1CN diesel engine (National Emission Standard V).

3 Features: Equipped with air conditioning and hydraulic power steering in the driver's cabin.

Clean Water Tank

The water tank body is processed by molding technology and welded by argon arc welding; elliptical shape with smooth internal welding.
The water tank adopts electric heating, and the box body is insulated.
Large curved structure on front, rear, left, and right side panels to prevent foreign object accumulation and facilitate cleaning.
Bottom designed with an inclined drainage channel for efficient leading drainage.
Two stainless steel anti-vibration plates inside to prevent water shaking; fixed with 6 floating supports to reduce driving vibration.
Top features two 100mm diameter water inlet ports with filter screens and simple locking devices.
Upper ventilation port with filter to prevent vacuum during pump operation.
Inspection hole included for easy cleaning, disinfection, and maintenance with dust-proof sealing.
Connecting rod floating ball level gauge installed to facilitate anti-freezing monitoring.
Circular arc bottom with a sedimentation tank and stainless steel drainage ball valve for impurity discharge.
Internal welding spots removed and passivated for rust prevention; exterior sprayed with automotive specific paint.

Water Supply System

Composed of a water pump, water pipe box, pipeline, and accessories.

Water Pump: Front-mounted stainless steel centrifugal pump driven by an oil motor, featuring mechanical seals and heating insulation.
Pipeline: Includes stainless steel valves, pipes, and a safety pressure regulating valve to protect aircraft tanks.
Monitoring: Pressure gauge installed in the cab for operator observation.
Water Hose: Food-grade rubber cloth clip tube (25mm inner diameter).
Filling Joint: Complies with ISO450 standards, stored in a secure rear storage box.

Hydraulic System

Consists of power take-off (PTO), control mechanism, hydraulic oil tank, gear oil pump, hydraulic motor, and solenoid valve.
The oil tank is located on the outer longitudinal beam for easy filter replacement; solenoid valve is positioned for simplified maintenance.

Electrical System

● Electrical control cabinet

● Battery & Alarm lights

● Lighting fixtures

● Alarm switches

Frequently Asked Questions (FAQ)

What type of chassis is used for this water truck?

The truck utilizes a Qingling QL10503HARY chassis, equipped with a 4JB1CN diesel engine that meets National Emission Standard V.

How does the water tank maintain hygiene and prevent rust?

The interior undergoes welding spot removal and passivation treatment to prevent rust. It also features a sedimentation tank and a stainless steel drainage ball valve for easy impurity discharge.

Is the water supply system safe for aircraft?

Yes, the pipeline system includes a stainless steel safety pressure regulating valve specifically designed to ensure the aircraft water tank is not damaged during the filling process.

Can the vehicle operate in cold weather?

The water tank is equipped with electric heating and insulation, and the water pump includes dedicated heating and insulation measures to support cold-weather operation.

What are the key components of the hydraulic system?

The hydraulic system consists of a power take-off, gear oil pump, hydraulic motor, solenoid valve, and a hydraulic oil tank designed for easy maintenance.

What are the dimensions of the water hose?

The water hose is a food-grade rubber cloth clip tube with an inner diameter of 25mm, with the length customized according to user requirements.
