Custom 20Ton Diesel Baggage Towing Tractor Supplier, Factories

Model: QCD20

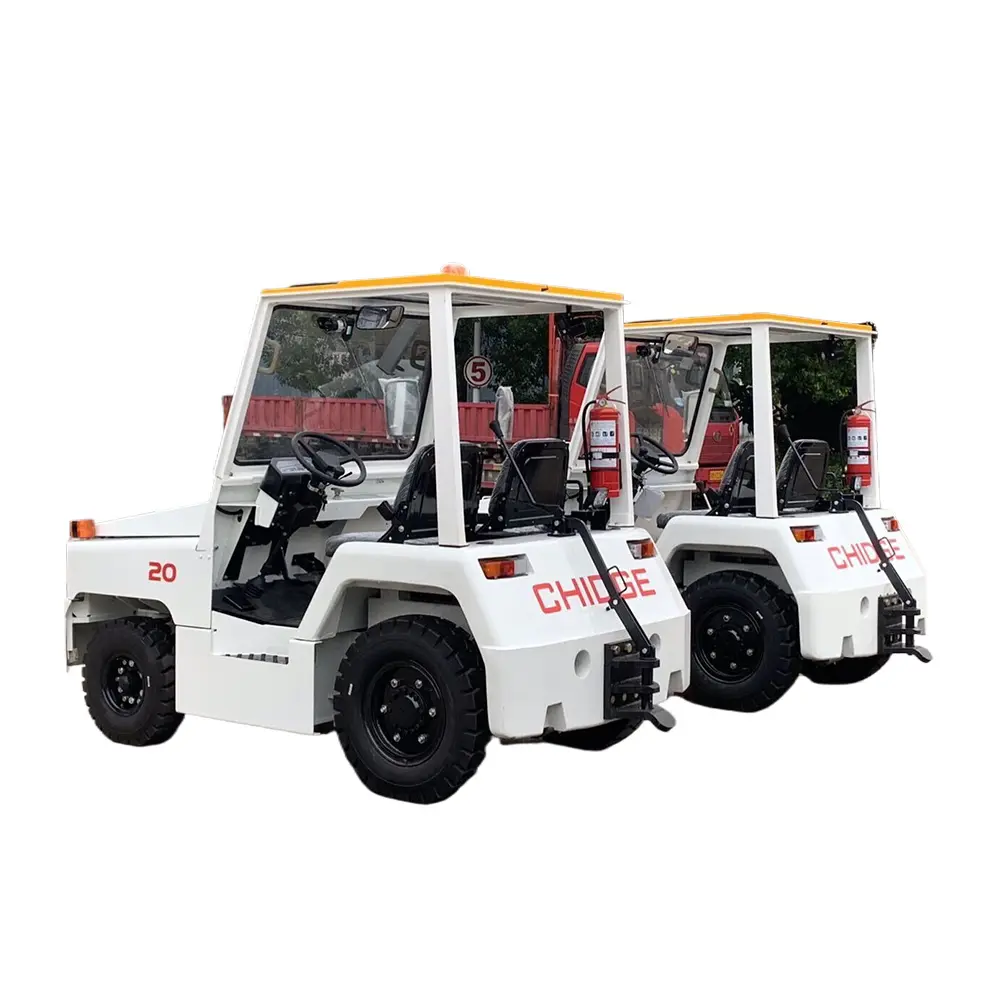

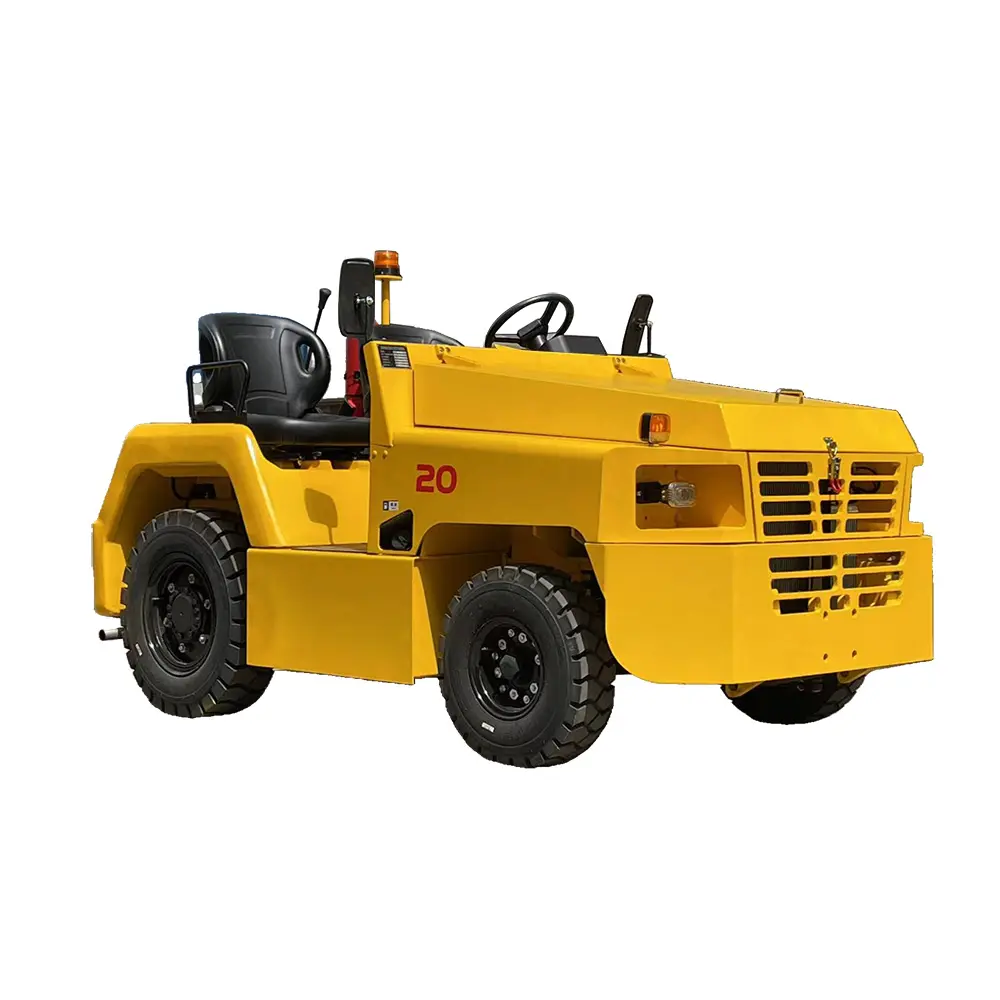

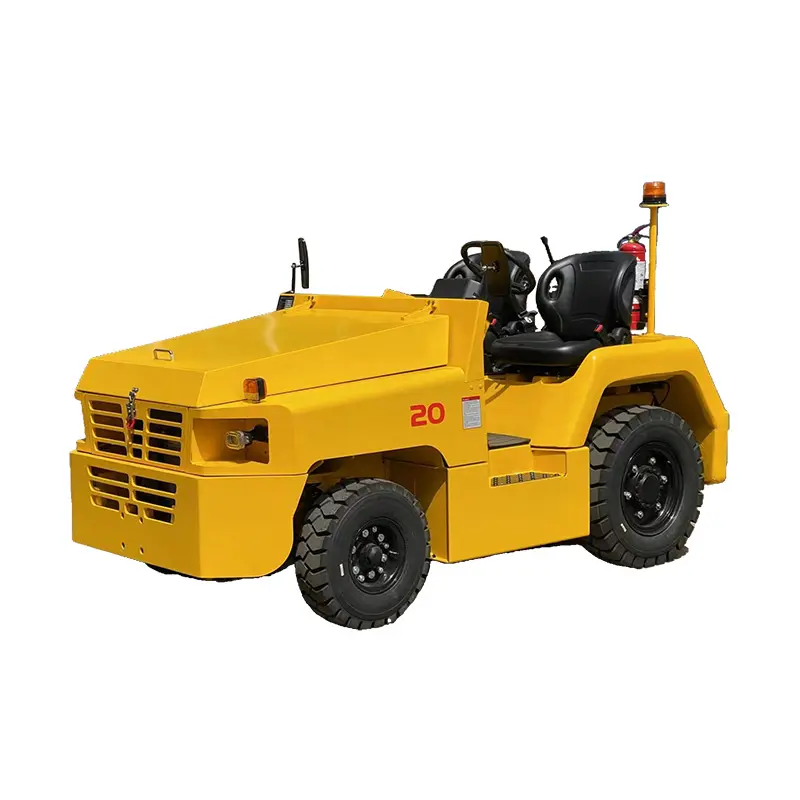

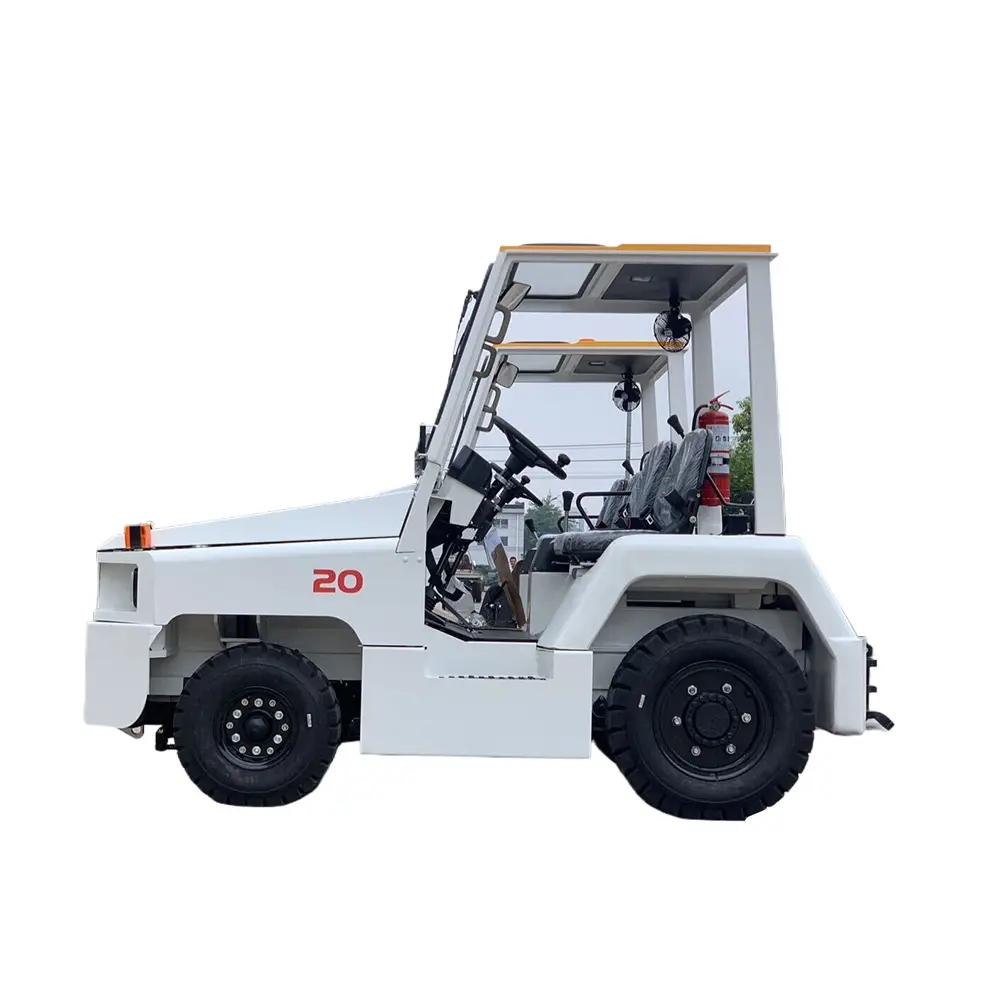

20Ton Diesel Baggage Towing Tractor

Send Inquiry

Product Description

⚙️ QCD20 Diesel Towing Tractor Main Technical Specifications

Parameter Name		Unit	Value (QCD20)
Max. Drawbar Pull		Kg	2000
Max. Towed Weight (at dry even concrete surface)		Kg	25000
Traveling Speed	Forward	Km/h	25
Traveling Speed	Backward	Km/h	22
Max. Gradeability	No load	%	38
Dimensions
Overall Length (with coupler)		mm	3015
Overall Width		mm	1440
Overall Height		mm	1450
Wheelbase		mm	1620
Min. Turning Radius (Outer)		mm	3000
Min. Ground Clearance		mm	165
Engine & Transmission
Engine Model		-	Japan MITSUBISHI S4S
Displacement		cm³	3331
Rated Output		kw/rpm	47/2500
Transmission Type		-	AUTOMATIC with torque converter (JAPAN EXEDY)
Gear Shift		-	2 forward / 1 reverse

🛠️ System Configurations & Components

⚡ Drive Axle & Brake Heavy duty drive axle connecting direct to the propeller shaft. Service dual split system, vacuum boosted drum brakes on both axles.

❄️ Cooling & Fuel Heavy-duty radiator and fan for engine; radiator cooled transmission. Fuel cell capacity of 70L (Diesel).

🕹️ Steering & Suspension Power steering system. Suspension includes front coil springs and rear leaf springs for stability.

📊 Instruments & Accessories Comprehensive cluster: Water temp, oil pressure, hour meter, fuel gauge, neutral shift, and amber beacon.

📋 Technical Details Summary

Electrical System	12V, negative ground; 80A Alternator
Brake System	Service: Dual split system, vacuum boosted; Parking: Manual with position lock
Hitch	Standard "E" hitch (other options available)
Tire Size	Front: 6.50-10-10PR; Rear: 7.00-15-12PR
Options	Closed cabin, heater/AC, additional hitches, and custom requests.

❓ Frequently Asked Questions

1. What is the maximum towing capacity of the QCD20?

The QCD20 diesel towing tractor is capable of towing a maximum weight of 25,000 kg (25 tons) on dry, even concrete surfaces, with a maximum drawbar pull of 2,000 kg.

2. What engine power does this tractor provide?

It is equipped with a Japan-made MITSUBISHI S4S engine, providing a rated output of 47 kw at 2500 rpm and a rated torque of 200 N.m at 1600 rpm.

3. Does the QCD20 feature an automatic or manual transmission?

The vehicle features a Japan EXEDY automatic transmission with a torque converter, supporting 2 forward gears and 1 reverse gear for smooth operation.

4. What type of braking system is used for safety?

It utilizes a dual split, vacuum-boosted system with drum brakes on both the front and rear axles, along with a manual parking brake featuring a position lock.

5. Is the steering system powered?

Yes, the tractor comes standard with a full power steering system to ensure ease of maneuverability in tight airport or industrial environments.

6. Can the cabin be customized for different weather conditions?

Yes, options are available for a fully closed cabin or simple cabin, which can be further equipped with heaters or air conditioning based on the operating environment.
