Custom CDT300 aircraft towing tractor Supplier, Factories

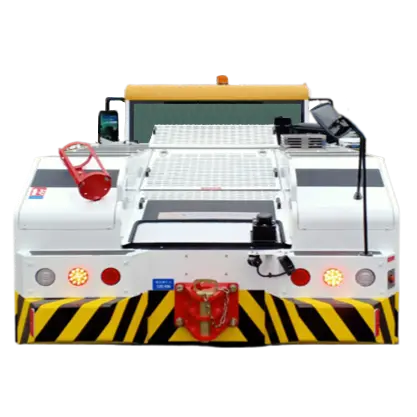

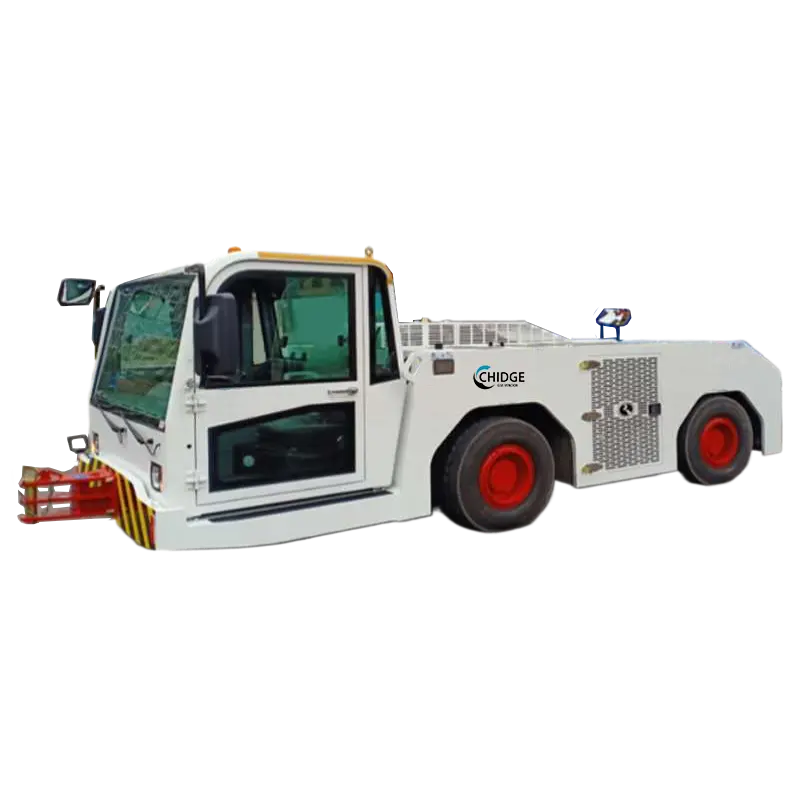

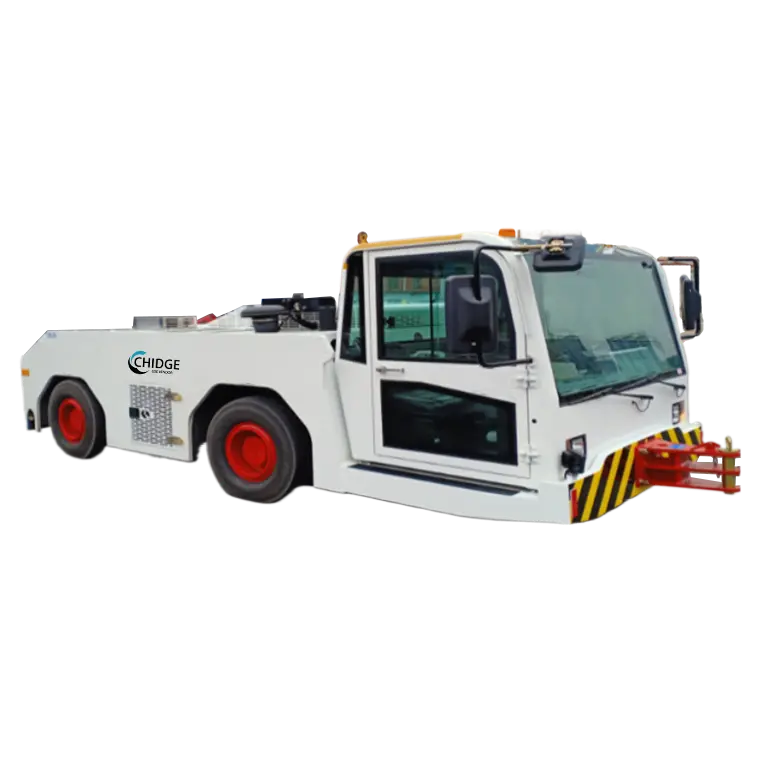

The CD-T300 aircraft tow tractor is a light aircraft tractor designed and developed by Shanghai Chidge Industry Co., Ltd. The superior performance of the tow tractor includes :

➢ Four wheel drive.

➢ Four wheel hydraulic steering.

➢ Four wheel hydraulic braking.

➢ Three Steering selection of modes: (front wheel steering, four wheel coordinated steering, and Crab wheel steering).

The maximum traction force is 210kN, which can push or drag A318-100, A319-100, A320-200, A320-214, B727-100, B737-300, B737-400, B737-500, B737-600, B737-700, B737-800, MD-81, MD-87, MD-82, MD-88, MD-83, MD-90, Fokker-50, Fokker-100,DC9-10, DC9-30, DC9-40, DC9-50, A24, A26, A28, EMB145, EMB190,MA60,A321-100, A300-600, A310-300, B727-200, B737-900, DC8-32, A330-200, A330-300, A340-200, A340-300, B757-200, B757-300, B767-200, B767-200ER, B767-300, B767-400, B777-200, B787-3, B787-8, B787-9, MD-11, DC10-10, DC10-30, DC10-40, A22 Light aircraft with a maximum take off weight of 320 tons or less.

Send Inquiry

Product Description

⚙️ 210KN Max. Traction Value

⚖️ 320T Max. Towing Capacity

🚀 25 Km/h Max. Vehicle Speed

📐 5000mm Min. Turning Radius

Main Technical Parameters

Max. Traction Value	210KN
Max. Towing capacity	320T
Gross weight	27T
Overall Dimensions
Length (without towing assembly)	6450mm
Length (With towing assembly)	7265mm
Width (with rear view mirror)	2600mm
Height	2350mm
Wheelbase	2750mm
Ground Clearance	200mm
Turning Radius	8500mm (two wheels) , 5000mm (four wheels)
Max. Vehicle Speed	25 Km/h
Drive method	hydraulically mechanical transmission, double axle four-wheel driving.
Braking	hydraulically, two-way, accumulator pressure maintaining

Frequently Asked Questions

What is the maximum towing capacity of this vehicle?

The vehicle is designed for heavy-duty operations with a maximum towing capacity of 320T and a maximum traction value of 210KN.

What type of drive system does it use?

It features a hydraulically mechanical transmission with double axle four-wheel driving, ensuring stable power distribution and control.

How maneuverable is the vehicle in tight spaces?

The vehicle offers excellent maneuverability with a dual-mode turning radius: 8500mm using two-wheel steering and a compact 5000mm using four-wheel steering.

What are the safety features for the braking system?

The braking system is hydraulic and two-way, utilizing accumulator pressure maintaining technology to ensure consistent and reliable stopping power.

What is the maximum travel speed and ground clearance?

The vehicle can reach a maximum speed of 25 Km/h and has a ground clearance of 200mm, allowing for efficient movement across various industrial surfaces.
