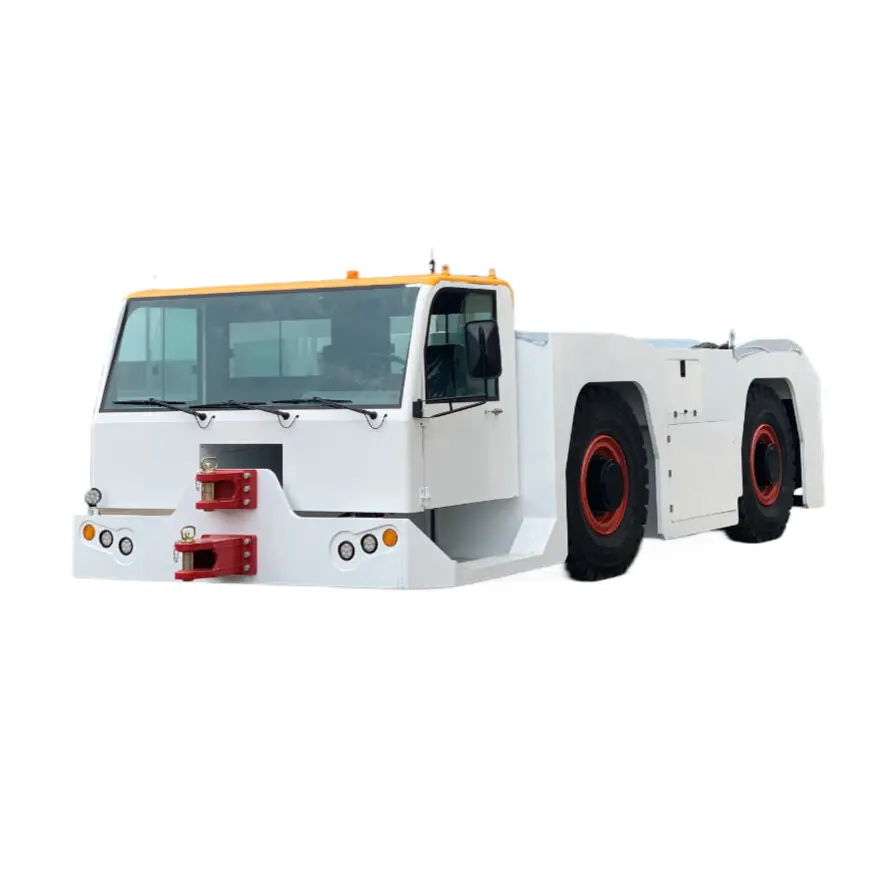

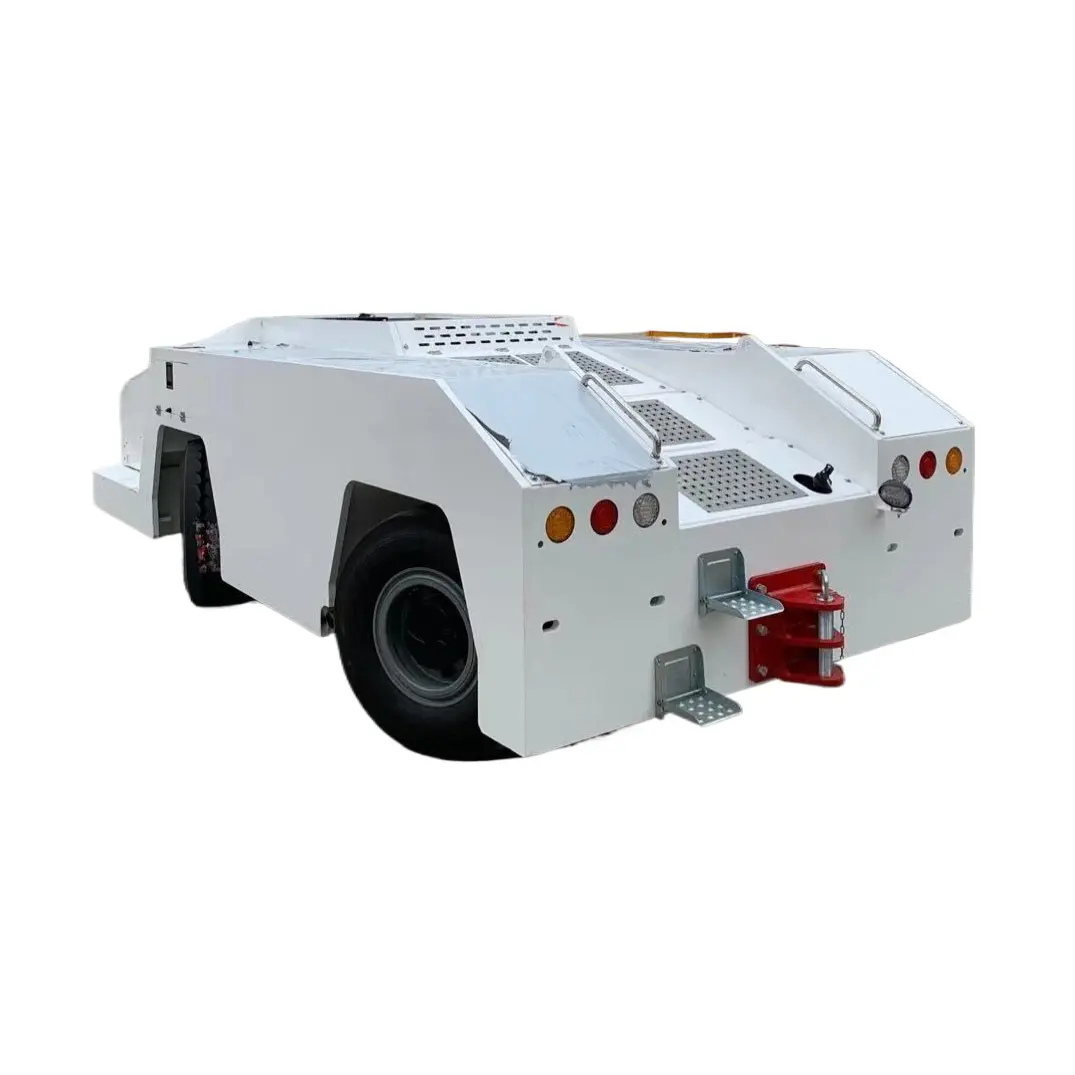

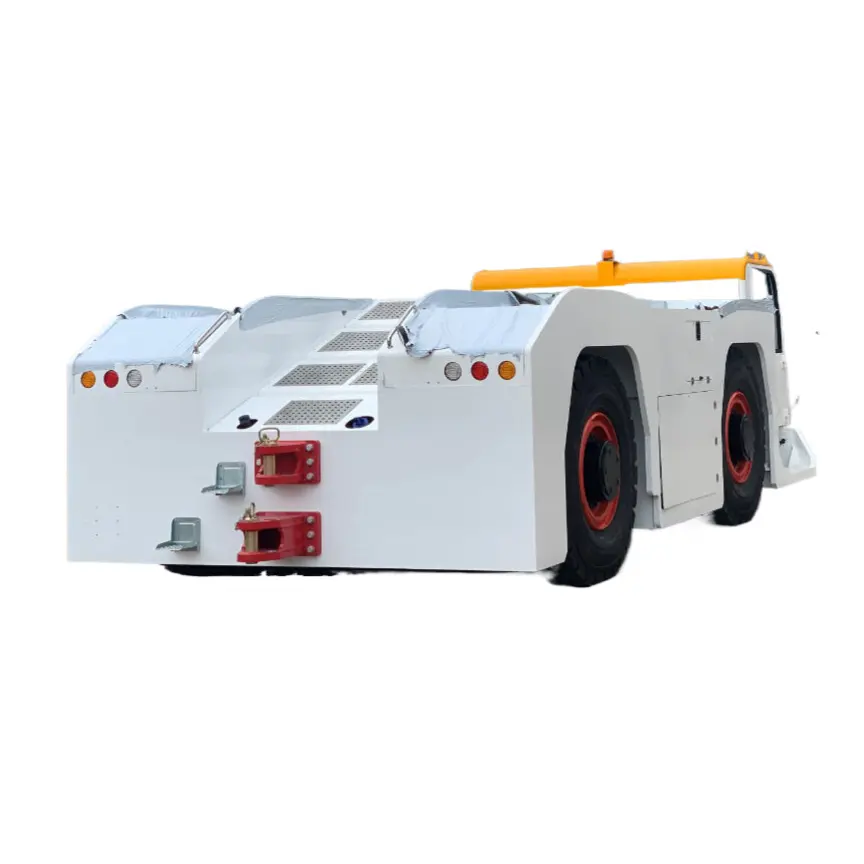

Custom CD-T150 Aircraft Towing Tractor Manufacturer, Manufacturers

CHIDGE model CD-T150 is a kind of up-to-date developed type tow tractor with light capacity of towing the narrow body aircrafts as push back based on absorption of the similar equipment from local and overseas markets. The equipment has the features as below:

➢ Four wheel drive.

➢ Four wheel hydraulic steering.

➢ Four wheel hydraulic braking.

➢ Three Steering selection of modes: (front wheel steering, four wheel coordinated steering, and Crab wheel steering).

The complete equipment is tight constructed with low Centre of gravity and low height of total shape. The maximum towing capacity can be 150TON that makes it is able to provide towing service for the aircrafts such as B757, B737, B727, B717, A320, MD-90, MD82, TU154 and other narrow body or small size aircrafts.

Product Description

Main Technical Parameters

⚙️ 120KN Max. Traction Value
⚖️ 160T Max. Towing Capacity
🚛 15T Gross Weight
25 Km/h Max. Vehicle Speed
Max. Traction Value 120KN
Max. Towing capacity 160T
Gross weight 15T
Length (without towing assembly) 4800mm
Length (with towing assembly) 5360mm
Width (with rear view mirror) 2100mm
Height 2020mm
Wheelbase 2150mm
Ground Clearance 200mm
Turning Radius 5800mm (two wheel), 3400mm (four wheel)
Max. Vehicle Speed 25 Km/h
Drive method Hydraulically mechanical transmission, double axle four-wheel driving.
Braking Hydraulically, two-way, accumulator pressure maintaining.

Frequently Asked Questions

What is the maximum towing capacity of this vehicle?
The vehicle is designed for heavy-duty operations with a maximum towing capacity of 160T and a traction value of 120KN.
How maneuverable is the tractor in tight spaces?
It offers excellent maneuverability with a four-wheel turning radius of just 3400mm (5800mm for two-wheel steering).
What type of transmission system does it use?
The tractor utilizes a hydraulically mechanical transmission system with double axle four-wheel driving for optimal power distribution.
Is it suitable for rough ground conditions?
Yes, with a ground clearance of 200mm and four-wheel drive, it can handle various ground conditions effectively.
What are the safety features of the braking system?
The vehicle is equipped with a two-way hydraulic braking system that includes accumulator pressure maintaining for enhanced safety and reliability.
What is the overall height of the tractor?
The vehicle has a compact profile with an overall height of 2020mm, allowing it to operate under various height-restricted environments.
