China CD-SP80 Catering Truck for A380 Suppliers, Factory

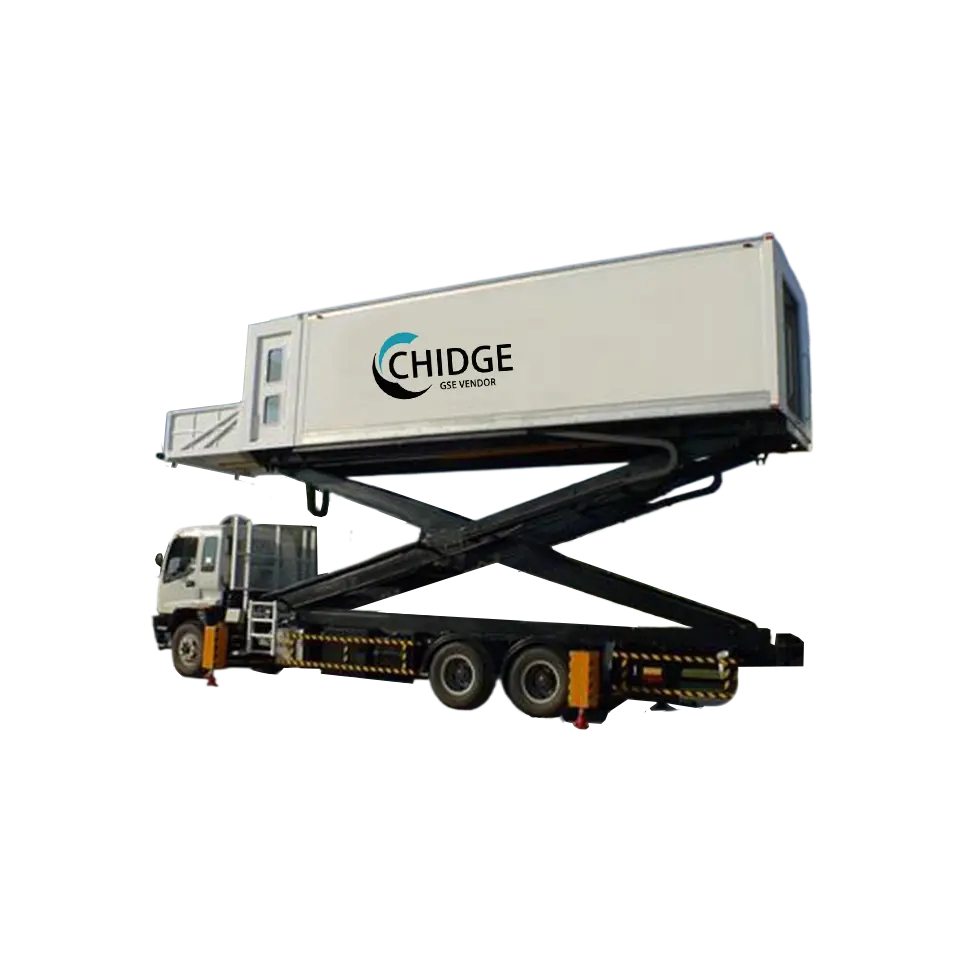

The CD-SP80 catering truck for A380 mainly consists of the truck chassis, the stabilizing device, the lifting device and the aircraft platform.

Send Inquiry

Product Description

Main Technical Parameters

Chassis	HOWO
Overall dimension (L×W×H) (mm)	11900×2500×3900
Drive type	6×4
Maximum weight (kg)	26000
Curb weight (kg)	22900
Number of front passengers	3
Load (kg)	3100
Maximum allowable axle load of front axle (kg)	2×13000
Wheel base (mm)	5775+1400
Front/rear tread (mm)	2035/1860
Front/rear suspension (mm)	1430/3295
Maximum speed (km/h)	60
Minimal stable speed (1st gear) (km/h)	3.5
Maximum climbing slope (%)	56
Min turning diameter (m)	24
Braking distance (m)	≤9.5
Approach angle (°)	16
Departure angle (°)	10
Minimum ground clearance (mm)	205

❓ Frequently Asked Questions

Q: What type of chassis is used for this vehicle? A: This vehicle is built on a high-performance HOWO chassis, known for its durability and reliability in heavy-duty applications.

Q: What is the climbing capability of this model? A: The vehicle features a maximum climbing slope of 56%, making it suitable for challenging terrains and steep gradients.

Q: What are the dimensions and load capacity? A: The overall dimensions are 11900×2500×3900 mm, with a maximum weight capacity of 26,000 kg and a load capacity of 3,100 kg.

Q: What is the drive configuration and speed? A: It utilizes a 6×4 drive type, offering a maximum speed of 60 km/h and a minimal stable speed of 3.5 km/h in 1st gear.

Q: How much space is required for turning? A: The minimum turning diameter for this vehicle is 24 meters, ensuring manageable maneuverability for its size.

Q: What are the safety braking specifications? A: The vehicle is designed with a braking distance of ≤9.5 meters, providing reliable stopping power under standard operating conditions.
