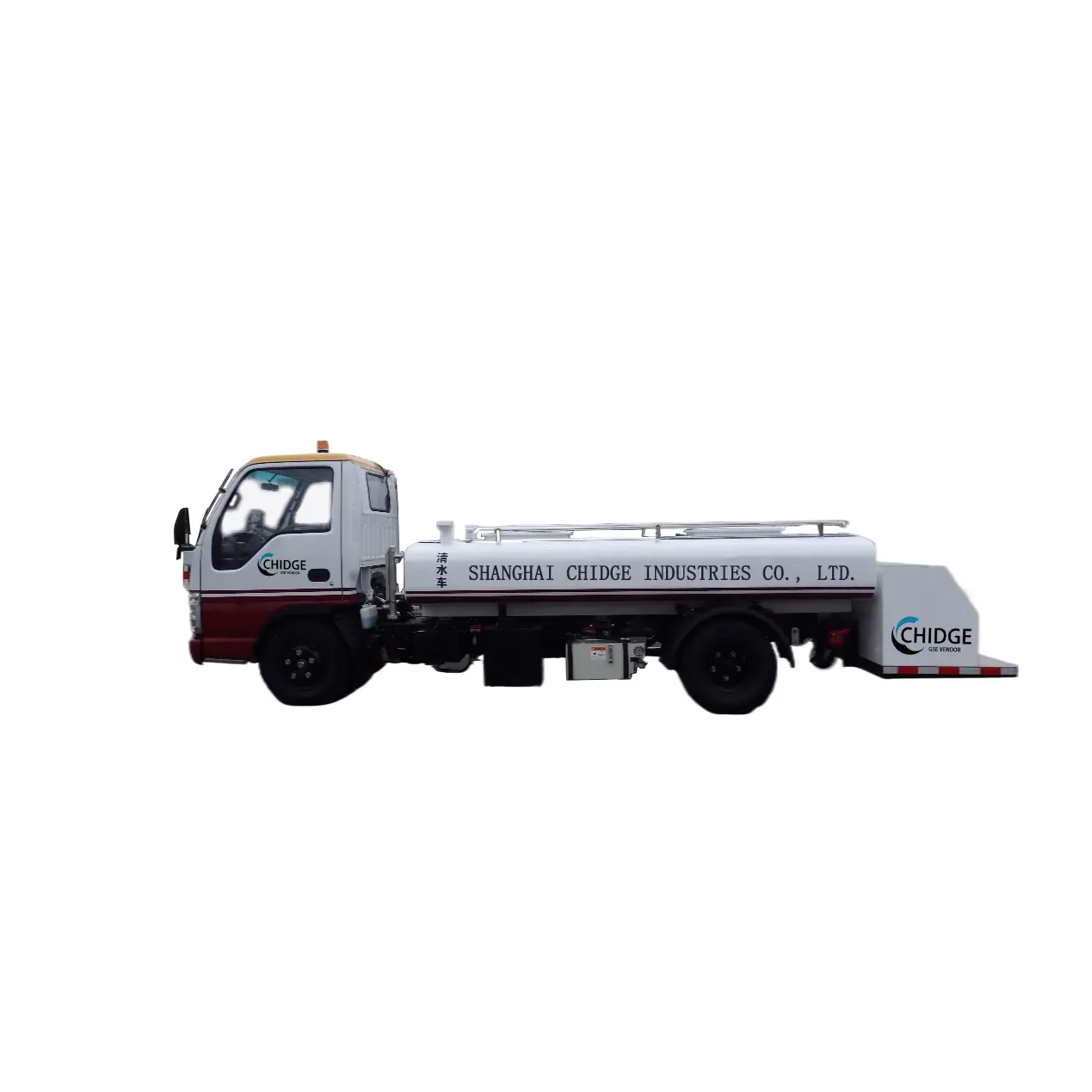

CD5060DQS Aircraft Potable Water Truck

The CD5060DQS aircraft clean water truck is specialized airport equipment designed to provide drinking water services for aircraft. Built on a JMC or Isuzu chassis, this vehicle boasts excellent mobility, advanced technology, a rational structure, and stable performance, making it suitable for use with a variety of aircraft models, including the A300, A318, A319, A320, A321, B737, B747, B757, B767, B777 and others.

Send Inquiry

Product Description

Main structure and configuration

CD5050GQS portable water truck is made of chassis, water tank, water supply system, hydraulic system, and Electrical system.

Chassis

QL10503HARY car chassis. The engine is a 4JB1CN diesel engine (National Emission Standard V), equipped with air conditioning and hydraulic power steering in the driver's cabin.

Hydraulic System

The hydraulic system consists of a power take-off, power take-off control mechanism, hydraulic oil tank, gear oil pump, hydraulic motor, solenoid valve, etc.
The hydraulic oil tank is placed on the outer side of the longitudinal beam for easy replacement of the filter element.
The solenoid valve is placed on the fuel tank for easy maintenance.

Electrical System

The electrical system is powered by 12V DC and consists of an electrical control cabinet, battery, alarm lights, lighting fixtures, alarm switches, etc.

Water Supply System

Composed of water pump, water pipe box, pipeline and accessories.

Water pump

Installed at the front end of the box, directly connected to the outlet of the water tank. Driven by an oil motor with heating and insulation measures.
Made of stainless steel with mechanical seals. A drain plug is installed at the lowest point of the water pump.

Pipeline & Joint

Composed of stainless steel valves, stainless steel pipes, food-grade rubber cloth clip hoses (25mm ID), and fittings.
Equipped with a safety pressure regulating valve and pressure gauge in the cab for easy operational tracking.
Water filling joint complies with ISO450, conveniently stored in the rear box.

Clean Water Tank

The water tank body is processed by molding technology and welded by argon arc welding; the box is elliptical in shape, and the internal welding is smooth and free of burrs.
The water tank adopts electric heating, and the box body is insulated.
The front, rear, left, and right side panels of the tank body adopt a large curved structure, forming a curved inner cavity, which makes the entire tank body less prone to foreign objects and easier to clean.
The bottom of the box is designed and installed with an inclined drainage channel, which has a leading drainage effect.
There are two stainless steel anti vibration plates inside the clean water tank to prevent shaking during vehicle operation after adding water to the tank. The water tank is fixed to the car beam using 6 floating supports, reducing the vibration of the box during driving.
At the top of the clean water tank, there are two water inlet ports with a diameter of 100mm and equipped with a filter screen. The corresponding cover plate has good sealing measures and a simple locking device.
The upper part of the clean water tank is equipped with a ventilation port with a filter to prevent vacuum phenomenon in the tank when the water pump absorbs water.
The upper part of the clean water tank is equipped with an inspection hole for easy cleaning, disinfection, and inspection by maintenance personnel. The corresponding cover plate has good sealing measures and a simple locking device to prevent rainwater and dust from entering the water tank.
A connecting rod floating ball level gauge is installed inside the clear water tank to facilitate anti freezing.
The bottom of the clean water tank is made into a circular arc shape and equipped with a sedimentation tank. The bottom is equipped with a stainless steel drainage ball valve, which facilitates the deposition and discharge of impurities in the water.
The interior of the water tank has undergone welding spot removal and passivation treatment, which will not cause rust after long-term use. The exterior of the water tank is sprayed with automotive specific paint as a whole.

Frequently Asked Questions

What are the main components of the CD5050GQS portable water truck?

The water truck mainly consists of a chassis, clean water tank, water supply system, hydraulic system, and an electrical system.

What chassis and engine configurations are used?

It features a QL10503HARY car chassis powered by a 4JB1CN diesel engine (National Emission Standard V). The driver's cabin is equipped with air conditioning and hydraulic power steering.

How is the clean water tank designed to prevent freezing and rust?

The water tank is protected against freezing via electric heating and insulation, accompanied by a floating ball level gauge. Rust prevention is ensured through interior welding spot removal, passivation treatment, and an exterior coat of specialized automotive paint.

What are the unique anti-vibration features of the clean water tank?

The tank contains two stainless steel anti-vibration plates to mitigate internal liquid movement. Furthermore, the tank is secured to the vehicle's beam via six floating supports to minimize vibration while driving.

What safety mechanisms are built into the water supply pipeline?

A stainless steel safety pressure regulating valve is installed to protect the aircraft water tank from damage, and a pipeline pressure gauge is placed directly inside the cab for convenient real-time monitoring by the operator.

What are the electrical system specifications?

The system operates on a 12V DC power source. It integrates an electrical control cabinet, battery, alarms, switches, and targeted lighting fixtures for high visibility and reliable control.
