Main Structure and Configuration

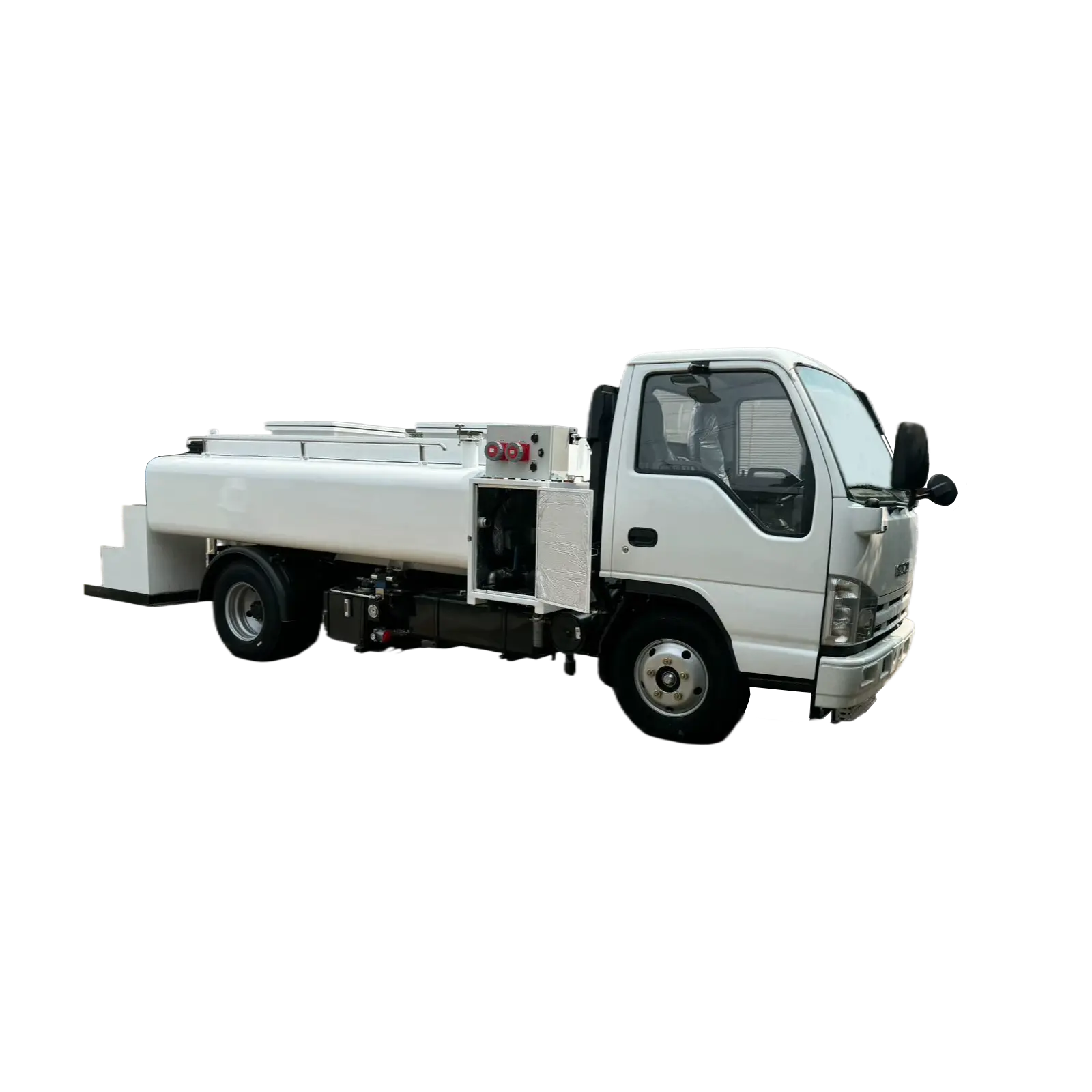

The CD5050GQS portable water truck is composed of a high-performance chassis, a specialized water tank, an efficient water supply system, a hydraulic system, and a centralized electrical system.
Chassis

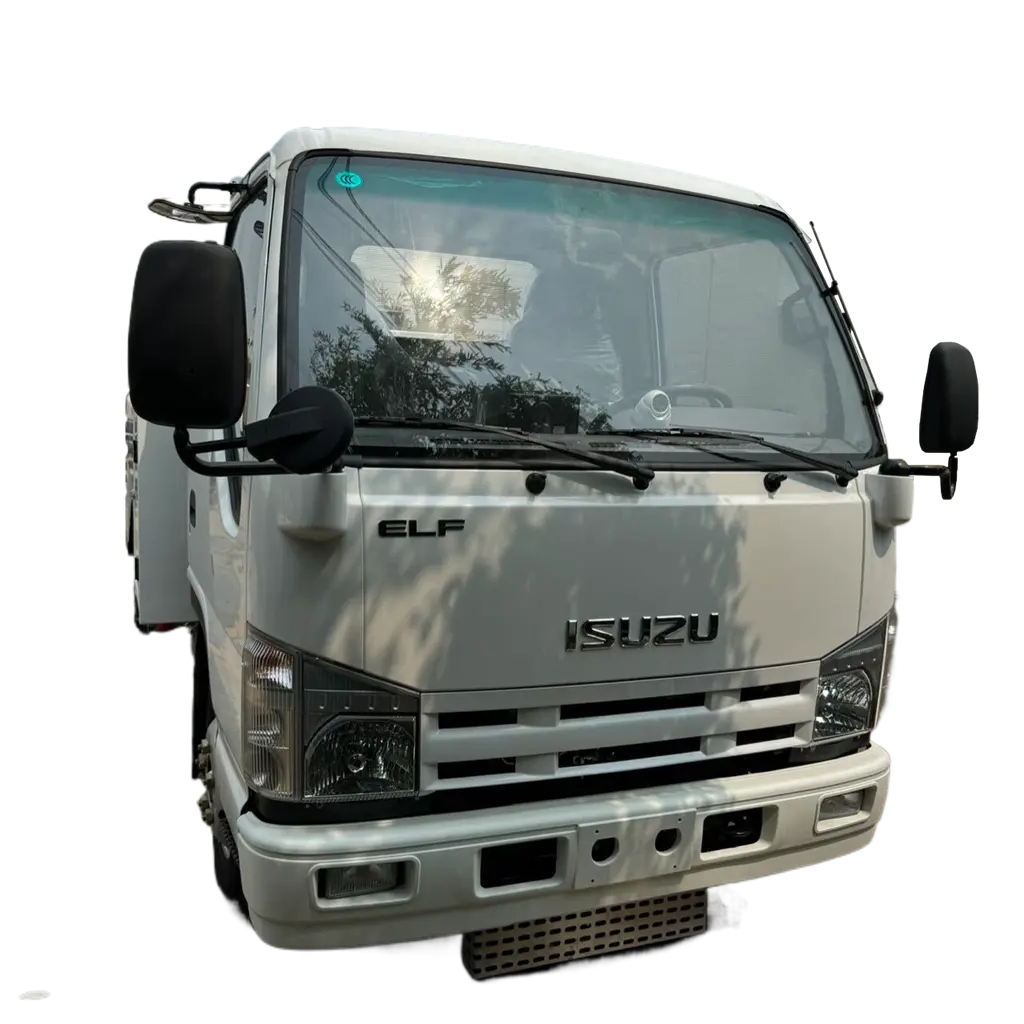

Utilizes the Qingling QL10503HARY car chassis. The vehicle is powered by a 4JB1CN diesel engine (meeting National Emission Standard V), and the driver's cabin is fully equipped with air conditioning and hydraulic power steering for operator comfort and ease of maneuverability.
Clean Water Tank
The water tank body is manufactured using advanced molding technology and precision argon arc welding; the elliptical shape and smooth internal welding prevent debris accumulation.
Equipped with an integrated electric heating system and high-quality insulation to maintain water temperature in various climates.
Features a large curved structure on front, rear, and side panels to create a curved inner cavity, preventing foreign object entrapment and simplifying cleaning.
The tank floor includes an inclined drainage channel for superior leading drainage performance.
Includes two internal stainless steel anti-vibration plates to stabilize water movement during transit, secured to the car beam with 6 floating supports to minimize vibration.
Top-mounted dual water inlet ports (100mm diameter) with filter screens, featuring secure sealing and simple locking mechanisms.
Equipped with a filtered ventilation port to prevent vacuum formation during water pump operation.
Integrated inspection hole for easy maintenance, disinfection, and inspection, protected by a weather-proof locking cover.
Internal connecting rod floating ball level gauge for accurate monitoring and anti-freezing management.
The circular arc bottom includes a sedimentation tank and a stainless steel drainage ball valve for efficient impurity discharge.
Passivated interior prevents rust over long-term use, while the exterior features professional automotive-grade paint.
Water Supply System
Composed of a specialized water pump, protective water pipe box, reinforced pipelines, and high-quality accessories.
Water Pump: Front-mounted stainless steel centrifugal pump driven by an oil motor, including full heating and insulation measures with a mechanical seal and drain plug.
Pipeline: Constructed from stainless steel valves and pipes. Includes a safety pressure regulating valve to protect aircraft tanks and a cab-mounted pressure gauge for real-time monitoring.
Hose: Food-grade rubber cloth clip tube (25mm inner diameter) with customizable length.
Filling Joint: Complies with ISO450 standards, stored in a secure rear storage box for convenience and reliability.
Hydraulic System
Integrated system including a power take-off (PTO), control mechanism, hydraulic oil tank, gear oil pump, hydraulic motor, and solenoid valve.
The hydraulic oil tank is positioned on the outer side of the longitudinal beam for rapid filter element replacement and maintenance.
Electrical System
Powered by a reliable 12V DC system, including a centralized electrical control cabinet, heavy-duty battery, emergency alarm lights, high-visibility lighting fixtures, and alarm switches.
Frequently Asked Questions
What engine type powers the CD5050GQS water truck?
The truck is powered by a 4JB1CN diesel engine that complies with National Emission Standard V.
How does the water tank prevent rust and contamination?
The interior undergoes welding spot removal and passivation treatment to prevent rust. Additionally, it uses food-grade components and a curved inner design for easy cleaning.
Is the water supply system safe for aircraft servicing?
Yes, the system includes a stainless steel safety pressure regulating valve specifically designed to ensure that the aircraft's water tank is not damaged during the filling process.
Can the vehicle operate in freezing temperatures?
Yes, the water tank is equipped with electric heating and insulation, and the water pump also features specialized heating and insulation measures.
What standard does the water filling joint follow?
The water filling joint is fully compliant with the ISO450 international standard for aviation ground equipment.
How is the water level monitored?
A connecting rod floating ball level gauge is installed inside the tank to provide accurate water level readings and assist in anti-freezing management.
