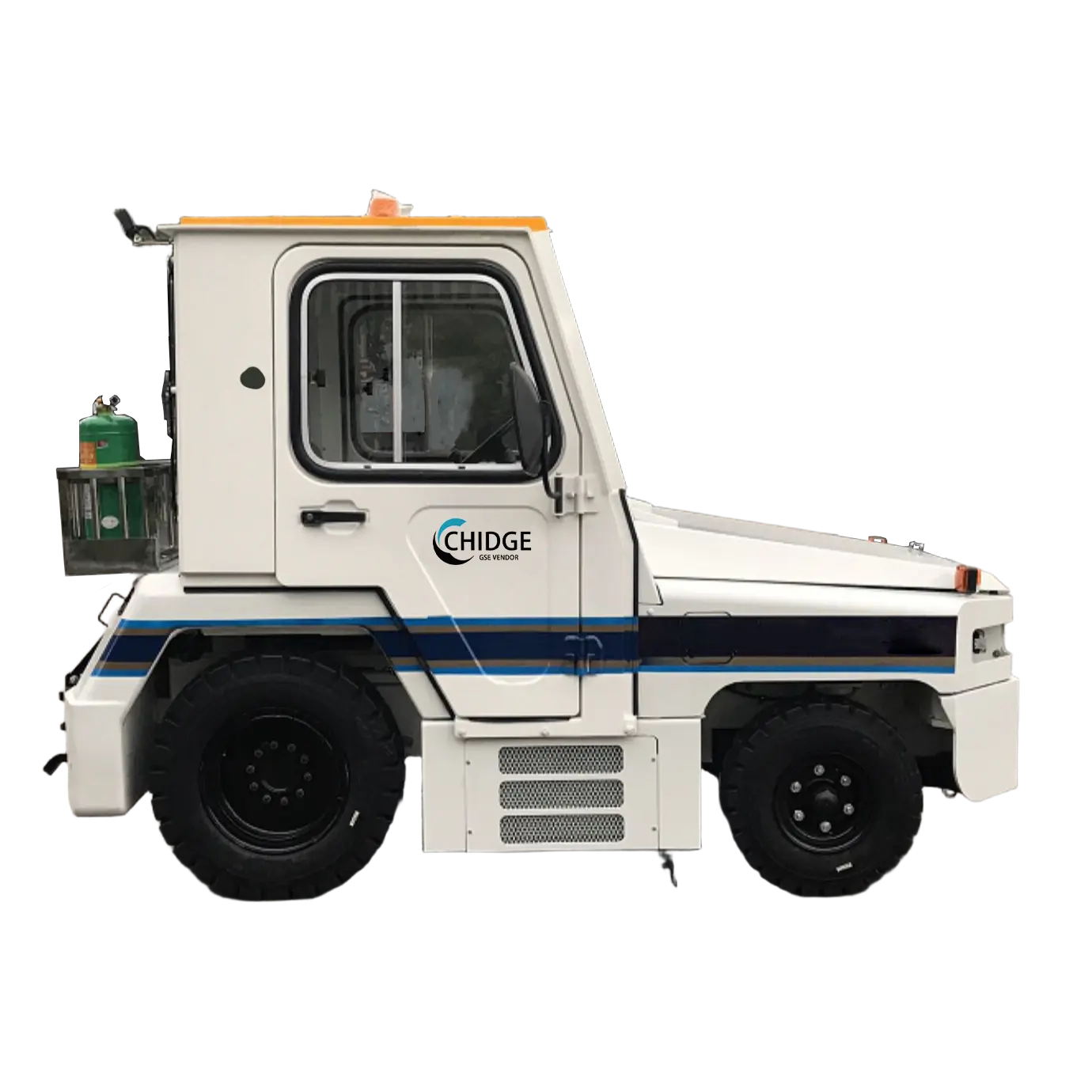

Custom 20Ton Electric Baggage Towing Tractor Manufacturers, Suppliers

Model: ECD20
iBS LI-ION BATTERY 96V/560AH from "ORIGO" (power 53.7kwh)
with battery heating
China "HUA CHENG" drive axle integral with driving motor
CIHNA AC PMSM "WANNAN" driving motor with RATED POWER :30KW
USA "CURTIS" controller for drive motor
110V 5kw ON-BOARD CHARGER
Front drum +rear disc Dual circuit braking system adopts vacuum assisted
Hydrostatic steering
Inching command with emergency stop located at rear left hand side
Front hitch 1-level and Rear hitch 2-levels with irremovable & lockable pin
Suspended seat for driver and passenger with safety belt
Dashboard with all information displayed (working hours and battery power level indication etc) and with Diagnostic & troubleshooting function

Send Inquiry

Product Description

ECD20 AC Electric Baggage Towing Tractor Main Specifications

Model		ECD20
Max. Drawbar pull	KN	20
Max. towed weight	Kg	20000
Max. speed (No-load)	Km/h	26
Max. speed (Full-load)	Km/h	12
Min. turning radius	Mm	3000
Max. gradeability with no load	%	30
Vehicle self-weight (With-battery)	Kg	3920
Front axle load	Kg	1260
Rear axle Load	Kg	2670
Driving motor	Kw	21.5
Controller		CURTIS
Steering system		Hydraulic power
Overall length (with towing hitch)	Mm	3160
Overall width	Mm	1440
Overall height with canopy	Mm	2000
Wheelbase	Mm	1600
Tread (Front/Rear)	Mm	1260 / 1190
Min. ground clearance	Mm	160
Battery Type	LFP	96V / 560AH
Tire size (Front)		6.50-10-10PR
Tire size (Rear)		7.5-15-12PR

Frequently Asked Questions

What is the maximum towing capacity of the ECD20 tractor?

The ECD20 AC electric baggage towing tractor is capable of towing a maximum weight of 20,000 kg (20 tons) with a maximum drawbar pull of 20 KN.

What kind of battery technology is used in this vehicle?

This tractor utilizes advanced LFP (Lithium Iron Phosphate) battery technology with a specification of 96V/560AH, providing reliable and efficient power for industrial operations.

How fast can the ECD20 travel under full load?

When fully loaded, the tractor can reach a maximum speed of 12 km/h. Under no-load conditions, it can travel up to 26 km/h.

Is the steering system easy to operate?

Yes, the ECD20 is equipped with a hydraulic power steering system, ensuring smooth and effortless maneuverability even when handling heavy loads in tight spaces.

What are the gradeability and turning capabilities?

The vehicle features a 30% maximum gradeability (no load) and a compact minimum turning radius of 3000 mm, making it ideal for various airport and warehouse environments.

Which controller system is integrated into the ECD20?

The tractor uses a high-performance CURTIS controller, which is widely recognized for its precision and reliability in electric vehicle management.
